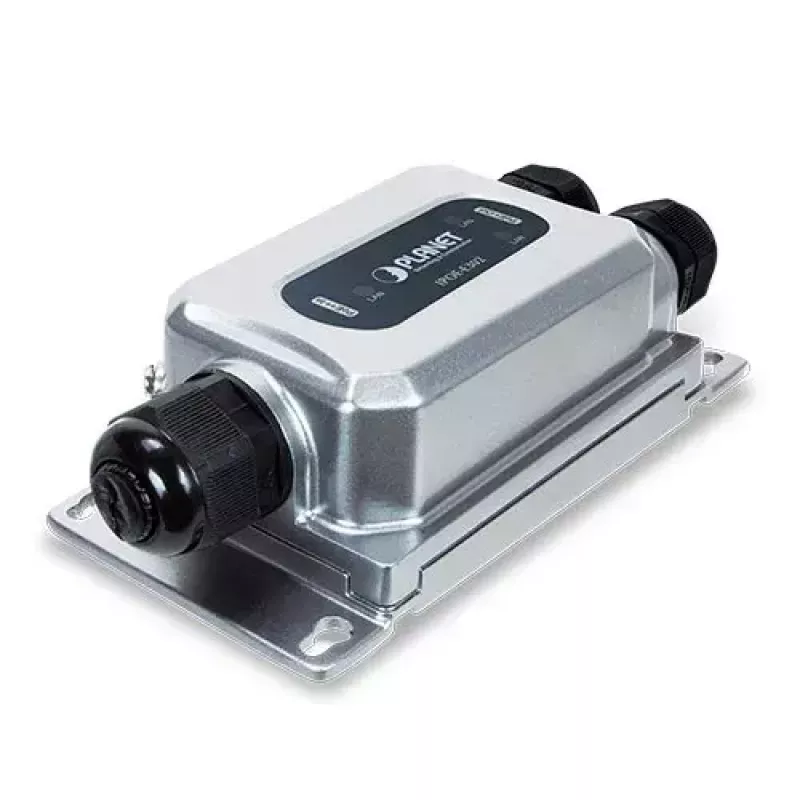

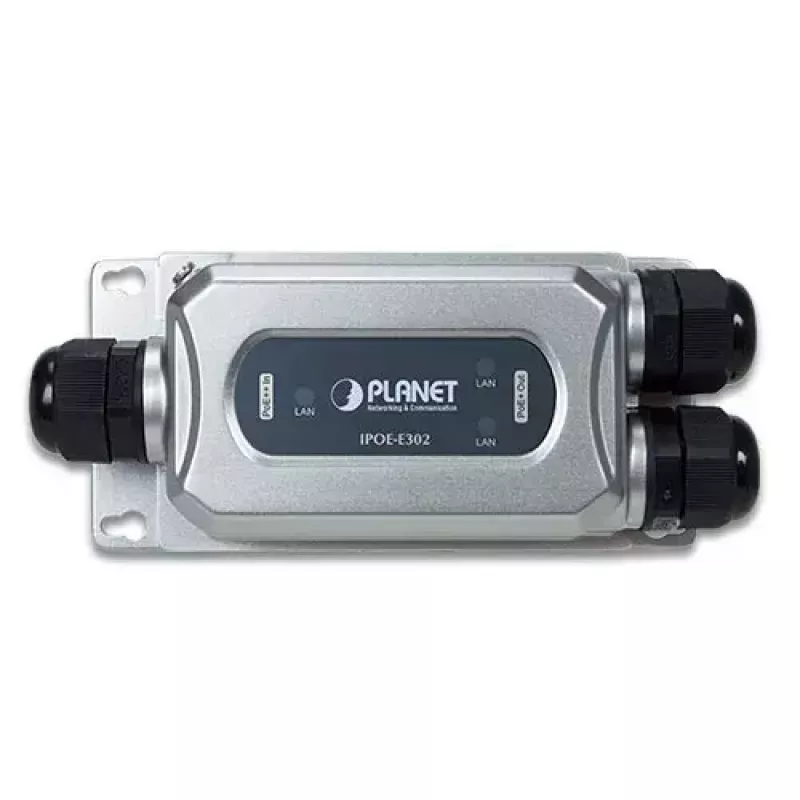

Network transmitter PLANET IPOE-E302

The PLANET IPOE-E302 is an outdoor-rated network transmitter that extends Gigabit Ethernet data and PoE power beyond the standard 100 m limit. Housed in an IP67 aluminum case, this 1-port 802.3bt PoE++ to 2-port 802.3bt/at Gigabit PoE Extender accepts up to 95 W from an 802.3bt PoE++ or PoH input and provides a combined PoE budget of up to 65 W across two output ports. It is intended for point-to-multipoint deployments where adding PoE ports without extra cabling and avoiding external power adapters is required.

Advantages

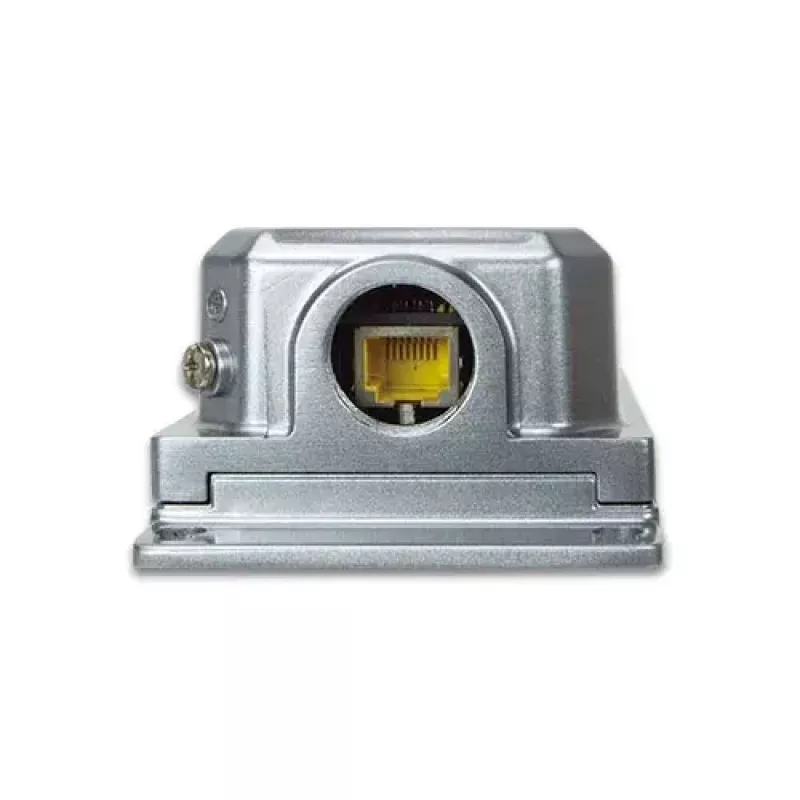

The IPOE-E302 provides weather-proofed RJ45 connectors with shielded plugs and waterproof cable glands to secure reliable outdoor connections while maintaining IP67 protection against dust and water. Its industrial aluminum housing offers electromagnetic immunity and wide operating temperature range from -40 to 75 °C, supporting stable operation in harsh environments. The device supports plug-and-play installation and transmits both Gigabit Ethernet data and PoE power over standard Cat5/5e/6 cables, enabling up to 200 m reach for powered devices.

Suitable for

• Outdoor PoE wireless access points
• Outdoor PoE IP cameras
• Outdoor PoE IP intercoms and door stations
• Point-to-multipoint PoE deployments requiring extended reach

Key specifications

• Model: PLANET IPOE-E302
• Ports: 1× PoE++/PoH input (802.3bt), 2× PoE output (802.3bt/at), 10/100/1000BASE-T
• Maximum input PoE power: up to 95 W
• PoE output budget: up to 65 W (total for two ports)
• Data rate: 10/100/1000 Mbit/s, auto-negotiation, full/half duplex
• Protection rating: IP67 (aluminum housing)
• Operating temperature: -40 to 75 °C
• Dimensions (W×D×H): 150 × 43.8 × 72.9 mm
• Power consumption (max): 97 W
• Indicators: link/activity LEDs

How to use

Install the IPOE-E302 inline between a power source equipment (PSE) — such as an 802.3bt PoE++ switch or PoH source — and downstream powered devices (PD). Connect the PSE to the single "PoE+ In" RJ45 port and connect up to two PoE devices to the two "PoE++ Out" RJ45 ports using Cat5/5e/6 cable. Fit the waterproof cable glands and shielded plugs for outdoor deployments to maintain IP67 protection. The device requires no configuration and begins supplying data and power automatically after connection.

Recommendations

Use Cat5e or Cat6 cabling in good condition, keep cable runs within the extended 200 m design limit per the installation scenario, and ensure the upstream PSE can supply sufficient 802.3bt/PoH power to deliver the required output budget to connected PoE devices.
