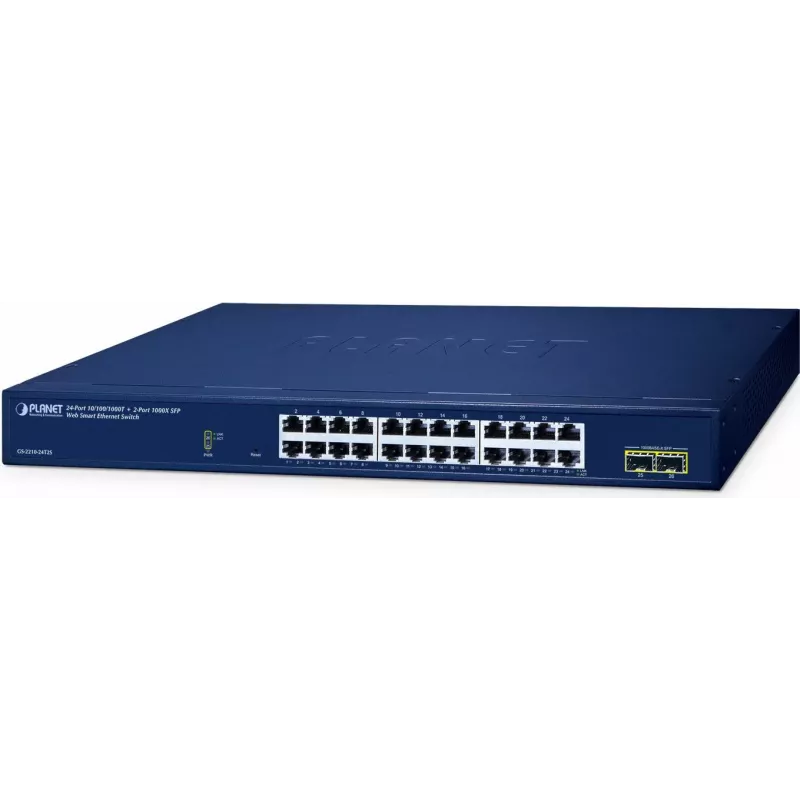

Managed Switch PLANET 24-Port 10/100/1000T + 2-Port L2 Gigabit Ethernet

The PLANET GS-2210-24T2S is a managed Layer 2 Gigabit Ethernet switch with 24 10/100/1000BASE-T ports and 2 Gigabit SFP slots, offering a switching capacity of 52 Gbit/s. Designed for small businesses and enterprises, it supports centralised network management through PLANET's NMS solutions (UNI-NMS and NMSViewerPro), enabling remote device discovery, monitoring and configuration via local or cloud-based management. The switch implements common Layer 2 functions such as 802.1Q VLANs, link aggregation, IGMP snooping and QoS to increase availability and control of business-critical applications.

Advantages

The GS-2210-24T2S integrates with PLANET UNI-NMS and NMSViewerPro to provide centralized and remote management of up to large-scale node deployments, real-time alerts, and mobile app access. Its two SFP slots support both 100BASE-FX and 1000BASE-SX/LX transceivers for long-distance uplinks, and Layer 2 features such as port aggregation, VLAN tagging and IGMP snooping improve network efficiency and resilience. The switch also supports ONVIF device discovery for easy integration with IP surveillance equipment.

Suitable for

• Small and medium enterprise networks requiring centralized management
• Factory or industrial automation systems needing authenticated device control
• IP camera surveillance deployments that use ONVIF cameras
• Data center edge or distribution switch uplinks over fiber

Key specifications

• Model: GS-2210-24T2S (PLANET)
• Ports: 24 x 10/100/1000BASE-T RJ-45; 2 x Gigabit SFP slots
• Switching capacity: 52 Gbit/s
• Layer 2 features: 802.1Q VLAN, link aggregation, IGMP snooping, QoS, LLDP/neighbor discovery
• Management: Web Smart GUI, CLI, UNI-NMS, NMSViewerPro, cloud-based agent support
• Fiber support: 100BASE-FX and 1000BASE-SX/LX SFP transceivers (multi-mode and single-mode distances per module)
• Standards: IEEE 802.3, 802.3ab, 802.3z, 802.1Q, 802.1p, 802.3x
• Weight and color: 2.049 kg, blue
• MPN / EAN: GS-2210-24T2S / 4711605287777

How to use

Install the GS-2210-24T2S in a rack or on a flat surface and connect power and network cables to the RJ-45 ports for copper links or insert compatible SFP modules for fiber uplinks. Access the device using the Web Smart GUI or CLI for initial configuration: set port speeds, create VLANs, configure link aggregation and IGMP snooping, and apply QoS policies as required. To enable remote management, deploy PLANET's NMS agent (NMS-500/NMS-1000V) and link it to UNI-NMS or NMSViewerPro; you can scan the agent QR code with the mobile app to add the device to the cloud-managed platform.

Recommendations

For reliable long-distance connections, select SFP transceivers (multi-mode or single-mode) that match the desired reach and fiber type. When deploying IP cameras, use the ONVIF discovery feature in the switch GUI to add cameras and verify online status, and configure VLANs and QoS to segregate and prioritize surveillance traffic for consistent performance.
