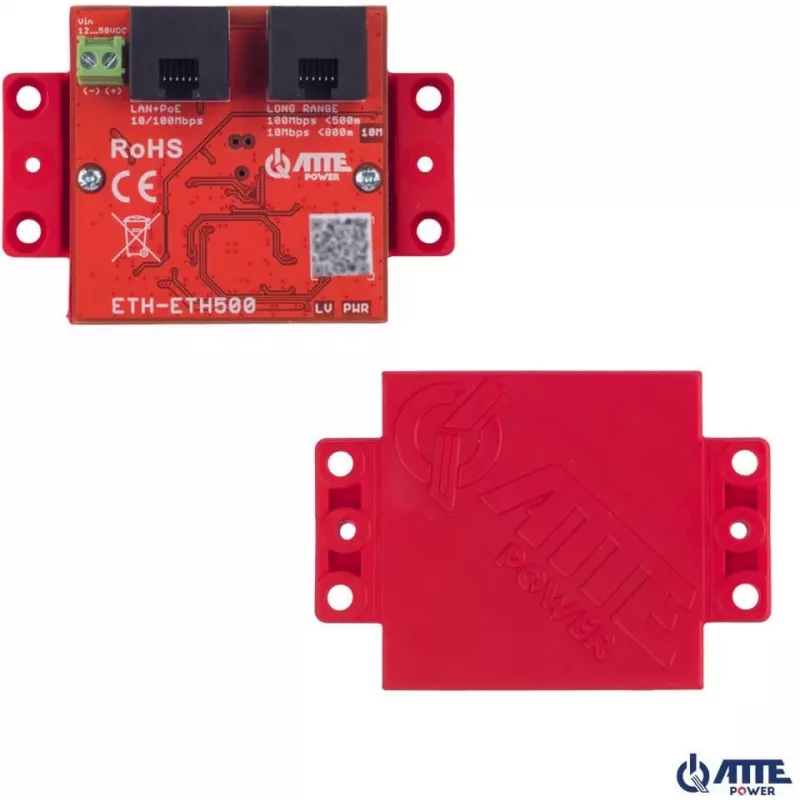

ATTE ETH-ETH500-SET Ethernet over Coax Extender Kit (500m) - 2x Converters

The ATTE ETH-ETH500-SET is a professional Ethernet over Coax extender kit designed to extend Fast Ethernet (100 Mbps) networks up to 500 meters over coaxial cable or 300 meters over UTP. This set includes two converters and two power adapters, providing a complete point-to-point solution for reliable long-distance data transmission.

Advantages

Extends network reach beyond standard Ethernet limits using existing coaxial or UTP cabling. Supports full-duplex transmission for efficient data flow. Metal housing ensures durability in demanding environments. Easy plug-and-play installation with no configuration required.

Suitable for

• Extending network connectivity in industrial, commercial, and residential settings
• Connecting remote IP cameras, access points, or sensors over long distances
• Utilizing existing coaxial cable infrastructure for IP network expansion

Key specifications

• Transmission Technology: Ethernet over Coaxial/UTP
• Max Coaxial Distance: 500 m
• Max UTP Distance: 300 m
• Ethernet Standard: IEEE 802.3, IEEE 802.3u (10/100Base-TX)
• Ethernet Ports: 1x RJ-45 (per unit)
• Line Port Connectors: 1x BNC, 1x 2-pin Terminal Block (per unit)
• Data Transfer Rate: 100 Mbps (Fast Ethernet)
• Power Supply: 12V DC (external power adapter, included)
• Power Consumption: <2 W (per unit)
• Operating Temperature: -10°C to +40°C
• LED Indicators: Power, Link/Activity
• Included Components: 2x ETH-ETH500 Converters, 2x 12V DC Power Adapters
• Housing Material: Metal
• Transmission Mode: Full-duplex
• Connection Type: Point-to-point
• Supported Cable Types: RG-59, RG-6 Coaxial; UTP Cat.5e/6 (single pair)
• ESD Protection: Yes
• Unit Dimensions (L x W x H): 100 x 70 x 25 mm

Recommendations

For optimal performance, use high-quality coaxial cable (RG-59 or RG-6) and ensure proper termination. This extender is ideal for bridging network segments where running new Ethernet cable is impractical.
