Network Cable InLine 32335S RJ45 Cat5e 1m Black

High-quality SFP transceiver module for a fast 2.5 gigabit data connection
Optical LC duplex interface for single-mode fiber optics with 1310nm wavelength
Digital diagnostic monitoring (DDM) for real-time performance control
Hot-pluggable for easy installation and flexible replacement
Operating temperature from 0 °C to 70 °C for reliable performance

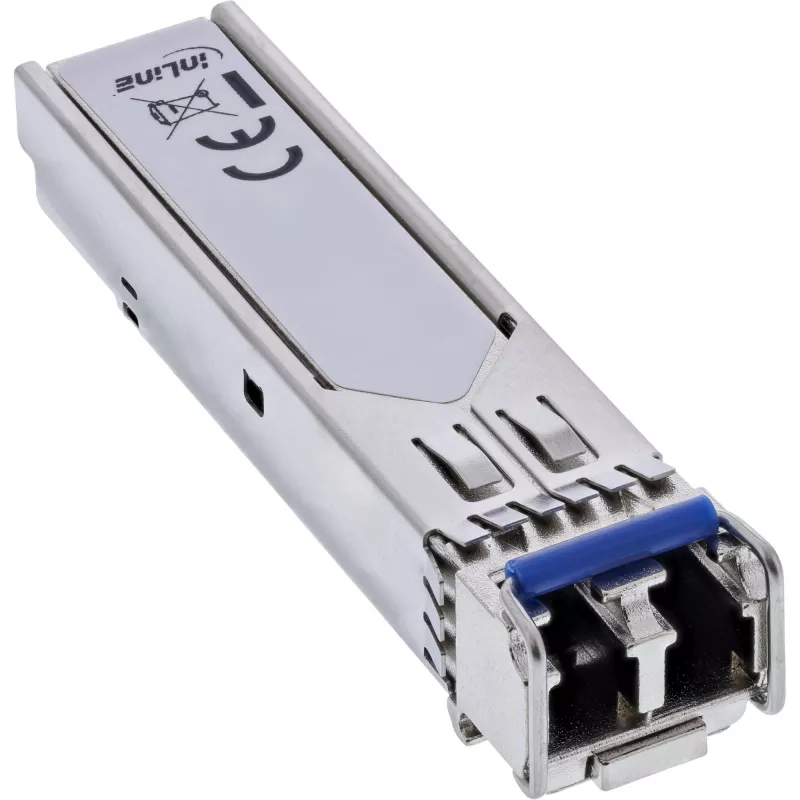

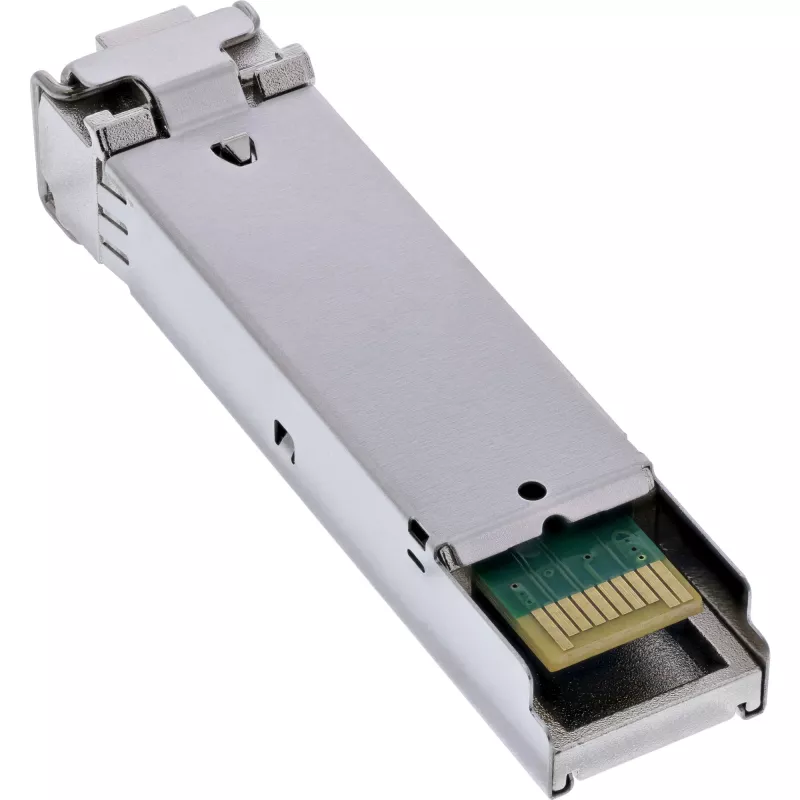

The InLine® SFP module is a reliable solution for setting up and expanding network structures with a transmission rate of 2.5 Gb/s over single-mode fiber optics. With a range of up to 15 kilometers, it is ideal for use in corporate networks, data centers and backbone connections.
This module has an optical LC duplex interface and is fully compatible with standard SFP connectors, allowing easy integration into existing network infrastructures. Digital Diagnostic Monitoring (DDM) allows precise control of performance parameters in real time to ensure network security and efficiency.
Thanks to the hot-pluggable function, the module can be easily replaced or installed without affecting ongoing operations. The robust design ensures reliable performance at an operating temperature of 0 °C to 70 °C.
Technical specifications:

Wavelength: 1310nm
Optical interface: LC Duplex
Transmission distance: 15 km (single-mode fiber optic)
Digital diagnostics and monitoring (DDM)
Operating voltage: +3.3 V
Hot-pluggable design
Operating temperature: 0 °C to 70 °C
Storage temperature: -40 °C to 85 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine 32335S. SFP transceiver type: Fiber optic, Maximum data transfer rate: 2500 Mbit/s, Interface type: SFP. Product colour: Stainless steel. Input voltage: 3.3 V. Compliance certificates: CE, RoHS, TÜV mark. Width: 60 mm, Depth: 0.19 mm, Height: 15 mm

How to use

Insert each RJ45 connector into the Ethernet port of the devices you want to link, such as a computer and a router or a switch. Ensure connectors click into place for a secure connection. For best performance, avoid sharp bends and excessive tension on the cable and verify that connected equipment and transceivers support the desired 2.5 Gb/s rate.

Recommendations

For optimal results, use the InLine 32335S with compatible Cat5e/Cat6 ports and verify network device settings. Keep cable runs short where possible, route away from sources of electromagnetic interference, and replace the cable if connector damage or performance issues occur.
