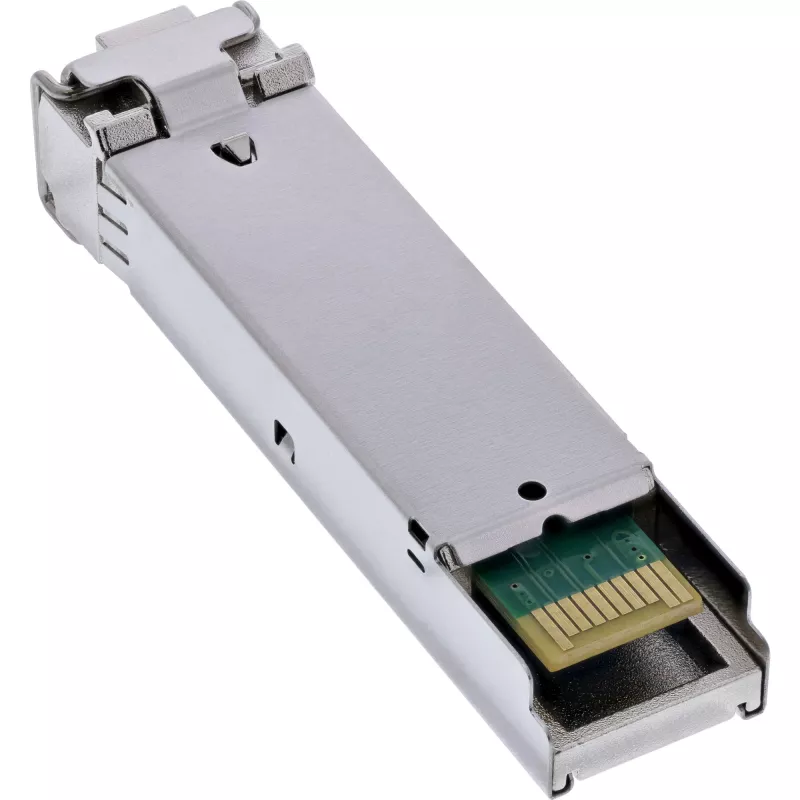

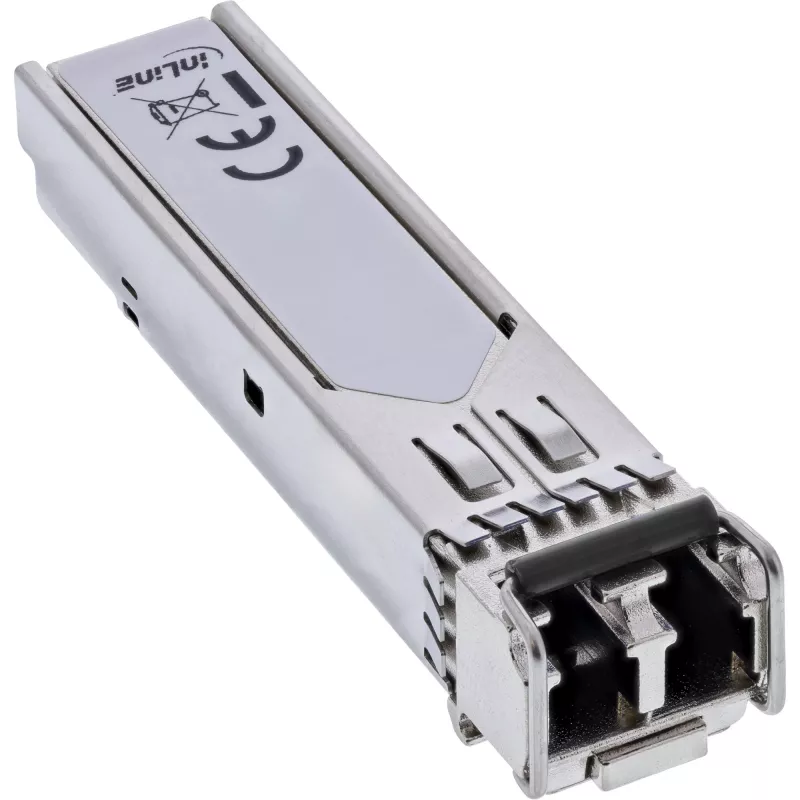

InLine SFP Module Fiber SX 850nm MM with LC sockets, 550m, 1.25Gb/s

The InLine SFP Module Fiber SX 850nm MM (MPN 32335M, EAN 4043718277841) is a small form-factor pluggable transceiver for multimode fiber networks. It supports a data rate of 1.25Gb/s (1250 Mbit/s) and enables reliable short-range fiber connections up to 550 meters using 850nm wavelength and LC connectors. The module is intended for use in compatible SFP slots on switches, media converters and other networking equipment.

Advantages

This SFP module provides full-duplex Gigabit-class performance over multimode fiber, compact SFP form factor for hot-swappable installation, and LC duplex sockets for standard fibre connections. It is compatible with devices that accept SFP modules and is specified for a maximum link distance of 550 m at 850 nm with a transmission rate of 1.25 Gb/s.

Suitable for

• Short-reach multimode fiber links (up to 550 m)
• Gigabit network expansion via SFP ports on switches and media converters
• Replacing or upgrading existing multimode SFP transceivers

Key specifications

• Manufacturer: InLine
• Model / MPN: 32335M
• EAN: 4043718277841
• Interface type: SFP (small form-factor pluggable)
• Wavelength: 850 nm (multimode)
• Maximum data transfer rate: 1.25 Gb/s (1250 Mbit/s)
• Maximum distance: 550 m (multimode)
• Connector: LC duplex

How to use

Power down or follow the hot-swap procedure recommended by your equipment manufacturer, then insert the SFP module into an empty SFP port until it seats firmly. Connect LC duplex multimode fiber cable to the module’s LC sockets, observing correct transmit/receive orientation. Configure the host device’s interface settings if required (speed/duplex are typically auto-negotiated at 1.25 Gb/s). Verify link and activity LEDs on the host device to confirm the connection.

Recommendations

Use this module with multimode fiber and LC duplex patch cables certified for 850 nm operation. Keep fiber connectors clean and protected when not in use. Verify compatibility with the switch or media converter vendor’s SFP support list to ensure full functionality.
