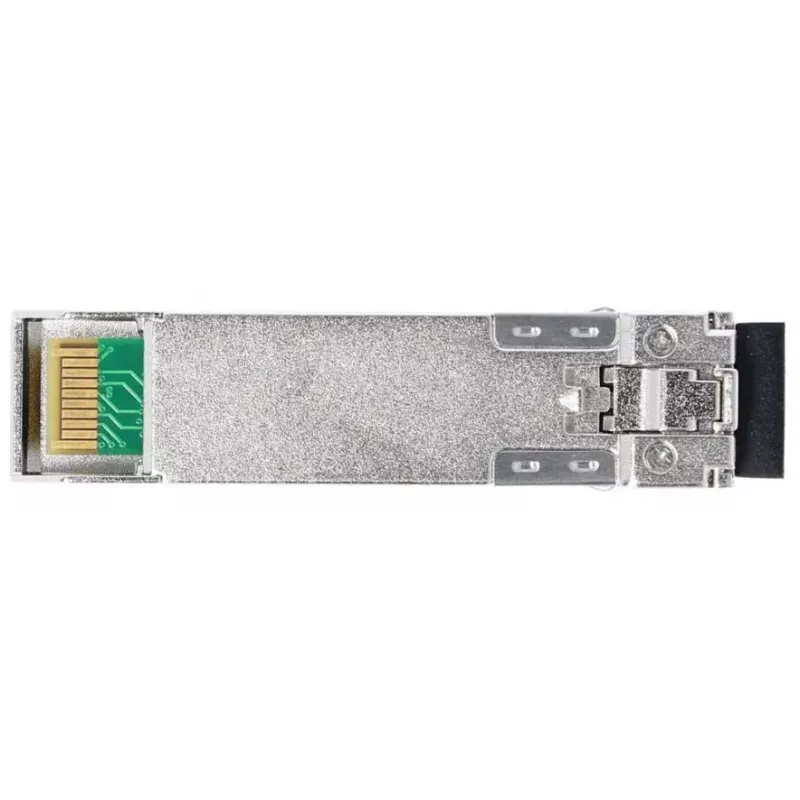

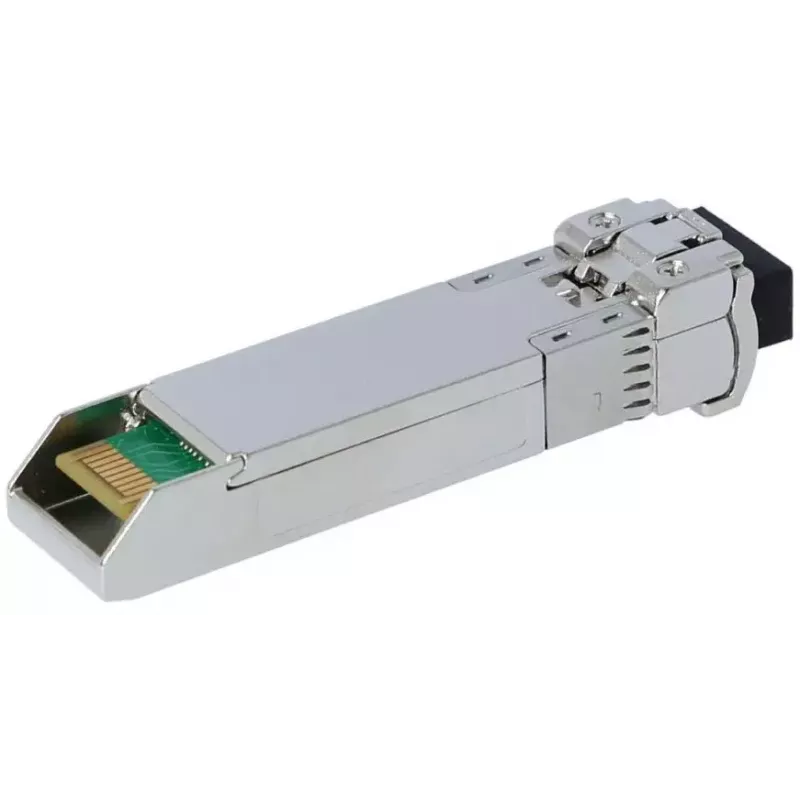

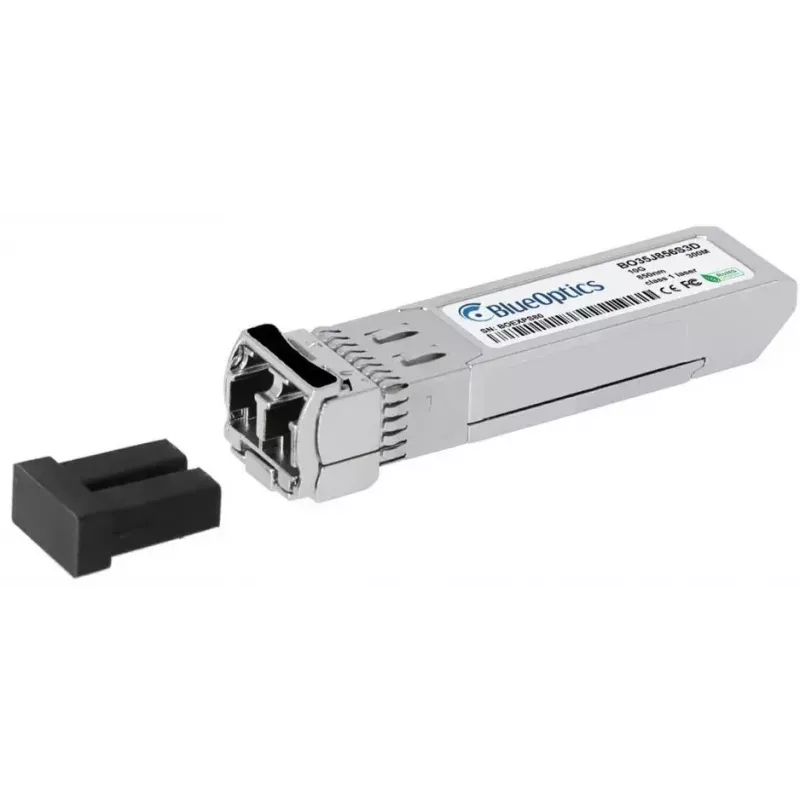

SFP+ fiber optic transceiver BlueOptics E10GSFPSR-BO 10 Gbps 850 nm LC 300 m Silver

BlueOptics E10GSFPSR-BO is an SFP+ fiber optic transceiver designed for short-range 10 Gbps links over multimode fiber. It operates at an 850 nm wavelength, uses an LC duplex connector and supports transmission distances up to 300 m. The module is MSA-compliant and intended for use in switches, routers, storage systems and other Intel-compatible platforms that accept the Intel E10GSFPSR 10GBASE-SR SFP+ form factor.

Advantages

The BlueOptics E10GSFPSR-BO provides 10 Gbps performance with a compact SFP+ form factor and LC duplex interface. Modules are manufactured to MSA standards and tested for compatibility with Intel-based hardware. Built with high-quality components and supporting Digital Diagnostics Monitoring (DDM/DOM, SFF-8472), the transceiver offers real-time monitoring of supply voltage, laser bias current, transmit power, receive power and temperature. The product meets common industrial certifications (CE, RoHS, FCC) and is specified for an expected long lifetime and high MTBF.

Suitable for

• Short-range 10 Gbps links in data centers
• Server-to-switch and switch-to-switch multimode fiber connections
• Storage area networks and high-speed enterprise networks

Key specifications

• Interface type: SFP+
• Maximum data rate: 10,000 Mbit/s (10 Gbps)
• Wavelength: 850 nm

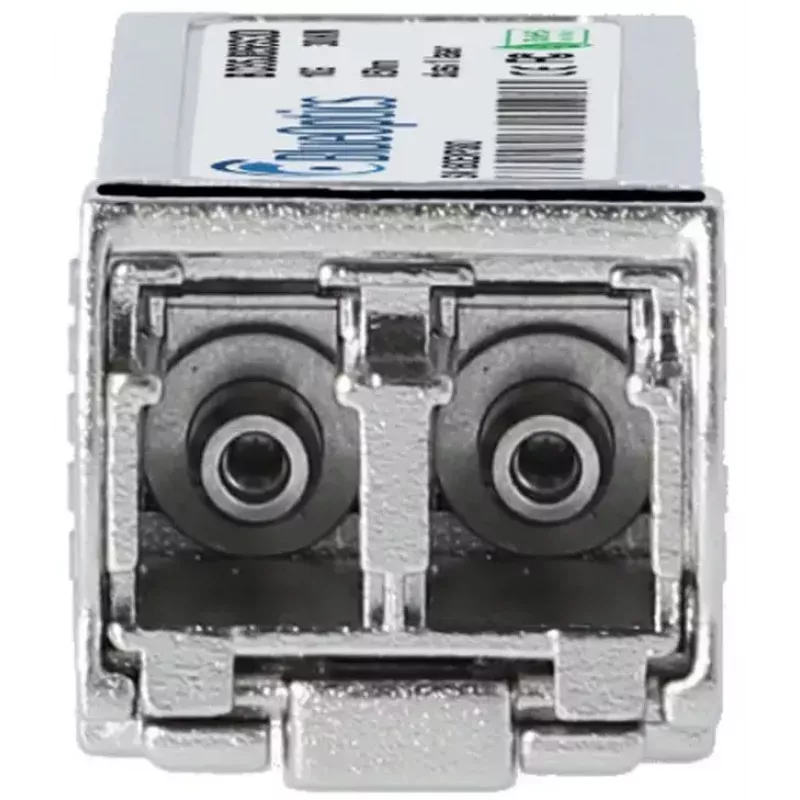

• Connector: LC duplex
• Maximum reach: 300 m (multimode fiber)
• Housing colour: Silver
• Weight: 0.02 kg
• MSA compliant; supports DDM/DOM (SFF-8472)

How to use

Install the transceiver into an SFP+ slot of a compatible switch, router or storage device that supports the Intel E10GSFPSR form factor. Use LC duplex multimode fiber patch cords to connect to the remote transceiver or patch panel, observing transmit/receive orientation. Ensure the host hardware firmware accepts third-party modules if required by the vendor. If enabled and supported by the host, use the DDM/DOM interface to monitor voltage, laser bias, transmit/receive power and temperature for maintenance and troubleshooting.

Recommendations

For optimal performance, pair the E10GSFPSR-BO with quality multimode fiber and matching LC patch cords, keep firmware/drivers up to date on host devices, and verify DDM/DOM support in the target hardware before deployment.
