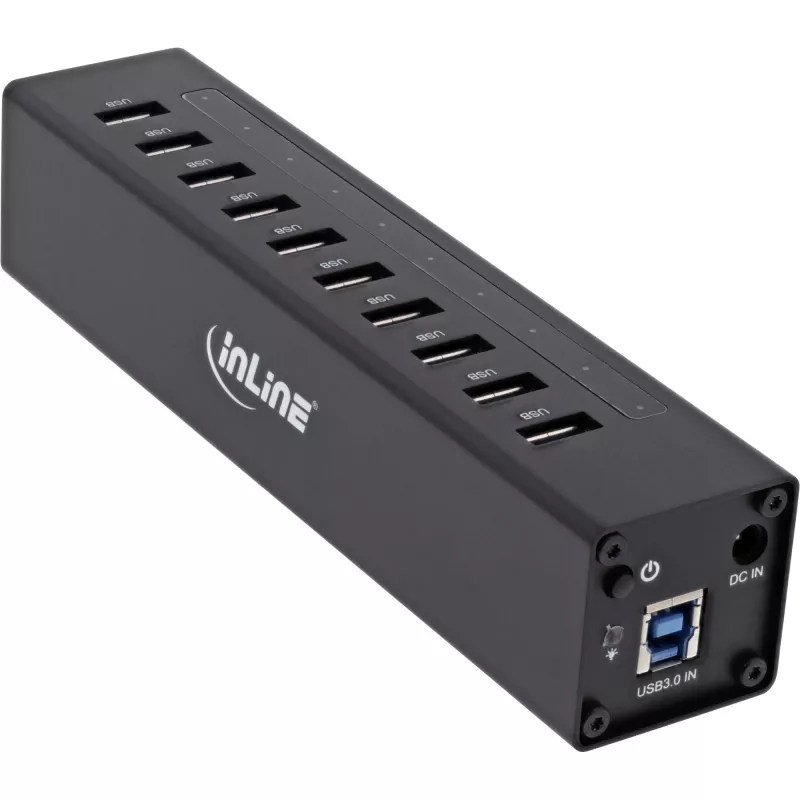

InLine USB 3.0 10 Port Hub Aluminium Case with 4A Power Supply, black

High data transfer rate: Achieve speeds of up to 5 Gb/s - ideal for demanding applications and fast file transfers.
Simultaneous operation: The included 4 A power supply allows you to operate multiple devices at the same time without any loss of performance.
Robust aluminum design: The elegant, black aluminum housing combines sophisticated design with outstanding stability.
Comprehensive compatibility: Thanks to backwards compatibility (USB 3.1, 3.0, 2.0, 1.1), you have flexible access to a wide range of systems.

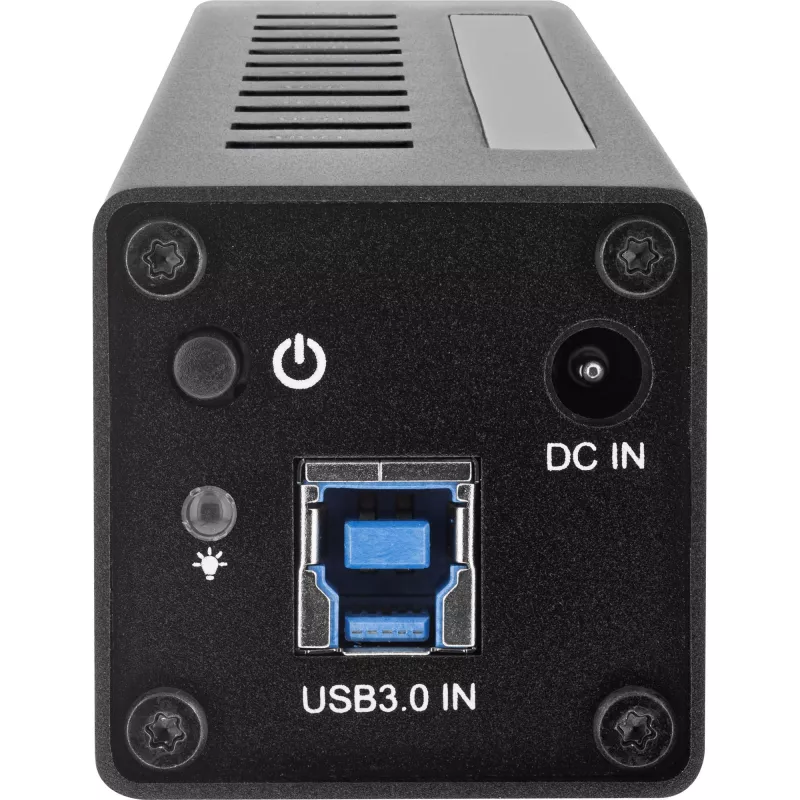

Benefit from an active USB hub that has been specially developed for professional applications. With the InLine® USB 3.2 Gen.1 hub, you get a solution that meets the highest demands - whether in the data center or in the office. The ultra-fast data transfer of up to 5 Gb/s and the reliable power supply via the high-performance power supply unit enable trouble-free operation, even if several devices are connected at the same time. The high-quality aluminum housing in elegant black is not only visually appealing, but also offers increased stability and durability. The simple operation via an ON/OFF button and the LED status indicators mean you always have an overview of the connection status.

Material: Aluminum
Color: Black
Output interface: 10x USB-A 3.2 Gen.1 sockets
System: Windows XP and MAC OS X or higher
Product dimensions: 188 (L) x 40 (W) x 40 (H) mm
Weight: 305 g
Operating temperature: 5 ° C ~ 40 ° C
Storage temperature: -20 ° C to 70 ° C

Content of delivery:

1x USB 3.2 Gen.1 hub
1x USB 3.2 Gen.1 data cable (1 m)
1x operating instructions (German/English)
1x power supply unit (1.2 m) 12 V/4 A

Technical data power supply unit:

Input voltage: 100-240 V
Input alternating current frequency: ~50/60 Hz, 1.5 A
Output voltage: 12.0 V DC
Output current: max. 4.0 A
Output power: 48.0 W
Average efficiency during operation: 88.62 %
Efficiency at low load (10 %): 86.66 %
Power consumption at no load: 0.083 W

InLine USB 3.0 10 Port Hub Aluminium Case with 4A Power Supply, black. Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Data transfer rate: 5000 Mbit/s, Product colour: Black, Housing material: Aluminium. Power source type: DC, Input voltage: 12 V, Input current: 4 A. Width: 50 mm, Depth: 180 mm, Height: 50 mm. Quantity per pack: 1 pc(s), Package width: 125 mm, Package depth: 192 mm

How to use

Place the hub on a stable surface and connect the included 4A AC adapter to the hub and a mains outlet. Connect the hub to your computer using the built-in USB Type-A host cable. Plug USB devices into the available Type-A ports. The hub supports hot-plugging, so devices can be connected or removed while the computer is running. For high-speed data transfer, use USB 3.0/3.2 Gen 1 compatible cables and ports on the host computer.

Recommendations

To ensure stable operation when using multiple power-hungry devices (external hard drives, charging multiple phones), keep the external 4A power adapter connected. Use USB 3.0/3.2 Gen 1 ports and cables on the host device for optimal data rates and avoid connecting high-current devices to unpowered ports on other hubs in series.
