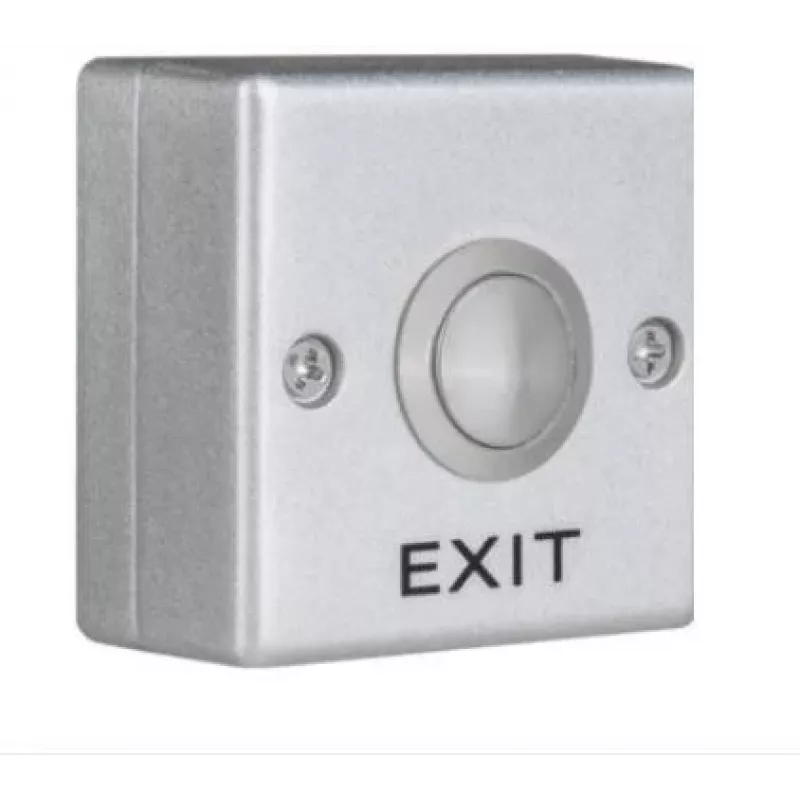

VIDOS OP04 Exit Button - Surface Mount, Momentary Push to Release, NO/NC/COM, White ABS

The VIDOS OP04 is a high-quality exit button designed for access control systems, intercoms, and door release applications. This momentary push button features a robust ABS plastic housing in white, suitable for surface mounting. It offers both normally open (NO) and normally closed (NC) contacts with a common terminal, providing flexibility for various wiring configurations. With a mechanical life of 500,000 cycles and an operating temperature range of -20°C to +50°C, the OP04 ensures reliable performance in demanding environments.

Advantages

Durable ABS construction ensures long-lasting use. The momentary action provides a secure push-to-release function. Screw terminals simplify installation. Compact design fits discreetly on any surface.

Suitable for

• Access control systems
• Intercoms
• Door release mechanisms
• Security gates

Key specifications

• Product Type: Exit Button
• Operation Mode: Momentary (Push to Release)
• Contact Configuration: NO, NC, COM
• Material: ABS Plastic
• Color: White
• Mounting Type: Surface Mount
• Maximum Switching Voltage: 36V DC
• Maximum Switching Current: 3A
• Mechanical Life: 500,000 cycles
• Operating Temperature Range: -20°C to +50°C
• Connection Type: Screw Terminals

Recommendations

For best results, pair with a compatible access control panel. Ensure proper wiring according to your system's requirements. This button is ideal for indoor use only.
