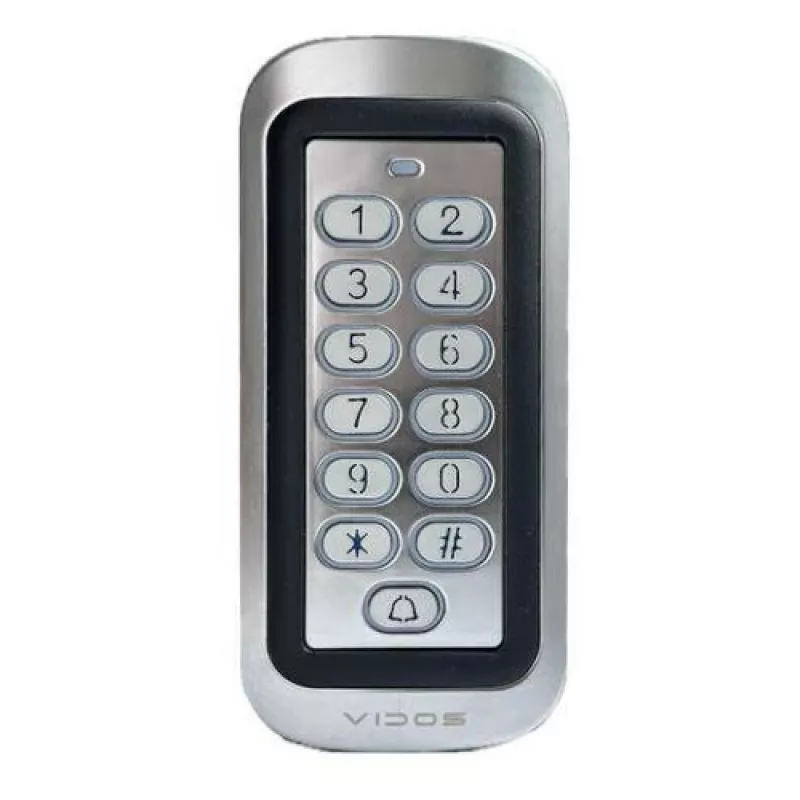

VIDOS ZS47-MF Keypad Lock with RFID Reader, IP65, 2000 Users, 12V DC

The VIDOS ZS47-MF is a robust combination keypad and RFID access control lock designed for secure entry management. Featuring a zinc alloy housing with IP65 protection, it withstands harsh outdoor conditions. Supports up to 2000 users via code or 13.56 MHz Mifare card, with Wiegand 26-bit interface for integration. Includes doorbell, anti-tamper alarm, and short circuit protection.

Advantages

Durable zinc alloy construction ensures long life. IP65 rating allows outdoor installation. Dual authentication (code + card) offers flexibility. High user capacity suitable for small to medium businesses. Built-in doorbell and tamper alarm enhance security.

Suitable for

• Office entrances
• Warehouse doors
• Apartment building gates
• Storage rooms

Key specifications

• Access Methods: Code, RFID Card (13.56 MHz Mifare)
• User Capacity: 2000 (cards/codes)
• Operating Voltage: DC 12V
• Standby Current: <30 mA, Active: <60 mA
• Relay Output: Max 3A (NO/NC/COM)
• Wiegand Interface: 26-bit Input & Output
• Housing Material: Zinc Alloy
• Ingress Protection: IP65
• Operating Temperature: -40°C to +60°C
• Keypad Backlight: Blue
• Doorbell Function: Yes
• Anti-Tamper Alarm: Yes
• Short Circuit Protection: Yes
• Installation: Surface Mount

Recommendations

For best performance, use with a regulated 12V DC power supply. Ensure proper sealing of cable entries to maintain IP65 rating.
