VIDOS OP06 Exit Button - White, Surface Mount, Momentary Switch, NO/NC/COM, ABS Plastic

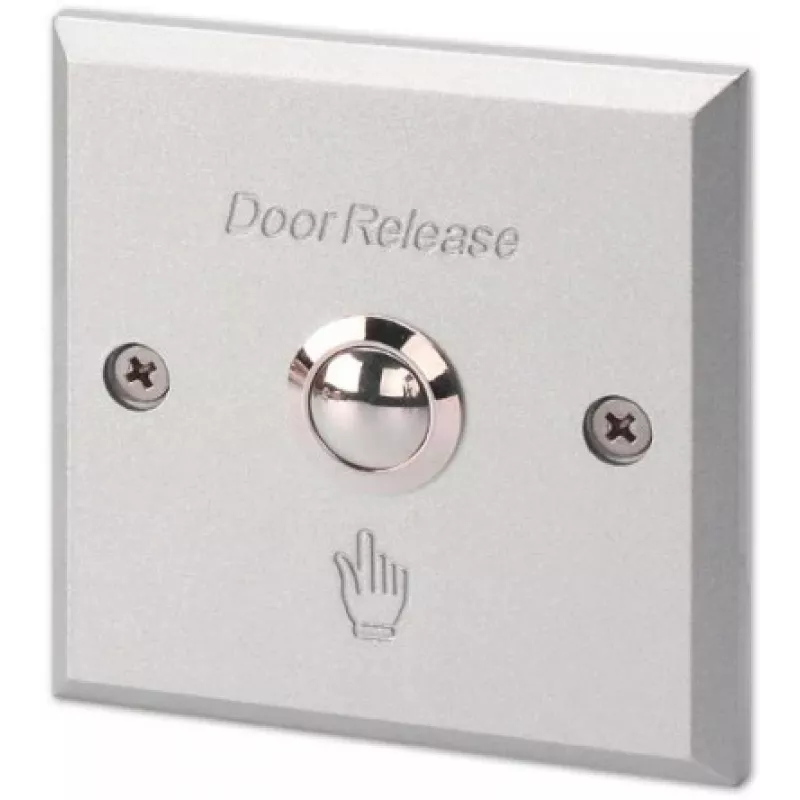

The VIDOS OP06 Exit Button is a reliable and durable momentary switch designed for indoor access control and intercom systems. Featuring a sleek white ABS plastic housing and surface mount installation, this exit button provides a simple and effective solution for egress control. With NO/NC/COM contact configuration and screw terminal connections, it integrates seamlessly with universal access control systems.

Advantages

High mechanical durability of 500,000 cycles ensures long-lasting performance. The compact design and easy surface mount installation save time and effort. Compatible with a wide range of access control and intercom systems, making it a versatile choice for commercial and residential applications.

Suitable for

• Access control exit points in offices, warehouses, and retail stores
• Integration with intercom systems for secure door release
• Indoor egress control in residential buildings and apartments

Key specifications

• Product Type: Exit Button
• Contact Configuration: NO/NC/COM
• Switch Type: Momentary (Push-to-release)
• Material: ABS Plastic
• Installation Type: Surface Mount
• Max Voltage Rating: 36V DC
• Max Current Rating: 3A
• Durability (Mechanical): 500,000 cycles
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 0-95% (non-condensing)
• Color: White
• Connection Method: Screw Terminals
• Activation Method: Mechanical Push Button
• LED Indicator: No
• Application Environment: Indoor

Recommendations

For optimal performance, ensure proper wiring according to the NO/NC/COM configuration. Suitable for use with 12V or 24V DC systems. Not recommended for outdoor use without additional weatherproofing.
