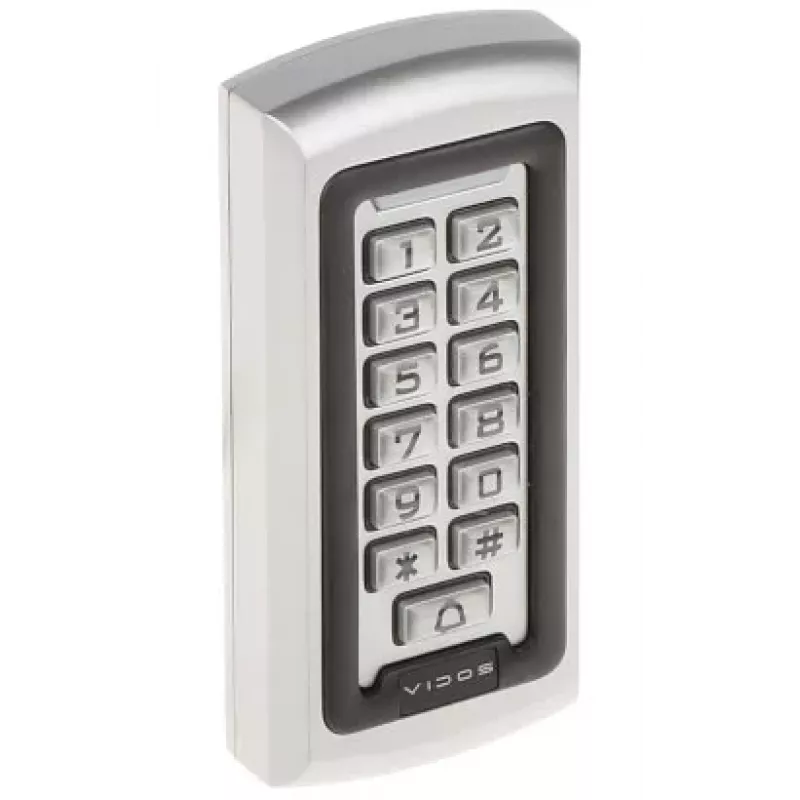

Digital Lock ZS42-1 Vidos - PIN Code & RFID Access Control Reader, IP68 Waterproof, Zinc Alloy

The VIDOS ZS42-1 is a robust digital lock designed for secure access control in demanding environments. Featuring dual authentication methods (PIN code and RFID proximity card) and an IP68 waterproof rating, this surface-mount reader is ideal for outdoor and industrial applications. Its zinc alloy housing ensures durability, while the built-in tamper alarm and doorbell function add convenience and security.

Advantages

Reliable dual access methods (PIN and 125 kHz RFID) with a capacity of up to 2000 users. IP68 waterproof protection allows operation in harsh weather. The tamper alarm and doorbell button enhance security and usability. Easy surface-mount installation and programming via master code.

Suitable for

• Outdoor gates and entrances
• Industrial facilities
• Apartment buildings
• Warehouses
• Any location requiring weatherproof access control

Key specifications

• Access Methods: PIN Code, RFID Proximity Card (125 kHz EM)
• User Capacity: 2000 (PINs/Cards)
• Power Supply: DC 12V
• Standby Current: <30mA, Active Current: <60mA
• Material: Zinc Alloy Metal Housing
• Ingress Protection: IP68 (Waterproof)
• Operating Temperature: -40°C to +60°C
• Wiegand Output: Wiegand 26
• Relay Output: NO/NC (Normally Open/Normally Closed)
• Backlight: Yes
• Tamper Alarm: Yes
• Doorbell Function: Yes (Dedicated Button)
• Installation Type: Surface Mount
• Programming Method: Master Code
• Lock Output Current: Max 3A
• Alarm Output Current: Max 20A

Recommendations

For optimal performance, use with a compatible 12V DC power supply and ensure proper surface mounting. The IP68 rating allows outdoor installation, but avoid submersion. Program user codes and cards via the master code for secure access management.
