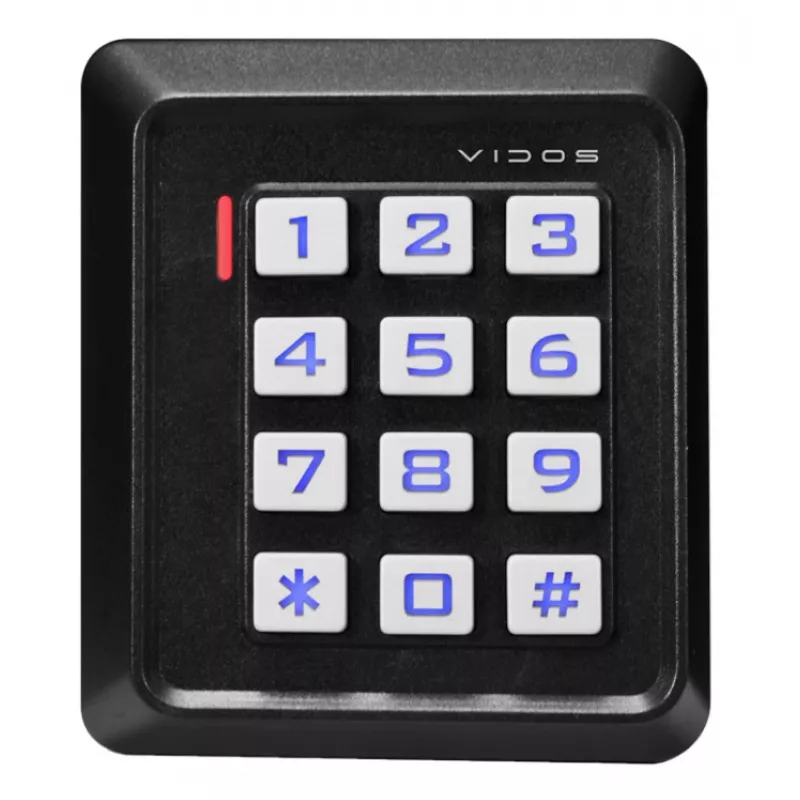

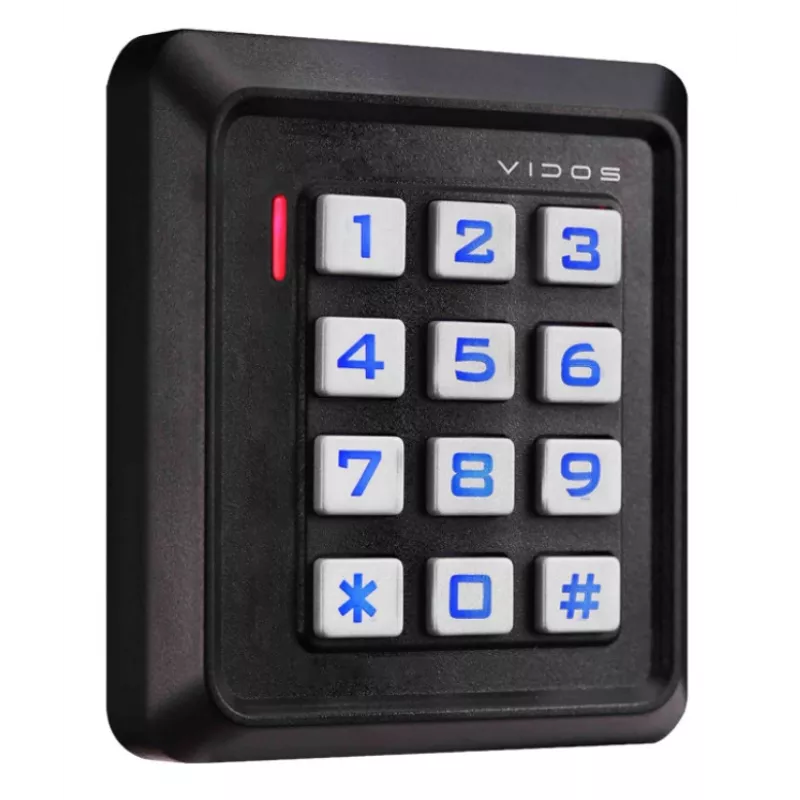

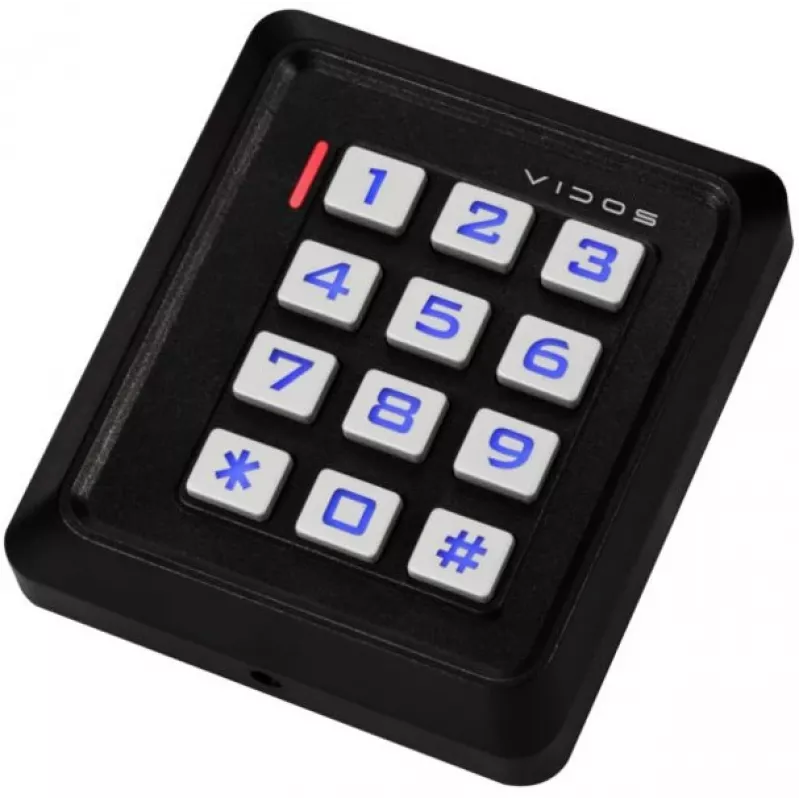

VIDOS ZS40B Combination Lock with Proximity Reader, IP68 Waterproof, 2000 Users, PIN & RFID

The VIDOS ZS40B is a standalone combination lock with an integrated proximity reader, designed for secure access control in demanding environments. With IP68 waterproof rating and robust zinc alloy housing, it withstands harsh weather and tampering. Supports up to 2000 users via PIN code, EM 125 kHz RFID card, or both. Features Wiegand 26 input/output, adjustable relay time, anti-tamper alarm, and doorbell function.

Advantages

IP68 waterproof ensures reliable outdoor operation. Zinc alloy casing provides durability and vandal resistance. Large user capacity (2000) suits medium-sized facilities. Dual authentication (PIN + card) enhances security. Built-in doorbell and anti-tamper alarm add convenience and safety.

Suitable for

• Office buildings
• Warehouses
• Industrial facilities
• Apartment complexes
• Outdoor gates

Key specifications

• Access methods: PIN, RFID (EM 125 kHz), PIN+RFID
• User capacity: 2000
• Operating voltage: DC 12V
• Standby current: <30 mA, Active: <100 mA
• Relay output: NO/NC/COM, 3A/12V DC
• Wiegand interface: 26-bit input & output
• IP rating: IP68
• Operating temperature: -40°C to +60°C
• Housing material: Zinc alloy
• Adjustable door relay time: 0-99 seconds
• Anti-tamper alarm: Yes
• Doorbell function: Yes (dedicated button)
• Status indicator: Multi-color LED
• Built-in buzzer: Yes

Recommendations

For optimal performance, use with 12V DC power supply and EM 125 kHz RFID cards. Suitable for indoor and outdoor installations where waterproof and durable access control is required.
