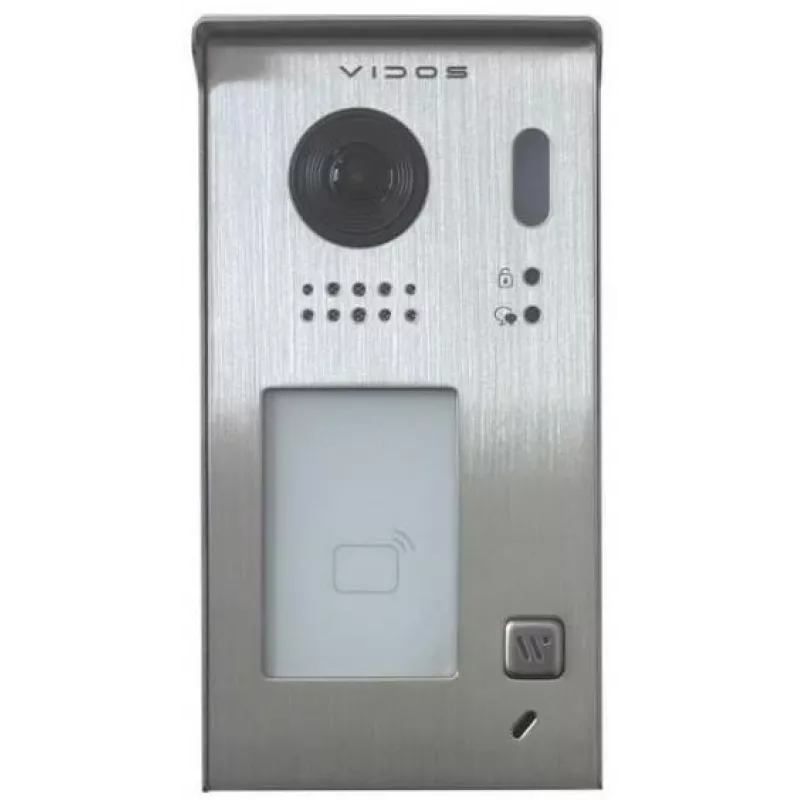

VIDOS DUO IP S301-1 Single-Family Door Station with 2MP Camera, RFID, and IP65

The VIDOS DUO IP S301-1 is a single-family door station that delivers secure, high-definition visitor communication with its 2.0 MP full HD camera and 170° wide-angle lens. Housed in a vandal-resistant stainless steel and aluminum enclosure, this surface-mounted unit withstands harsh weather with IP65 and IK07 ratings, ensuring reliable performance in any environment.

Advantages

Full HD 1080p video with H.264 compression ensures clear images day and night, aided by IR LEDs for low-light conditions. Two-way audio with echo cancellation provides natural conversation. Dual relay outputs allow control of gates or doors directly from the station. Seamless integration with the VIDOS DUO 2-wire IP system simplifies installation and reduces cabling costs. Built-in MIFARE RFID reader enables convenient keyless access.

Suitable for

• Single-family homes requiring a robust, vandal-resistant entrance solution
• Properties needing keyless entry via MIFARE cards or tags
• Installations where surface mounting on a wall or gate is preferred
• Users of the VIDOS DUO system seeking a compatible IP door station

Key specifications

• Camera: 2.0 MP, 170° wide-angle, Full HD 1080p
• Night vision: IR LEDs for clear images in darkness
• Access control: Built-in MIFARE RFID reader (13.56 MHz)
• Connectivity: Ethernet (RJ45) and 2-wire DUO bus
• Power: 24V DC from DUO system
• Protection: IP65 dust/water resistant, IK07 vandal resistant
• Material: Stainless steel front panel, aluminum housing
• Relay outputs: 2 for gate/door control
• Operating temperature: -30°C to +50°C

Recommendations

For seamless integration and optimal performance, pair the VIDOS DUO IP S301-1 with VIDOS DUO system monitors and use MIFARE-compatible cards or tags for keyless entry.
