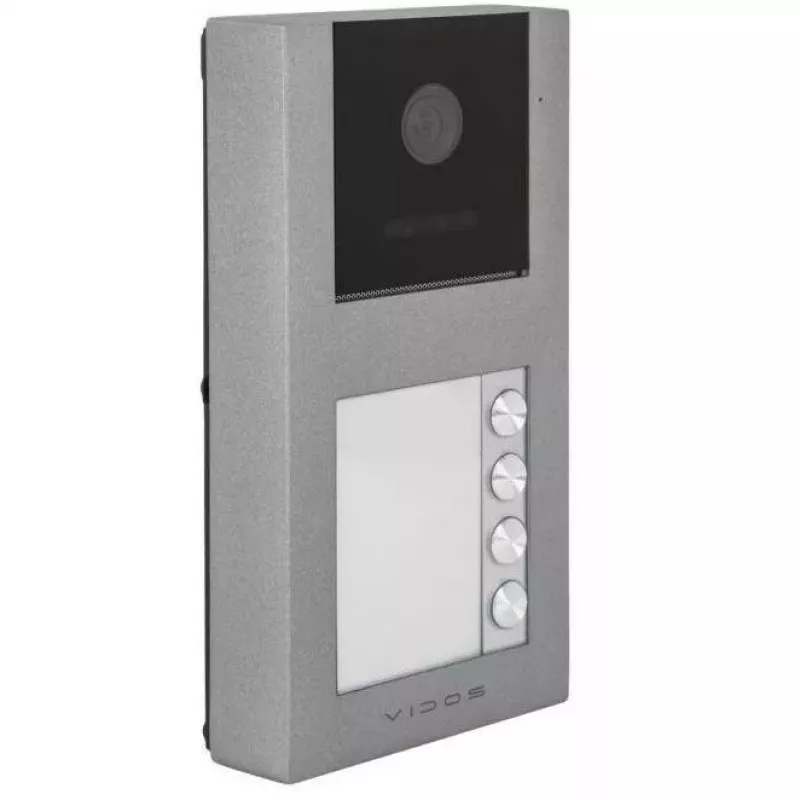

VIDOS X S11-4 Outdoor Panel 2-Wire Digital Door Station with 1080p Camera and IR Night Vision

The VIDOS X S11-4 is a premium outdoor panel designed for the VIDOS X 2-wire digital intercom system. Featuring a 2.0 MP CMOS camera with Full HD 1080p resolution and a 170° wide-angle lens, it ensures clear video communication. Integrated infrared LEDs provide reliable night vision, while the aluminum alloy front panel and IP65 rating guarantee durability in harsh weather conditions. The panel includes one call button with white LED backlight and a backlit name tag for easy identification. It supports two-way audio communication and has a relay output for door or gate control. Powered via DC 24V from the monitor, it operates in temperatures from -30°C to +50°C. Compatible with all VIDOS X Series monitors, this surface-mounted panel is ideal for residential and commercial access control.

Advantages

High-quality 1080p video with wide-angle view ensures you never miss a visitor. IR night vision provides clear images even in complete darkness. The robust aluminum front panel and IP65 protection withstand rain, dust, and extreme temperatures. Simple 2-wire connection reduces installation complexity and cost. Backlit call button and name tag improve usability at night.

Suitable for

• Single-family homes and villas
• Apartment buildings with up to 4 units (expandable with additional panels)
• Small offices and commercial premises
• Secure entry points requiring video verification

Key specifications

• System: 2-Wire Digital (VIDOS X System)
• Camera: 2.0 MP CMOS, 1080p Full HD
• Viewing Angle: 170°
• Night Vision: Infrared LEDs
• Material: Aluminum Alloy Front Panel
• Installation: Surface Mounted
• Call Buttons: 1 (with white LED backlight)
• Name Tag Backlight: White LED
• Relay Output: 1 (for door/gate control)
• Protection Rating: IP65
• Operating Temperature: -30°C to +50°C
• Power Supply: DC 24V (from monitor)
• Audio: Two-way duplex
• Color: Silver / Black
• Compatibility: VIDOS X Series Monitors

Recommendations

For optimal performance, pair this outdoor panel with a VIDOS X Series indoor monitor. Ensure the 2-wire bus is properly terminated and powered according to the system manual. Regular cleaning of the camera lens and IR LEDs will maintain video quality.
