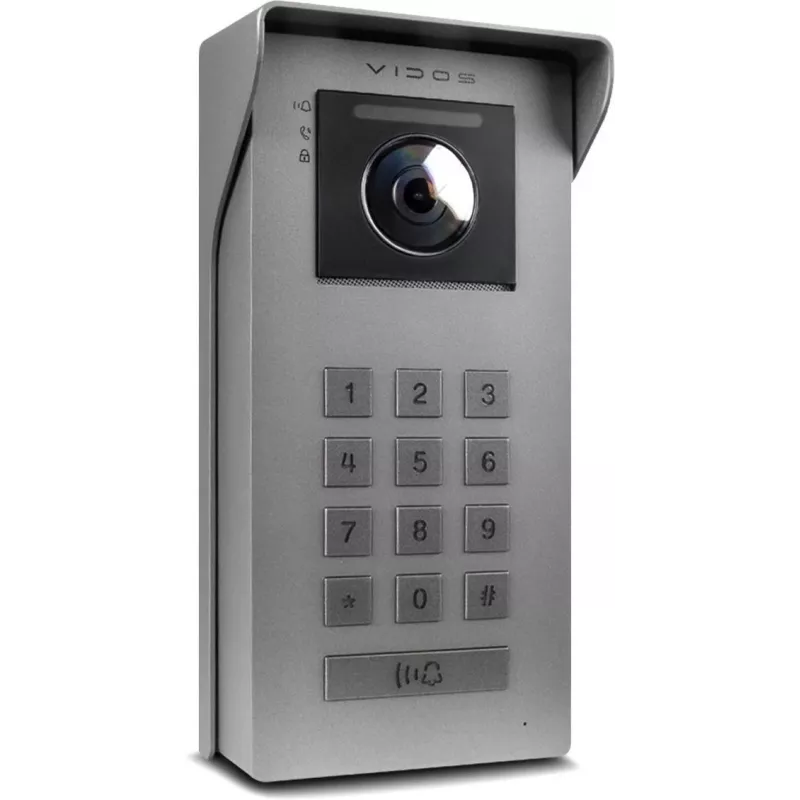

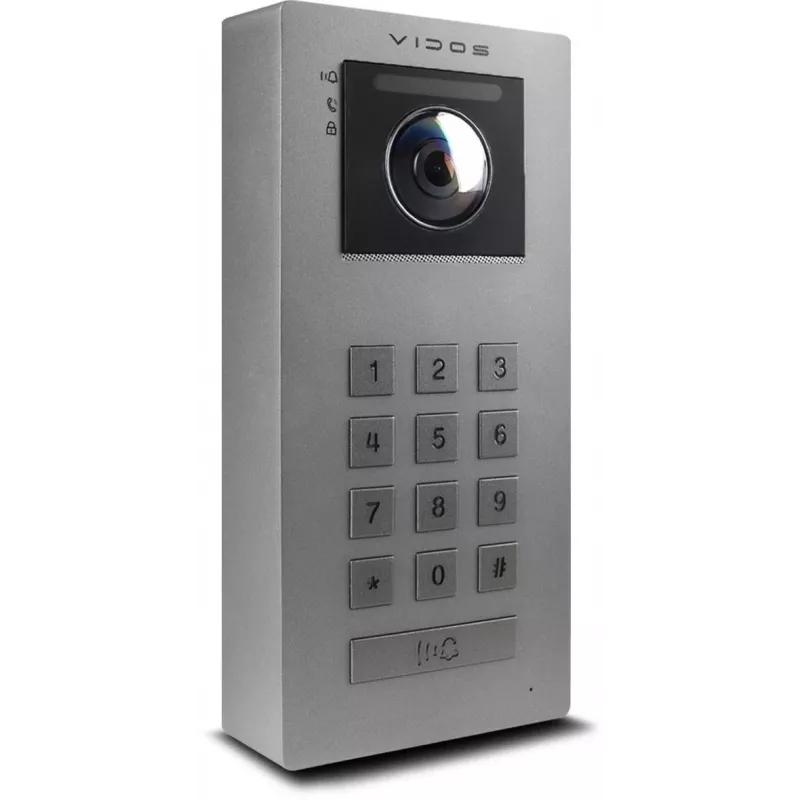

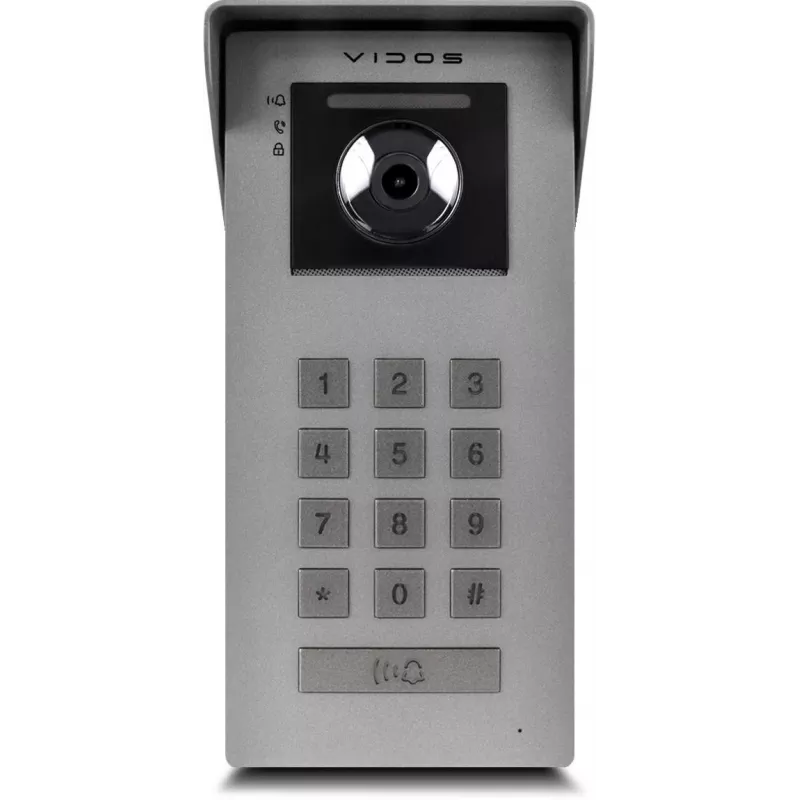

VIDOS IPX S100 Outdoor Panel IP Video Door Station 2MP 1080p PoE Wi-Fi Black

The VIDOS IPX S100 is a high-quality outdoor IP video door station designed for modern residential and commercial access control. Featuring a 2MP CMOS sensor with 1080p Full HD resolution and a 130° horizontal viewing angle, it delivers clear video day and night thanks to IR LEDs with up to 3m range. Two-way audio with echo cancellation ensures seamless communication with visitors. The unit supports both Ethernet (RJ45) and Wi-Fi (2.4GHz) connectivity, and can be powered via 12V DC or PoE (802.3af). With IP65 weather resistance and IK07 vandal resistance, the aluminum alloy housing is built to withstand harsh conditions. The door station includes one physical call button and two relay outputs for door/gate control. It is compatible with the Vidos Smart app (Tuya Smart platform) and Vidos IPX Series monitors, as well as ONVIF systems. Video compression is H.264, and motion detection is supported. A MicroSD card slot (up to 128GB) allows local recording. Operating temperature range: -30°C to +50°C. Surface mount installation.

Advantages

Reliable outdoor video door station with high-definition video, two-way audio, and flexible connectivity options. PoE support simplifies installation, while Wi-Fi provides wireless flexibility. Durable aluminum alloy construction with IP65/IK07 ratings ensures long-lasting performance in various weather conditions.

Suitable for

• Residential homes
• Apartment buildings
• Small offices
• Commercial premises requiring secure entry

Key specifications

• Product Type: IP Video Door Station
• Camera Resolution: 2 Megapixel (1080p Full HD)
• Image Sensor: CMOS
• Viewing Angle: 130° (Horizontal)
• Night Vision: IR LEDs, up to 3m
• Audio: Two-way audio with echo cancellation
• Connectivity: Ethernet (RJ45), Wi-Fi (2.4GHz)
• Power Supply: 12V DC, PoE (802.3af)
• Weather Resistance: IP65
• Vandal Resistance: IK07
• Material: Aluminum Alloy
• Call Buttons: 1 (Physical)
• Relay Outputs: 2 (for door/gate control)
• Video Compression: H.264
• Motion Detection: Yes
• Memory Card Slot: MicroSD up to 128GB
• Operating Temperature: -30°C to +50°C
• Installation Type: Surface Mount
• App Compatibility: Vidos Smart (Tuya Smart platform)
• System Compatibility: Vidos IPX Series Monitors, ONVIF

Recommendations

For optimal performance, pair with a Vidos IPX Series indoor monitor or use the Vidos Smart app for remote access. Ensure proper network connectivity and power supply (PoE switch or 12V DC adapter).
