i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station Gen2 + Power Delivery 100W

The i-tec USB 3.0 / USB-C / Thunderbolt 3 Dual Display Docking Station Gen2 is a versatile office dock that provides multiple wired connections for notebooks and tablets. It supports connection to up to two external monitors at resolutions up to 4K and delivers power to a connected laptop or tablet with Power Delivery up to 100 W. The dock is compatible with common ports including USB 3.0, USB-C and Thunderbolt 3/4 and supports mainstream operating systems such as Windows, macOS, Chrome OS, Android and Linux.

Advantages

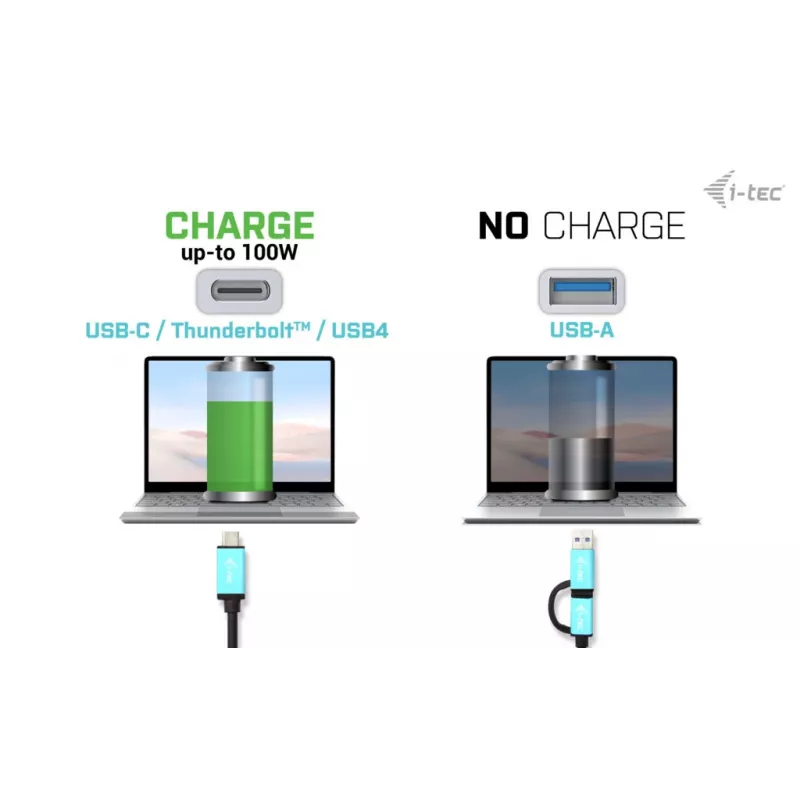

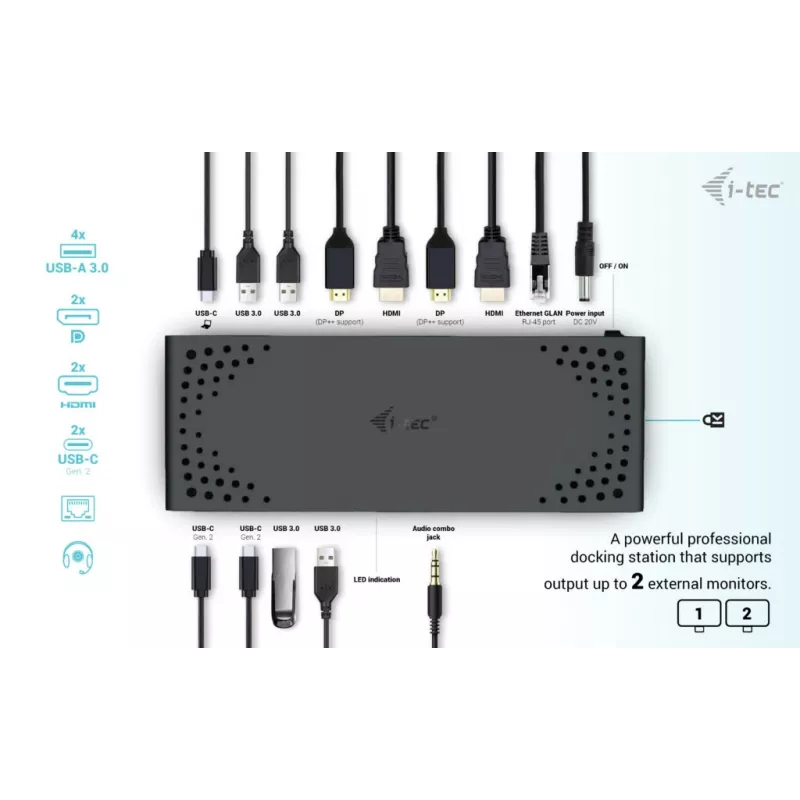

The docking station offers a wide range of ports: two USB-C Gen2 ports (up to 10 Gbps), four USB 3.0 (Gen1) Type-A ports (5 Gbps), two HDMI and two DisplayPort outputs, a Gigabit Ethernet RJ-45 port and a combo audio jack. It supports VESA mounting for installation behind a VESA-enabled monitor, includes a Kensington lock slot for physical security and features a power switch to save energy. When connected via USB-C or Thunderbolt ports it supports full functionality including charging; note that charging is not available if the dock is connected via a USB 3.0 Type-A port.

Suitable for

• Office professionals who need multi-monitor setups
• Home office users requiring wired Ethernet and multiple USB peripherals
• IT and shared-workspace environments that require physical security and VESA mounting

Key specifications

• Power delivery: up to 100 W

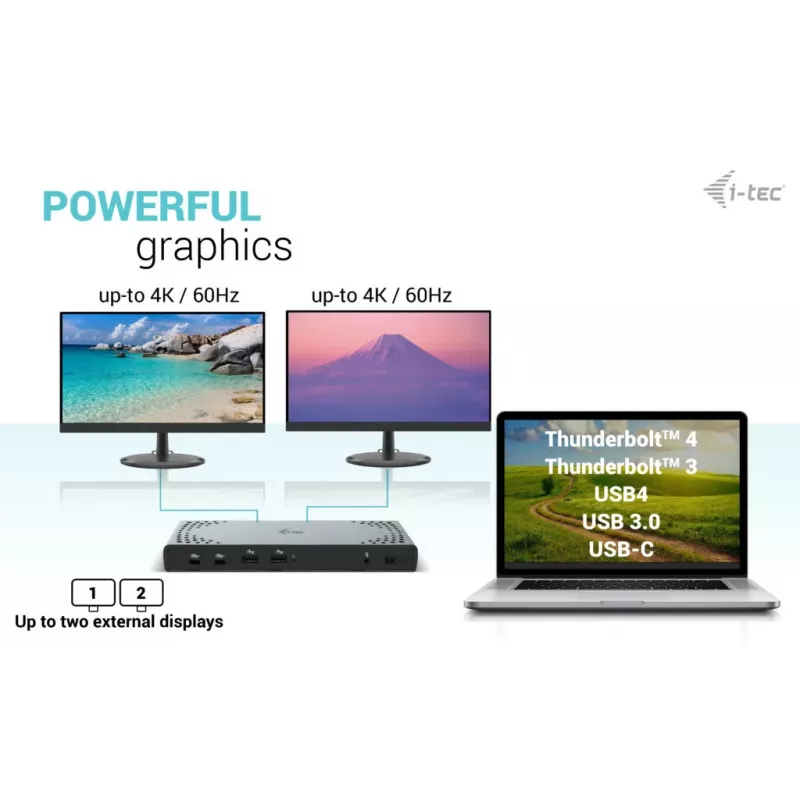

• Video outputs: 2× DisplayPort, 2× HDMI, supports up to 4K resolution per monitor (maximum digital resolution listed up to 5120 × 2880)
• USB ports: 4× USB 3.2 Gen1 Type-A (5 Gbps), 2× USB-C Gen2 (10 Gbps)
• Ethernet: Gigabit RJ-45, 10/100/1000 Mbps
• Audio: combo jack for headset/microphone
• Security: Kensington lock slot

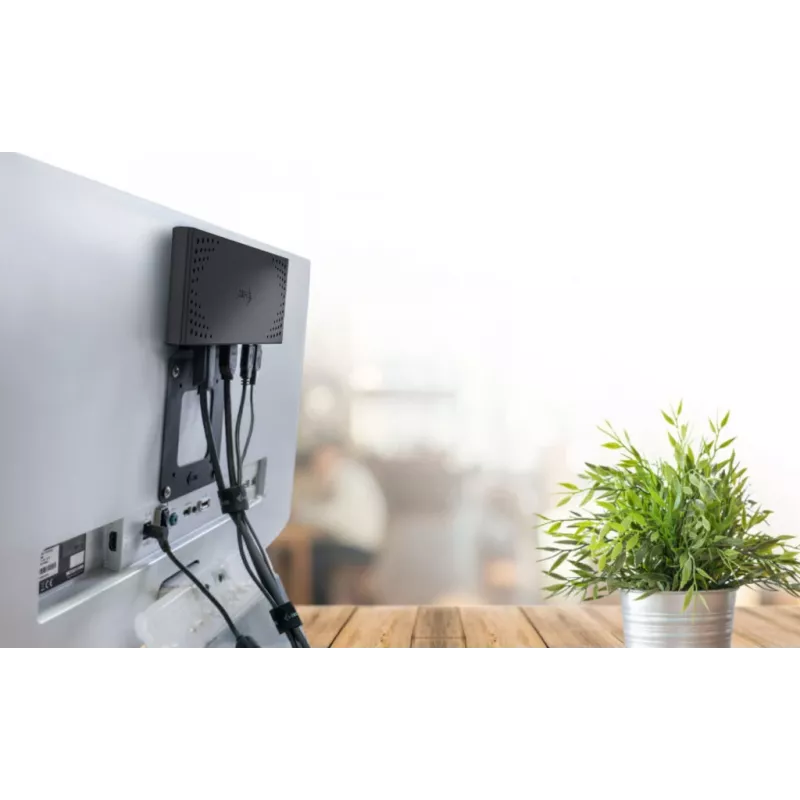

• Mounting: VESA mount support for mounting behind compatible monitors
• Compatibility: Windows 10 / 11, macOS, Android 5+, Chrome OS R51+, Linux Ubuntu
• Color and weight: black, approx. 0.33 kg

How to use

Connect the docking station to your notebook using a USB-C or Thunderbolt 3/4 cable to enable full functionality including video output, Ethernet and Power Delivery. Attach external monitors to the DisplayPort or HDMI outputs according to your display configuration. Plug peripherals into the USB-A or USB-C ports and connect a network cable to the RJ-45 port for wired internet. Use the power switch to turn the dock on or off and secure the unit with a Kensington lock if required. If the dock is connected via a USB 3.0 Type-A port, the laptop charging function will not be available.

Recommendations

For best performance use a direct USB-C or Thunderbolt connection to access the full 10 Gbps USB-C speeds and up to 100 W Power Delivery; ensure connected monitors and cables support the required resolutions and use a high-quality Cat5e/Cat6 cable for Gigabit Ethernet.
