Dock/Hub Manhattan USB-C 10 Ports 4K 60Hz Power Delivery

Manhattan 12-in-1 Multiport Adapter / Docking Station expands laptop and MacBook® connectivity by providing HDMI, DisplayPort, Power Delivery, Ethernet, card reader, audio and multiple USB ports. The compact aluminum body is designed for portability and fits easily in a computer bag while delivering stable wired network access and support for multiple external displays.

Advantages

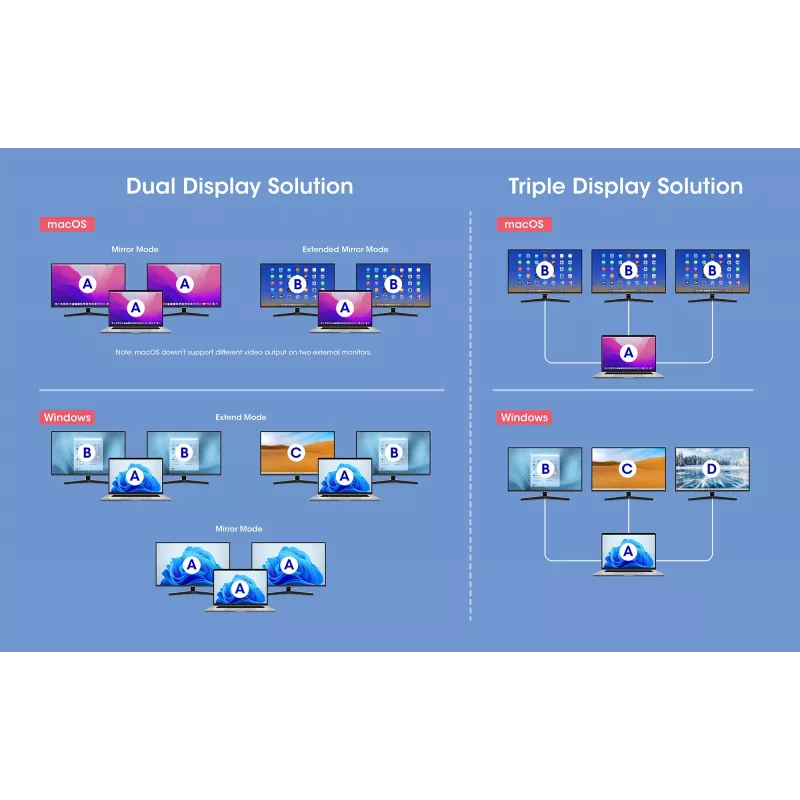

The adapter supports three simultaneous 4K displays via two HDMI ports and one DisplayPort without down-scaling the third monitor. It includes Gigabit RJ45 Ethernet for reliable 10/100/1000 Mbps wired networking, two card slots for SD and microSD, three USB-A ports for device connection and charging, and a SuperSpeed USB-C data port for high-bandwidth peripherals. The USB-C Power Delivery port supplies up to 100 W to charge a notebook while other USB ports can charge additional mobile devices. Android phones with USB-C DP Alt Mode (Android 9 or later) can output video directly to a connected monitor.

Key specifications

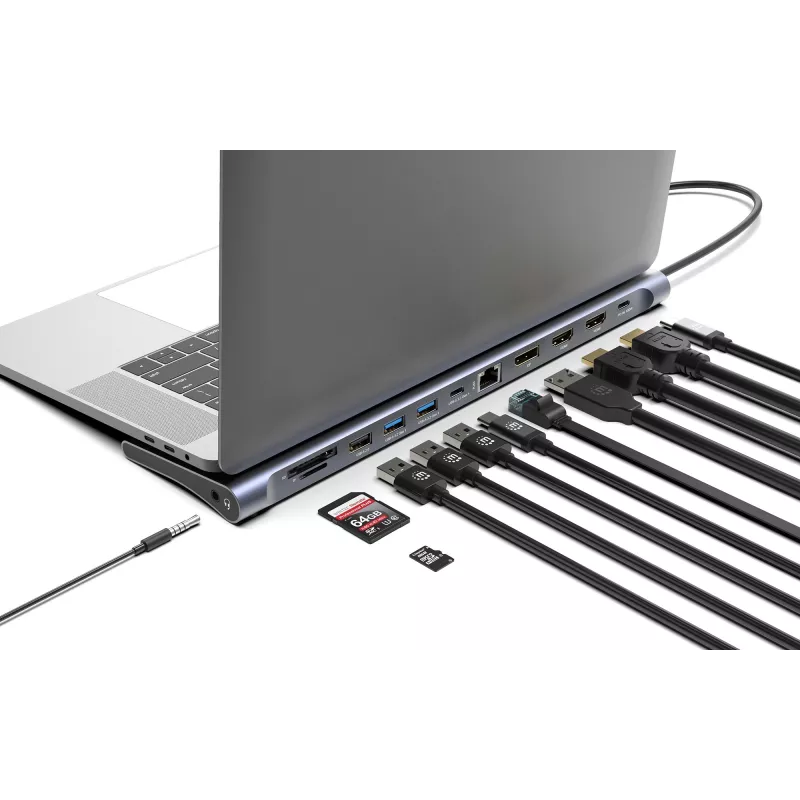

• Model: Manhattan 12-in-1 Multiport Adapter / Docking Station

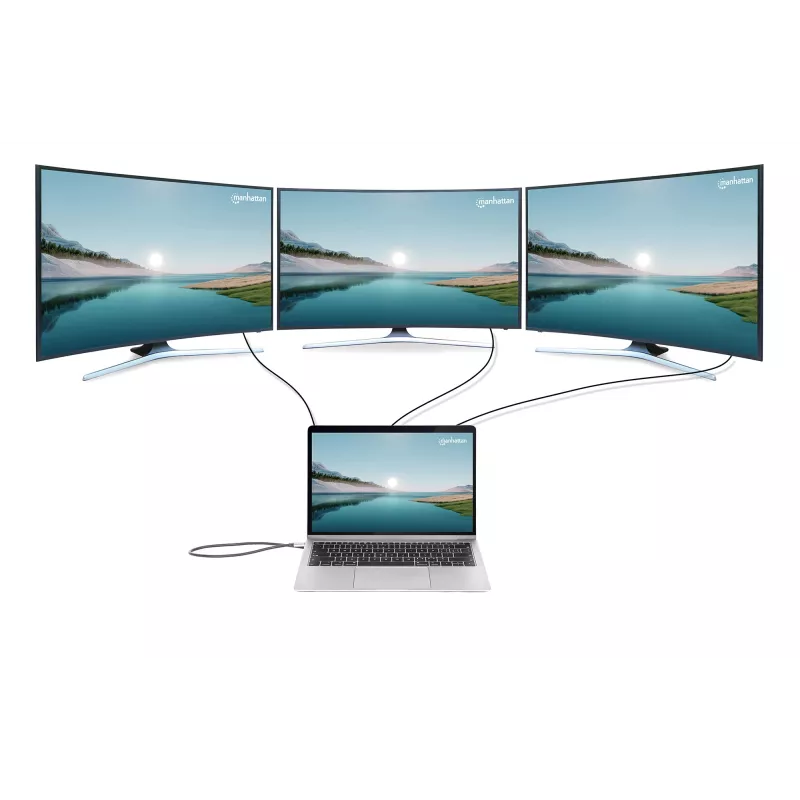

• Video outputs: 2 × HDMI, 1 × DisplayPort — triple 4K display support without down-scaling

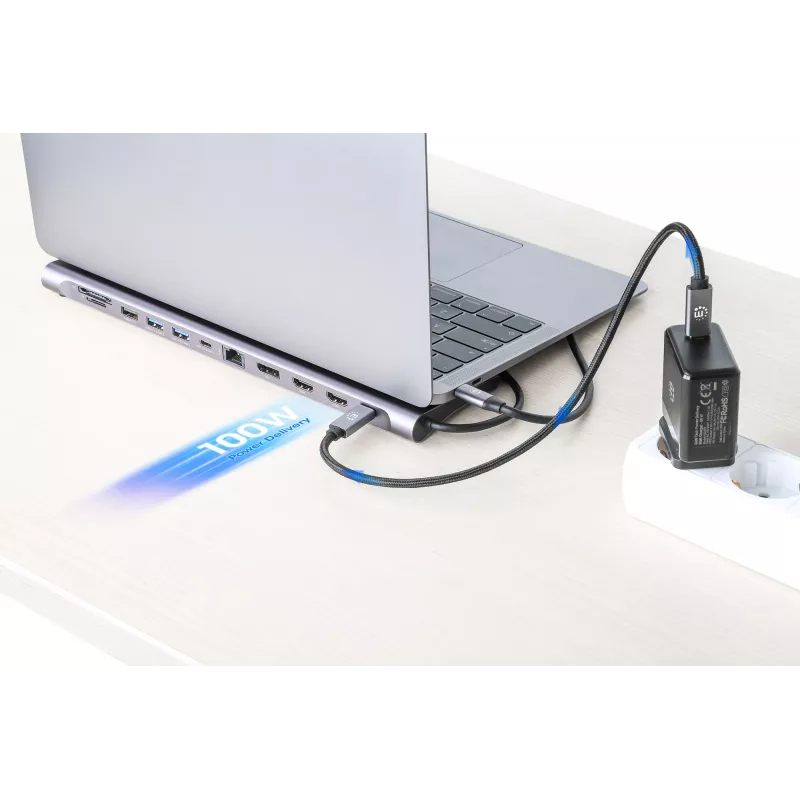

• Power Delivery: USB-C PD up to 100 W
• USB ports: 3 × USB-A (data + charging), 1 × SuperSpeed USB-C (data)
• Ethernet: Gigabit RJ45 (10/100/1000 Mbps)
• Card reader: SD and microSD slots
• Audio: 3.5 mm audio port

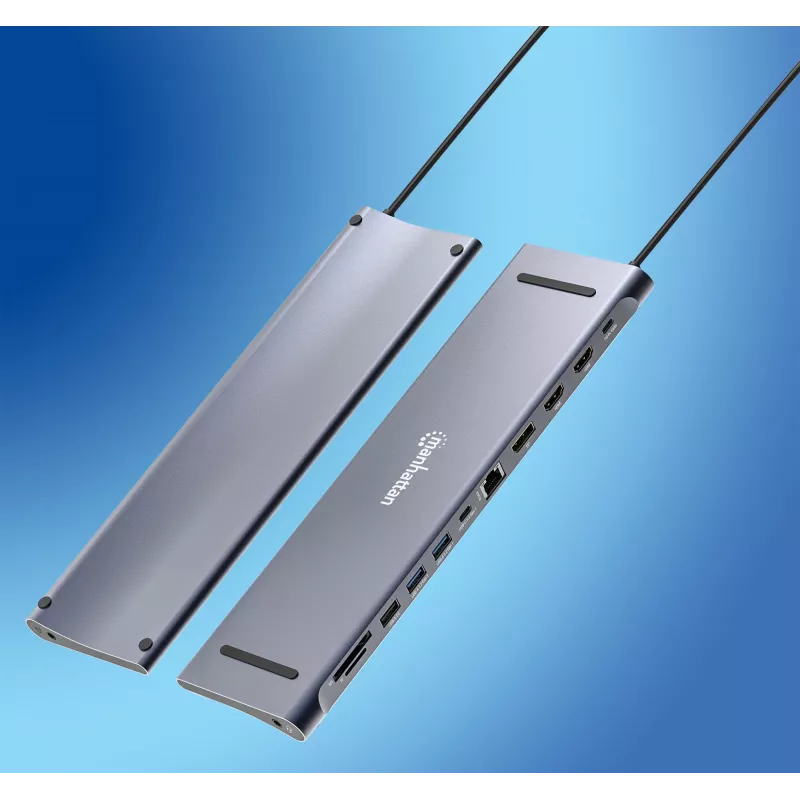

• Housing: aluminum, compact and portable
• Phone compatibility: Android 9+ with USB-C DP Alt Mode for video output

How to use

Connect the adapter to your laptop or MacBook® using the built-in cable or designated connector, then attach up to three external monitors to the two HDMI ports and the DisplayPort. Plug a USB-C PD power adapter into the PD port to provide up to 100 W charging to your notebook while using the docking station. Insert SD or microSD cards into the card slots for file access, connect wired network via the Gigabit RJ45 port, and attach peripherals to the USB-A or SuperSpeed USB-C ports. For phone-to-screen use, connect an Android 9+ smartphone that supports USB-C DP Alt Mode to the adapter and select the appropriate input on the external monitor.

Recommendations

Use a compatible USB-C PD power adapter rated for up to 100 W to ensure full charging capability. When running three 4K displays, verify your host device supports triple 4K output and use high-quality HDMI/DP cables for stable signal and resolution.
