LevelOne OSW-1031 network switch Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Black

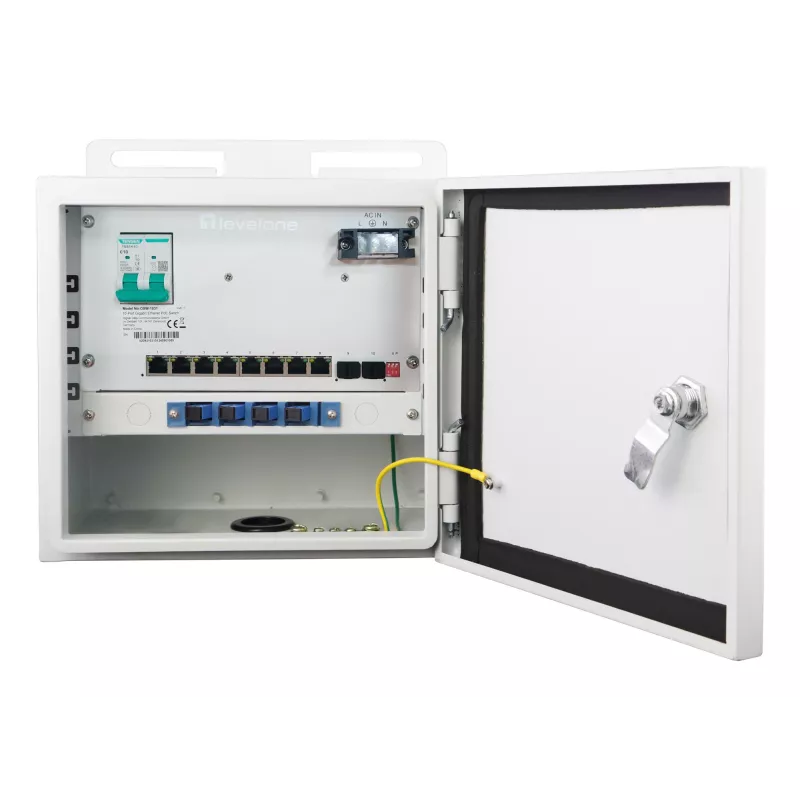

The LevelOne OSW-1031 is an unmanaged 8‑port Gigabit Ethernet PoE switch with two Gigabit RJ45 uplink ports and two Gigabit SFP uplink ports. It supports IEEE 802.3af/at PoE with a maximum PoE budget of 115 W and can supply standard 15.4 W or 30 W per port as required. The switch is built for deployment in outdoor or harsh environments and can be mounted on a wall, pole or inside a cabinet to suit different installation layouts.

Advantages

The OSW-1031 provides flexible power allocation for a variety of powered devices, simplifies installation with PoE compliance and DIP switch configuration for PoE Auto‑Check and VLAN mode, and includes industrial protections such as 6 kV surge and ESD protection. Its unmanaged design delivers plug‑and‑play operation while offering a 20 Gbit/s switching capacity and a MAC address table of 4000 entries for stable network performance.

Suitable for

• Supplying power and network to IP cameras and wireless access points outdoors
• Small to medium outdoor network deployments (gardens, patios, poolsides)
• Outdoor PoE device installations where wall, pole or cabinet mounting is required

Key specifications

• Ports: 8 × 10/100/1000 (2.5G-capable RJ45 per product data) PoE ports; 2 × Gigabit RJ45 uplink; 2 × Gigabit SFP uplink
• PoE standard: IEEE 802.3af/at, PoE budget max 115 W, supports 15.4 W / 30 W per port
• Switching capacity: 20 Gbit/s; MAC address table: 4000 entries
• Data rates: 10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X (auto-negotiation, auto‑MDI/MDIX)
• Protection: 6 kV surge protection; 6 kV contact / 8 kV air ESD protection
• Housing: Weatherproof IP55-rated enclosure
• Included accessories: 4 × SC fiber tray; AC power supply included; DC-in power connector
• Unmanaged operation

How to use

Mount the OSW-1031 on a wall, pole or inside a cabinet in a location that meets the IP55 environmental rating requirements. Connect powered devices to the PoE RJ45 ports and uplink the switch using the RJ45 or SFP ports. Configure PoE Auto‑Check and VLAN mode via the DIP switches on the unit as needed. Provide power using the included AC adapter or appropriate DC‑in source according to the product manual.

Recommendations

Install the switch in a sheltered position when possible, verify PoE budget against the total power draw of connected devices before deployment, and use compatible SFP modules for fiber uplinks. Regularly check mounting fixtures and connections for corrosion or damage in harsh outdoor conditions.
