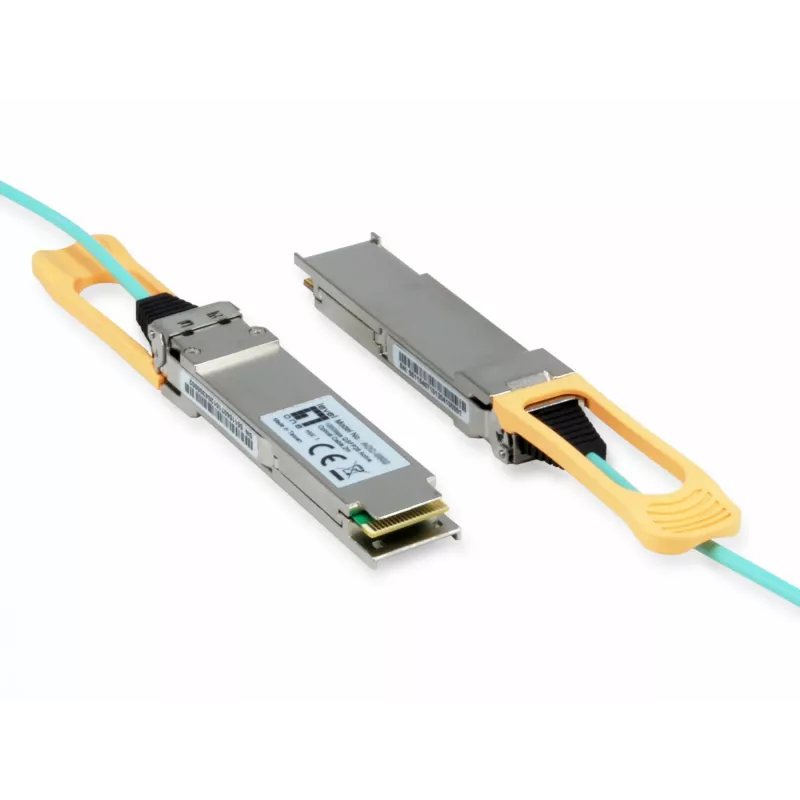

LevelOne AOC-0502 network transceiver module Fiber optic 103100 Mbit/s QSFP28 850 nm

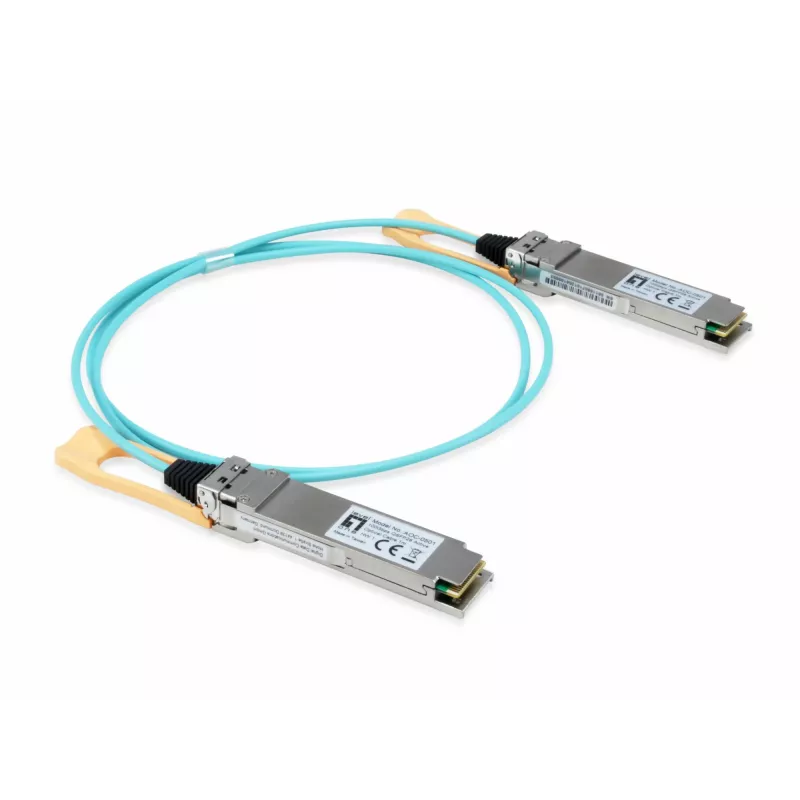

The LevelOne Quad Small Form-factor Pluggable 28 (QSFP28) active optical cable provides high-performance 100G Ethernet connectivity for I/O-intensive applications. The cable integrates four channels and supports up to 100 Gbps aggregate bandwidth using a Chip on Board (COB) design to deliver efficient optical communication and flexible deployment options.

Advantages

The QSFP28 active optical cable combines multi-channel transmission with a compact QSFP28 form factor, enabling high-density 100G links with reduced power consumption and improved signal integrity. The COB technique enhances thermal and electrical performance, making the cable suitable for data centers and other environments that require reliable, high-throughput optical interconnects.

Key specifications

• Form factor: QSFP28
• Type: Active optical cable (AOC)
• Channels: 4
• Maximum aggregate data rate: 100 Gbps
• Technology: Chip on Board (COB)

How to use

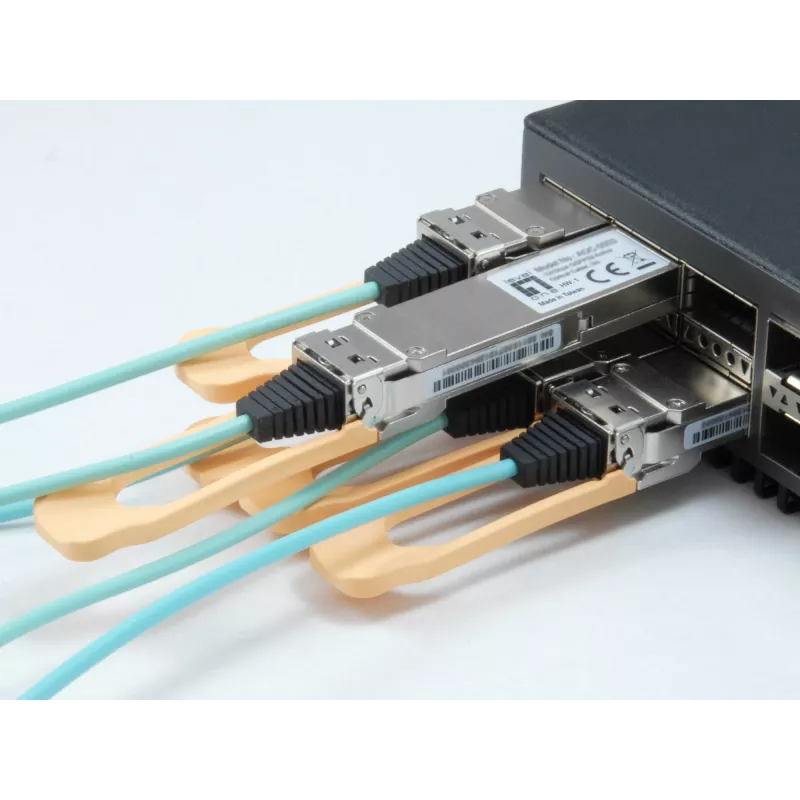

Install the QSFP28 active optical cable by inserting the QSFP28 connector into compatible switch, router or server ports designed for 100G QSFP28 modules. Ensure ports are powered down or follow hot-plugging guidelines from the equipment vendor if supported. Verify link status and configuration in the host device after connection to confirm proper operation.

Recommendations

Use this QSFP28 AOC in environments with compatible 100G QSFP28 ports and follow manufacturer guidelines for handling optical cables. For long-term reliability, avoid excessive bending of the cable and maintain appropriate airflow and cooling around connected equipment.
