Docking Station i-tec CAINTGDUAL4KDOCPD Dual Display Power Delivery 100W

A high-performance universal docking station with full remote management capability, designed for office and professional use. The dock includes a dedicated LAN port that enables remote control of the device, including individual port-level management. Remote management software for Windows is available as an optional add-on and can be purchased separately; the dock retains full local functionality without the software. Manageability works without a host connection — only power and LAN are required. The docking station supports fast USB Gen 2 ports with fast charging and can drive up to two external monitors at up to 4K/60 Hz. It is compatible with most notebooks and tablets through USB-A, USB-C, USB4 and Thunderbolt 3/4/5 connections and supports current major operating systems.

Advantages

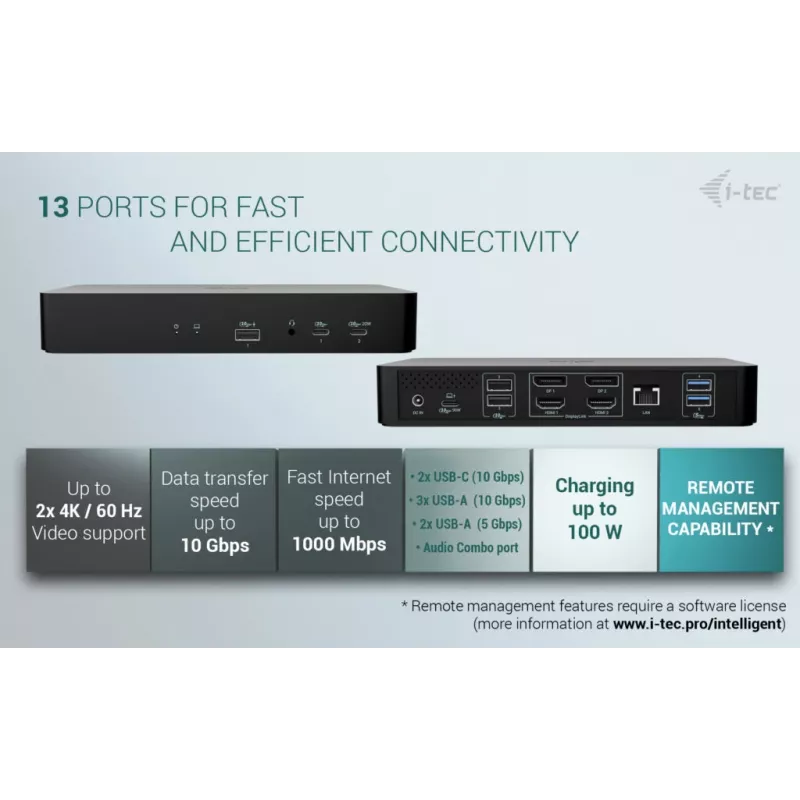

The dock provides a wide set of connectivity options including 2 DisplayPort and 2 HDMI outputs, multiple high-speed USB ports, an intelligent Gigabit Ethernet RJ-45 for reliable network access and a combo audio jack with high-quality 32-bit/192 kHz sampling. It delivers up to 100 W power delivery to charge compatible laptops and tablets, supports mounting behind a monitor, and includes security and energy-saving features such as a Kensington lock slot and a power switch on the dock. Remote manageability allows IT administrators to control and troubleshoot devices centrally without physical access.

Key specifications

• Supports connection to up to 2 external monitors at resolutions up to 4K/60 Hz
• Power delivery: up to 100 W (charging not supported when connected via USB-A host)

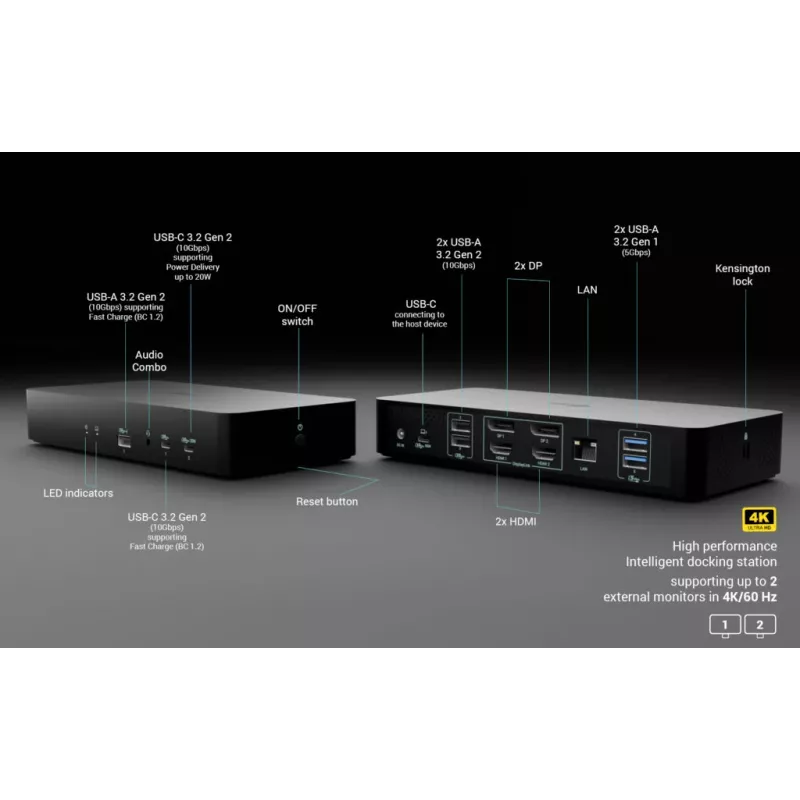

• Video outputs: 2x DisplayPort, 2x HDMI
• USB ports: 2x USB-C Gen 2 (10 Gbps) — one with 20 W PD, 1x USB-A 3.2 Gen 2 (10 Gbps) with Fast Charge 7.5 W, 2x USB-A 3.2 Gen 2 (10 Gbps), 2x USB-A 3.2 Gen 1 (5 Gbps)
• Intelligent Gigabit Ethernet RJ-45 supporting 10/100/1000 Mbps with remote management
• Combo 3.5 mm audio jack (32-bit / 192 kHz sampling)
• Kensington lock slot for physical security
• Dock power switch for energy savings
• Supported OS: Windows 10 / 11, macOS, Android 5 or later, Chrome OS R51 or later, Linux Ubuntu
• Host interface: USB 3.2 Gen 1 (Type-C)

How to use

Connect the docking station to power and to your network via the integrated RJ-45 port to enable manageability features. Attach the host device using any supported host interface (USB-C/USB4/Thunderbolt for full charging and video capabilities; USB-A will provide data but not host charging). Connect external monitors to the DisplayPort or HDMI outputs according to your display requirements and set the desired resolution in the host operating system. Plug USB peripherals into the available USB-A or USB-C ports. Use the dock power switch to turn the dock on or off when not in use. If remote management is needed, purchase and install the optional remote management software for Windows and follow the vendor instructions to register and configure the dock on the network.

Recommendations

For full charging and maximum functionality, connect the host with a USB-C, USB4, or Thunderbolt cable rather than USB-A. Use the dedicated Ethernet connection to ensure reliable network performance and enable remote management if centralized control is required. Verify host OS compatibility and update display drivers for optimal multi-monitor performance.
