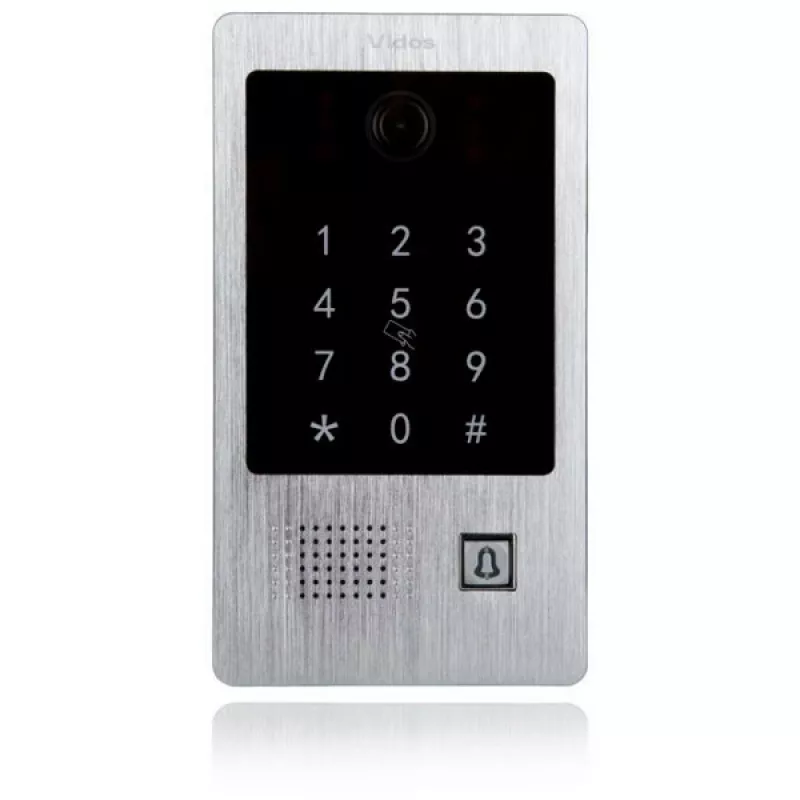

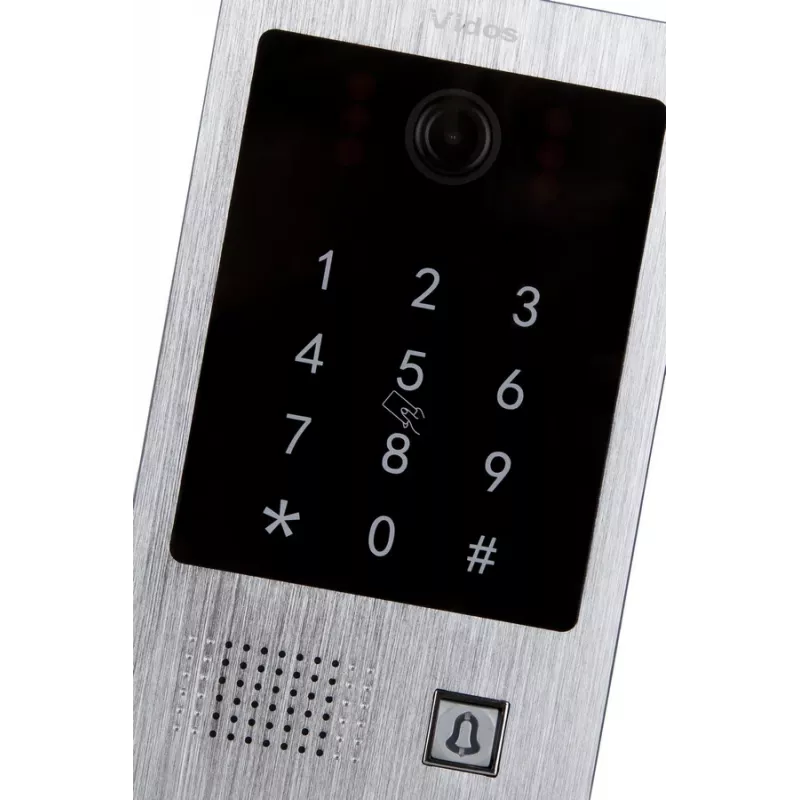

VIDOS S20DA Outdoor Door Panel - 1/3 inch CMOS, 600 TVL, IR Night Vision, 4-Wire, IP54, Silver

The VIDOS S20DA is a high-quality outdoor door panel designed for single-family video intercom systems. Featuring a 1/3" CMOS camera with 600 TVL resolution and IR night vision, it ensures clear identification of visitors day and night. The panel is built with a durable aluminum alloy housing and has an IP54 rating, making it resistant to dust and water splashes. It supports two-way audio communication and includes one call button and one relay output for door/gate control. The S20DA operates on a 4-wire system and is compatible with VIDOS video intercom monitors. Surface mount installation is straightforward.

Advantages

Reliable and robust construction with aluminum alloy housing and IP54 protection. Clear video quality with 600 TVL resolution and IR LEDs for night vision. Easy integration with existing VIDOS 4-wire intercom systems. Two-way audio enables convenient communication with visitors.

Suitable for

• Single-family homes requiring a durable outdoor door panel
• Integration with VIDOS video intercom systems
• Applications needing night vision and weather-resistant design

Key specifications

• Camera: 1/3" CMOS, 600 TVL, fixed 3.6mm lens, 90° horizontal viewing angle
• Night vision: Infrared LEDs
• Connectivity: 4-wire system
• Call buttons: 1
• Door/gate control: 1 relay output (NO/NC)
• Housing: Aluminum alloy, IP54
• Mounting: Surface mount
• Power supply: DC 12-15V (from monitor)
• Operating temperature: -25°C to +50°C
• Backlight for name tag

Recommendations

For optimal performance, use with compatible VIDOS monitors and ensure proper wiring according to the 4-wire system. The panel is designed for surface mounting on walls; ensure the mounting surface is flat and secure.
