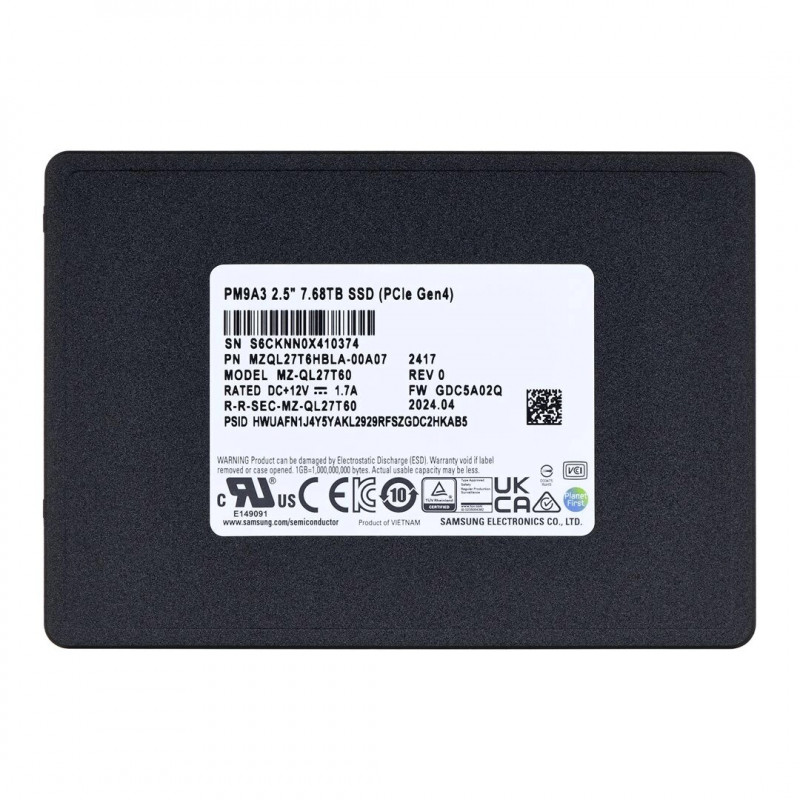

Samsung PM9A3 7.68TB 2.5 inch Server SSD, OEM (MZQL27T6HBLA-00A07)

The Samsung PM9A3 is a 7.68 TB internal SSD designed for server and workstation use. It features a U.2 form factor and PCI Express 4.0 interface with NVMe support, delivering read speeds up to 6800 MB/s and write speeds up to 4100 MB/s.

Key features

• 7.68 TB storage capacity
• SSD with U.2 form factor
• PCI Express 4.0 interface with NVMe
• Read speed up to 6800 MB/s
• Write speed up to 4100 MB/s
• Random read (4KB): 1100000 IOPS
• Random write (4KB): 200000 IOPS
• End-to-end data protection
• Hardware encryption with 256-bit AES-XTS
• S.M.A.R.T. support
• MTBF: 2,000,000 hours
• Operating temperature: 0 - 70 °C

Specifications

• Brand: Samsung
• MPN: MZQL27T6HBLA-00A07
• SSD series: PM9A3
• Total storage capacity: 7.68 TB
• Storage media: SSD
• Read speed: 6800 MB/s
• Write speed: 4100 MB/s
• Interface: PCI Express 4.0
• NVMe: Yes
• Component for: Server/workstation
• Memory type: MLC
• SSD form factor: U.2
• Random read (4KB): 1100000 IOPS
• Random write (4KB): 200000 IOPS
• Mean time between failures (MTBF): 2000000 h
• Operating temperature (T-T): 0 - 70 °C
• Storage temperature (T-T): -40 - 85 °C
• Operating relative humidity (H-H): 5 - 95%
• Non-operating shock: 1500 G
• Non-operating vibration: 20 G
• Operating voltage: 12 V
• Power consumption (idle): 3.5 W
• Power consumption (max): 13.5 W
• Security algorithms: 256-bit AES-XTS
• End-to-End Data Protection: Yes
• Hardware encryption: Yes
• S.M.A.R.T. support: Yes
• Uncorrectable Bit Error Rate (UBER): < 1 per 10^17 bits read
• Depth: 7 mm
• Height: 100 mm
• Width: 70 mm
• Product Net Weight: 0.02 kg
• Harmonized System (HS) code: 84717070
