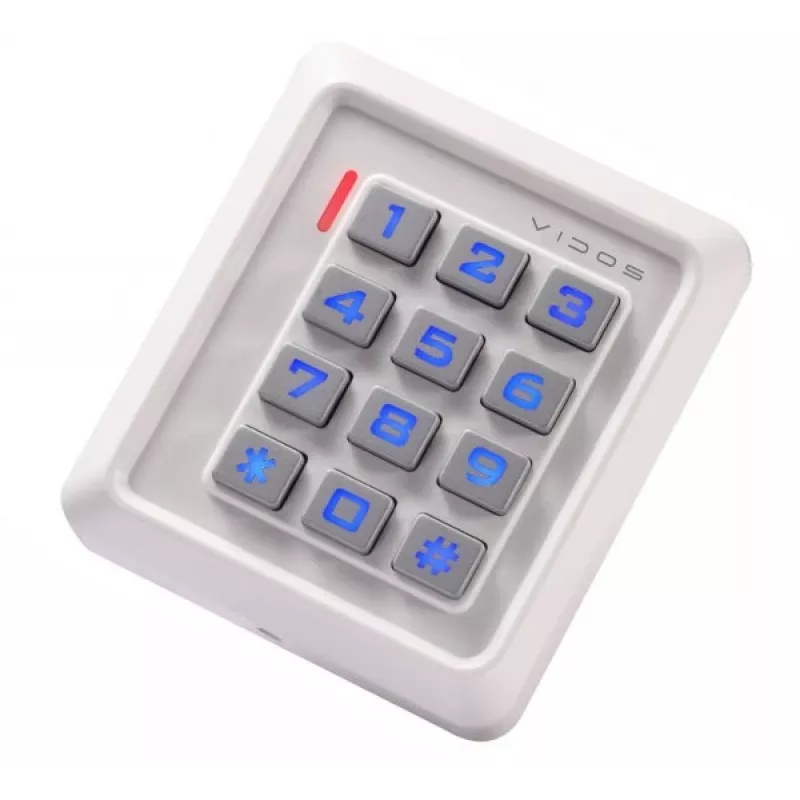

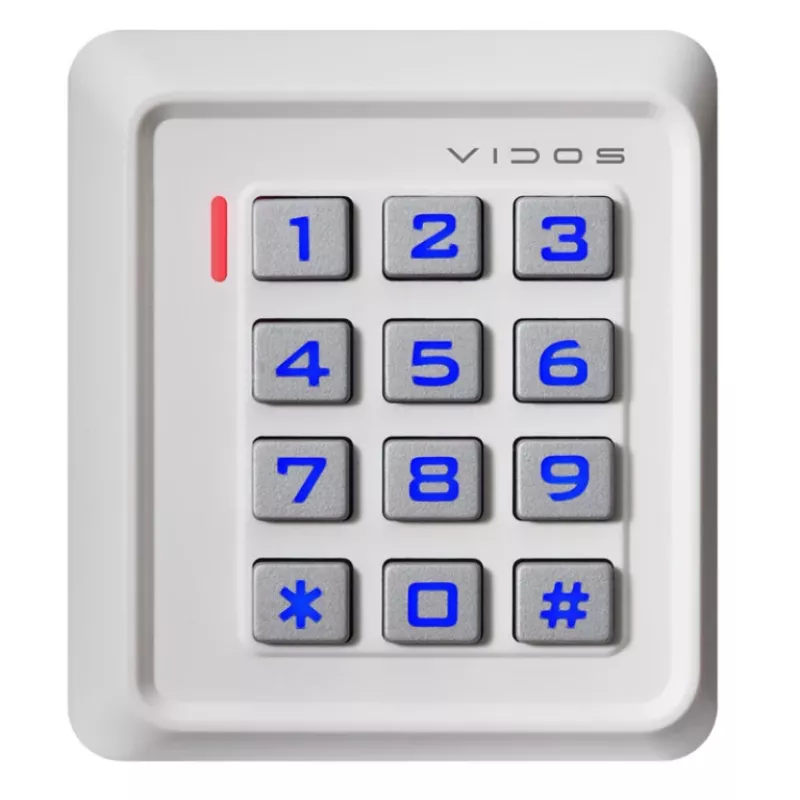

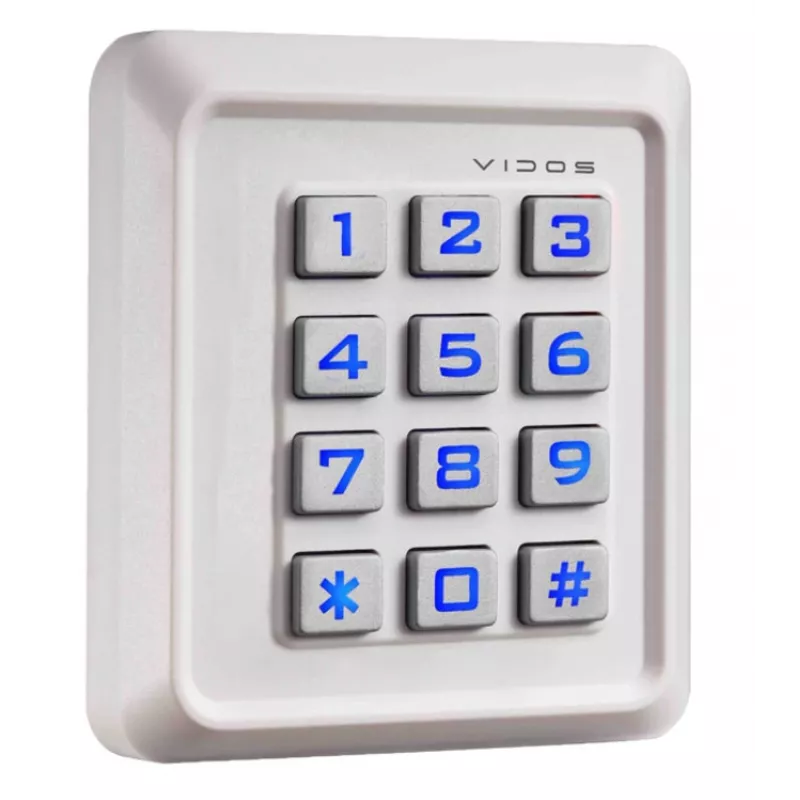

VIDOS ZS40W PIN Code and RFID Proximity Card Access Control Reader, IP68, Zinc Alloy, 2000 Users

The VIDOS ZS40W is a robust and versatile access control reader designed for secure entry management in demanding environments. Combining PIN code and RFID proximity card authentication, it offers flexible access control for up to 2000 users. With an IP68 waterproof rating and durable zinc alloy housing, this reader is built to withstand harsh outdoor conditions. The capacitive touch keypad with backlight ensures easy operation even in low light, while the built-in buzzer and multi-color LED provide clear status feedback.

Advantages

Dual authentication methods (PIN and 125 kHz RFID) enhance security and convenience. The IP68 rating guarantees reliable performance in rain, dust, and extreme temperatures from -40°C to +60°C. Surface mount installation simplifies setup, and the Wiegand 26-bit interface ensures compatibility with most access control systems. Alarm functions (tamper, door open, forced entry) add an extra layer of security.

Suitable for

• Outdoor gates and doors in residential and commercial buildings
• Industrial facilities requiring waterproof and durable access control
• Office entrances, parking lots, and storage areas
• Integration with existing Wiegand-based access control systems

Key specifications

• Access Methods: PIN Code, RFID Proximity Card (125 kHz, EM-Marin compatible)
• User Capacity: 2000 users (PINs or Cards)
• Power Supply: DC 12V
• Relay Output: NO/NC/COM, Max 3A
• Wiegand Interface: 26-bit Input/Output
• Housing Material: Zinc Alloy
• IP Rating: IP68
• Keypad: Capacitive Touch, Backlit
• Operating Temperature: -40°C to +60°C
• Adjustable Door Open Time: 0-99 seconds
• Alarm Functions: Tamper Alarm, Door Open Alarm, Forced Entry Alarm
• Current Consumption: Standby <30mA, Operating <60mA
• Installation: Surface Mount
• LED Indicator: Multi-color Status LED
• Built-in Buzzer: Yes
• Output Protection: Short Circuit Protection

Recommendations

For optimal performance, use with a regulated DC 12V power supply. Ensure proper surface mounting and sealing to maintain IP68 integrity. Compatible with most Wiegand 26-bit controllers.
