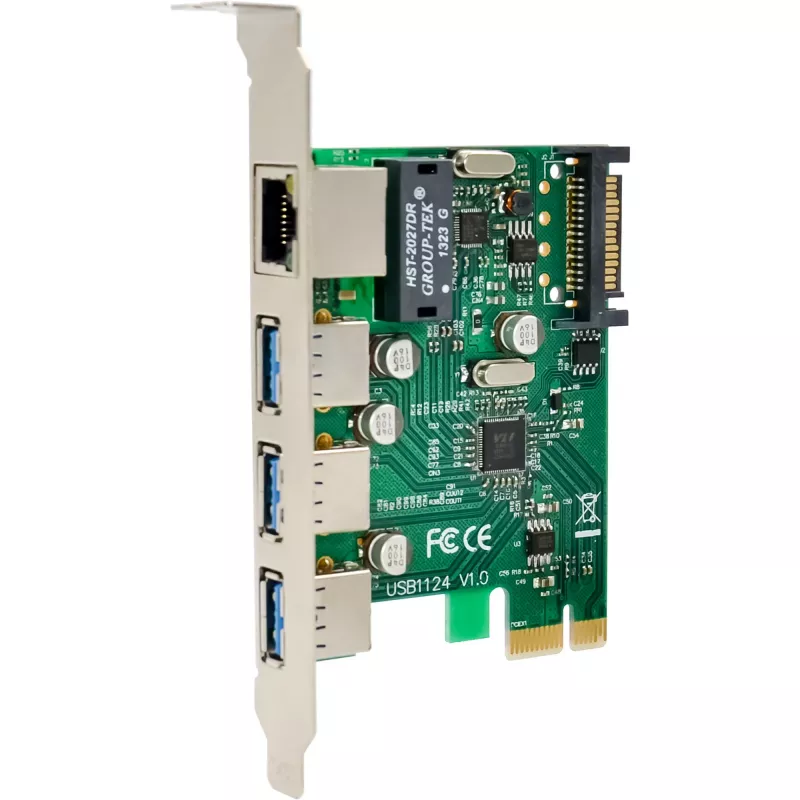

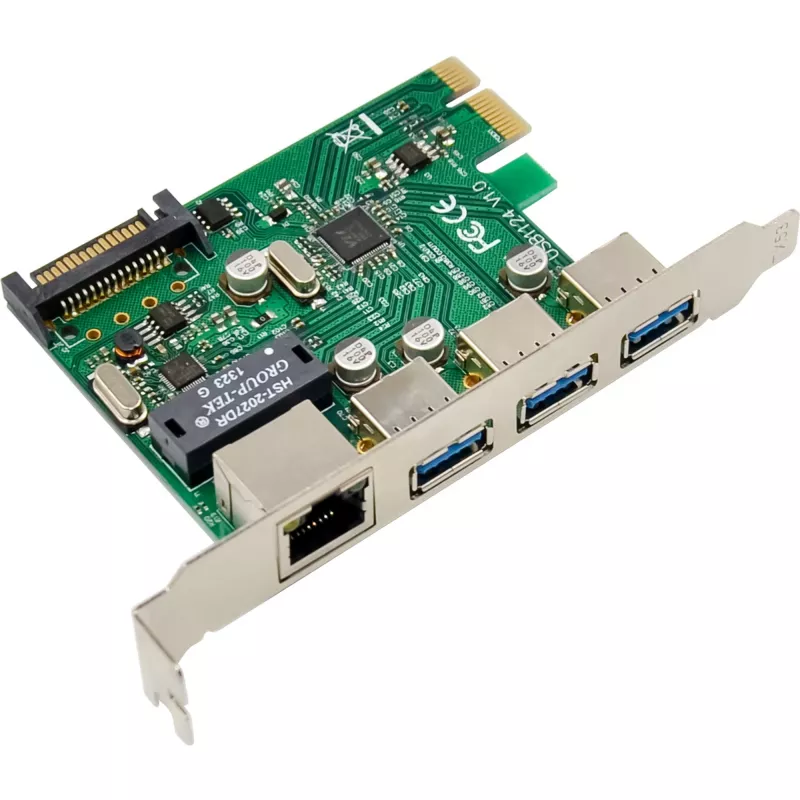

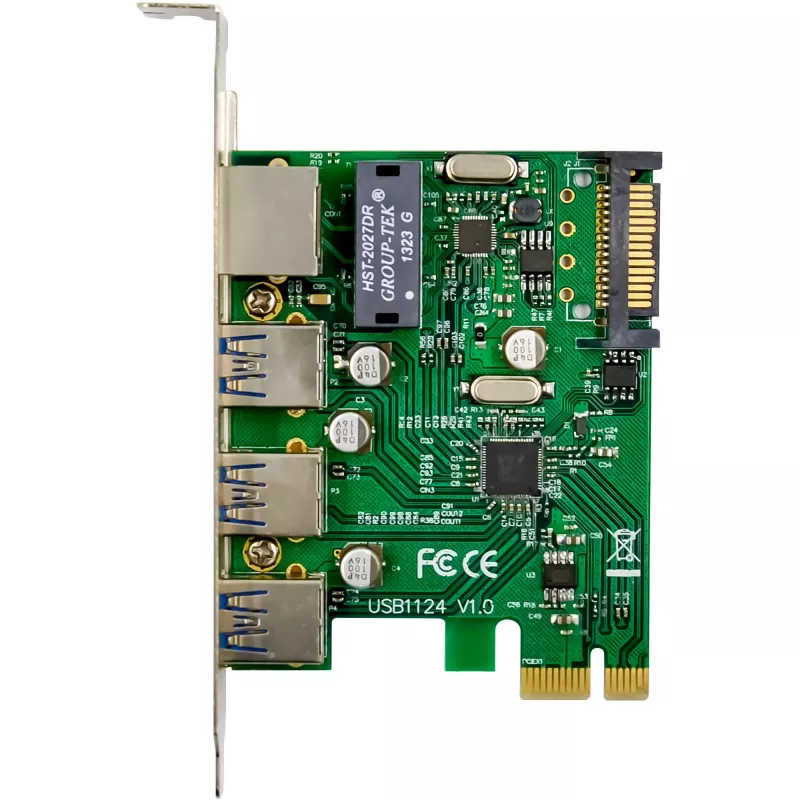

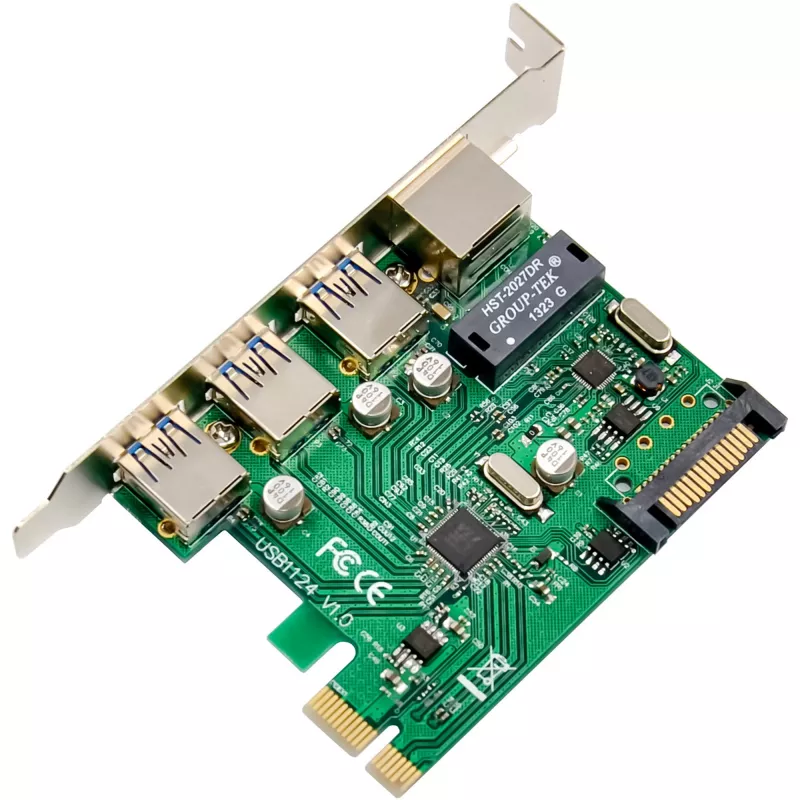

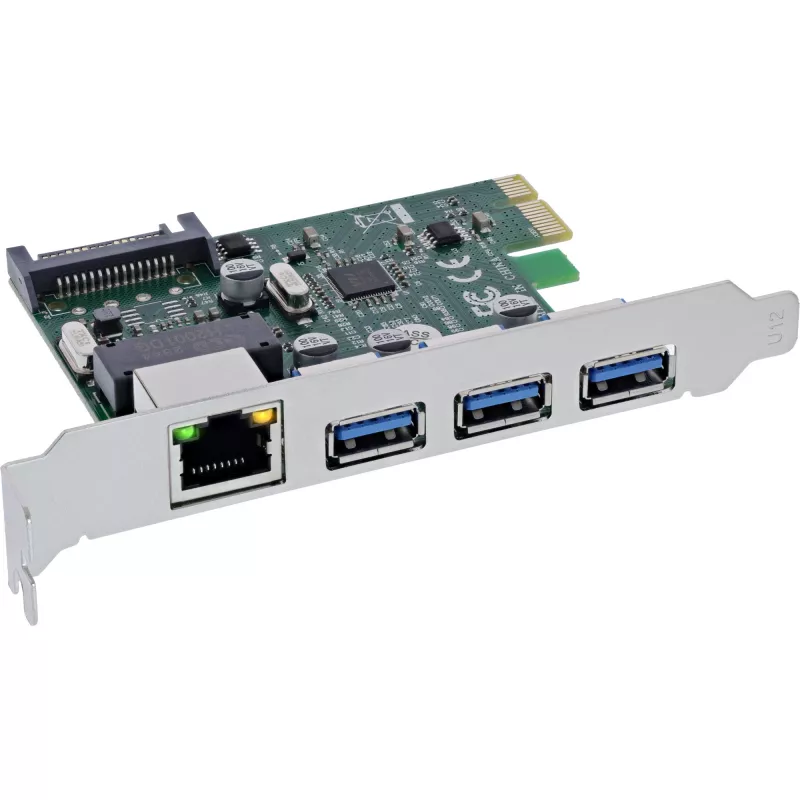

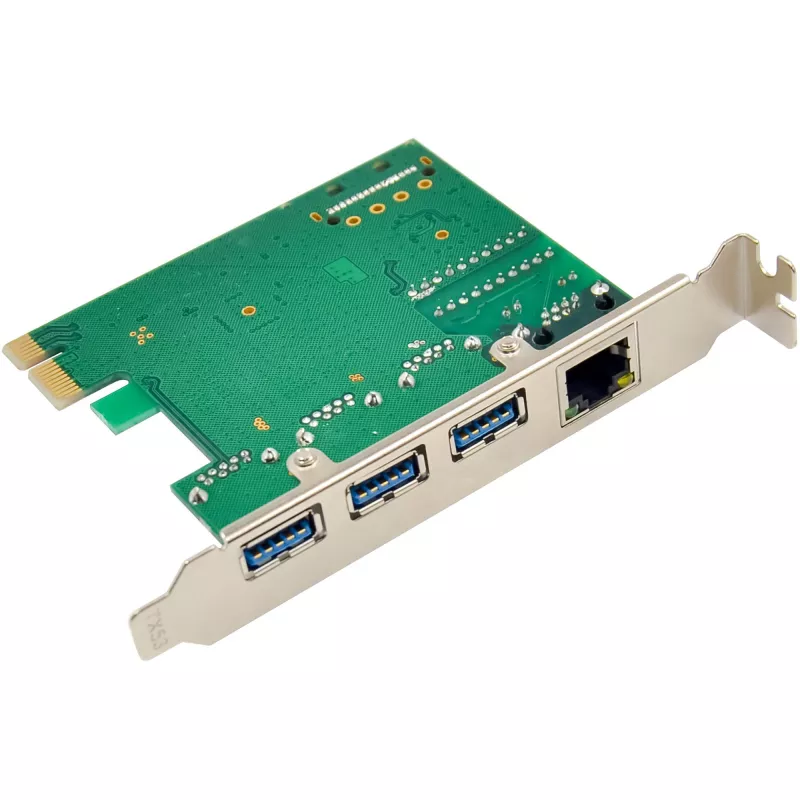

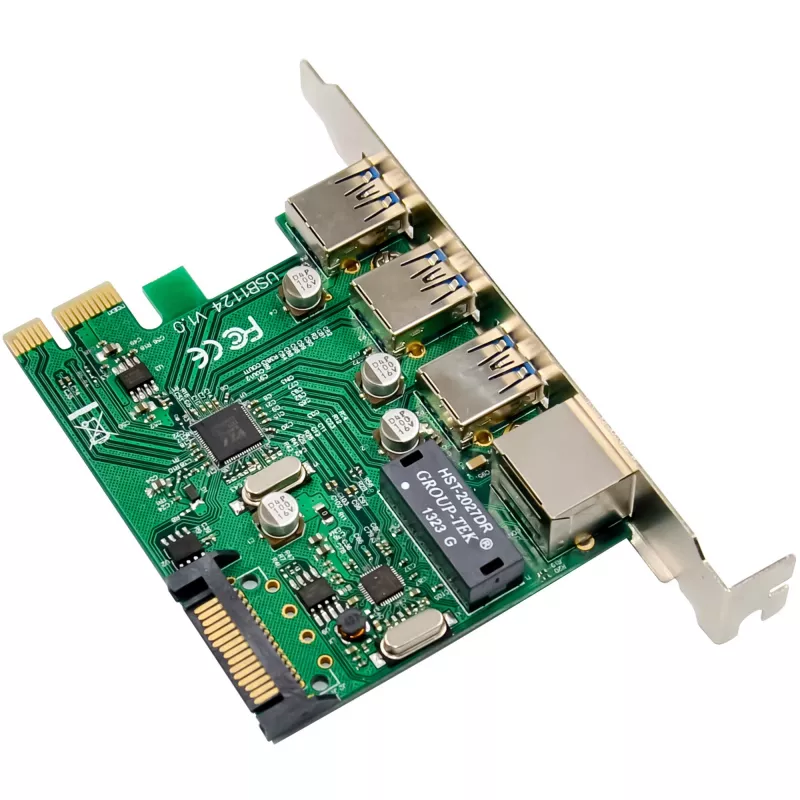

Network Card InLine 51125R Ethernet 1000 Mbit/s PCI Express

Combined network and USB extensionfor flexible system customization
1x RJ45 Gigabit Ethernetwith auto-negotiation for stable connections
3x USB 3.2 Gen.1 portswith up to 5 Gb/s data rate
PCIe x1 interfacefor easy installation and broad compatibility
Supports Wake-on-LAN, Jumbo Frames & modern network protocols

The InLine® combo cardexpands your system with a high-performance Gigabit network connectionand three fast USB 3.2 Gen.1 ports. Ideal for virtualization, data transfers and energy-efficient network applications.
The RJ45 connectorenables a Gigabit Ethernet connectionwith auto-negotiation and supports IPv4, IPv6, Wake-on-LAN (WOL), Jumbo Framesand modern network protocols.
The USB 3.2 Gen.1 portsachieve transfer rates of up to 5 Gb/sand support Plug & Play and hot-plug functionality. Thanks to the additional 15-pin power connector, a stable power supply to the USB ports is ensured.
Technical data:

Bus type: PCIe v2.1 (5.0 GT/s) 1-lane
Ports: 1 x RJ45 (Gigabit LAN), 3 x USB 3.2 Gen.1 (USB-A, 5 Gb/s)
Data rate RJ45: 10/100/1000 Mb/s (Gigabit Ethernet)
Supported speeds:
10/100 Mb/s in half-duplex mode
10/100/1000 Mb/s in full-duplex mode
Data rate USB-A: 5 Gb/s
Power supply: 15-pin power connector for additional power supply of the USB ports
Chip set: VIA VL805 (USB), Realtek RTL8153 (LAN)
Supported protocols: IPv4, IPv6
Dimensions: 75 mm x 80 mm (PCIe board)

Network & protocol support:

Supported IEEE standards:

IEEE 802.3, 802.3u, 802.3az (Ethernet standards)
IEEE 802.3x (flow control)
Supports reliable data transmission and power-saving mechanisms

USB 3.2 Gen.1 interface - 3x USB-A ports:

Maximum power: 5 V / 900 mA per port
Compatibility: Plug & Play and hot-pluggable

Features:

Auto-negotiation (10/100/1000 Mb/s)
Wake-on-LAN (WOL) & remote wakeup
Support for jumbo frames (up to 9K)
UDP/TCP & IP checksum offloading
Virtual Machine Device Queues (VMDq, up to 8 VMs)
Interrupt throttling control

Operating system support:

Windows: 11, 10, 8, 7
Windows Server: 2008 R2, 2016, 2019, 2021
Linux: from kernel version 2.6.30

Environmental conditions:

Operating temperature: 0 °C to 55 °C
Storage temperature: -40 °C to 70 °C
Maximum humidity: 90 %

Scope of delivery:

1x InLine® combo card Gigabit network
1x driver CD
1x operating instructions (German/English)

InLine 51125R. Host interface: PCI Express. Country of origin: Taiwan. Chipset: Realtek RTL8153. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Linux operating systems supported: Kernel 2.6.31, Kernel 2.6.33, Kernel 3.12, Kernel 3.17, Kernel 3.3, Kernel 4.6.4, Server operating systems supported: Windows Server 2008 R2, Windows Server 2016, Windows Server 2019. Width: 75 mm, Depth: 80 mm

How to use

Turn off the computer and install the card into an available PCIe x1 slot on the motherboard. Connect the RJ45 cable to your network and, if required, attach the 15-pin power connector to provide additional power to the USB ports. Power on the system, install drivers from the included CD or the vendor website, and verify that the LAN and USB ports are recognized by the operating system. Configure network settings (IP, WOL, jumbo frames) in the OS or network management tools as needed.

Recommendations

For stable high-speed transfers, use quality Cat5e or Cat6 Ethernet cables and connect USB devices that require significant power only after attaching the additional 15-pin power connector. Enable Wake-on-LAN and jumbo frames in both OS and network equipment when required by your application.
