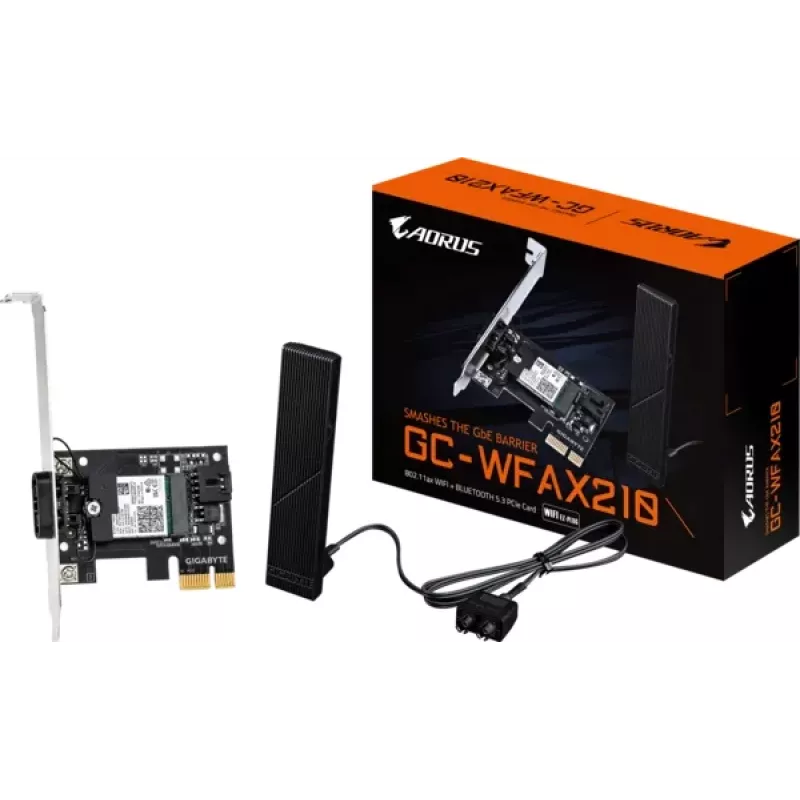

GIGABYTE GC-WFAX210 Wi-Fi 6E PCIe x1 Expansion Card with Bluetooth 5.2

Upgrade your desktop PC with the GIGABYTE GC-WFAX210 expansion card, featuring the latest Intel Wi-Fi 6E AX210 chipset for blazing-fast wireless connectivity. This PCI Express x1 card delivers tri-band Wi-Fi 6E (2.4 GHz, 5 GHz, 6 GHz) with speeds up to 2400 Mbps on the 5 GHz and 6 GHz bands, plus Bluetooth 5.2 for seamless peripheral connections. The included external high-gain antennas ensure strong signal reception, while the low-profile bracket allows installation in compact cases.

Advantages

Experience next-generation Wi-Fi 6E performance with reduced latency and increased capacity, ideal for gaming, streaming, and large file transfers. Bluetooth 5.2 provides enhanced range and stability for wireless mice, keyboards, and headphones. The card is backward compatible with older Wi-Fi standards and supports WPA3 security for robust protection.

Suitable for

• Desktop PC users seeking Wi-Fi 6E upgrade
• Gamers requiring low-latency wireless connection
• Home office setups needing reliable Bluetooth connectivity
• Small form factor builds with low-profile bracket

Key specifications

• Interface: PCI Express x1
• Chipset: Intel Wi-Fi 6E AX210
• Wireless Standard: Wi-Fi 6E (802.11ax)
• Bluetooth Version: 5.2
• Frequency Bands: Tri-Band (2.4 GHz, 5 GHz, 6 GHz)
• Max Data Rate: Up to 574 Mbps (2.4 GHz), 2400 Mbps (5 GHz), 2400 Mbps (6 GHz)
• MIMO Configuration: 2x2 (2T2R)
• Antenna Type: External, Detachable High-Gain (2x RP-SMA)
• Security: WPA3, WPA2, WPA
• Key Technologies: OFDMA, MU-MIMO, 1024-QAM
• Operating System Support: Windows 10 (64-bit), Windows 11 (64-bit)
• Form Factor: PCIe Add-in Card
• Included Brackets: Full-height (pre-installed), Low-profile
• Internal Connectivity: USB 2.0 header required for Bluetooth

Recommendations

For optimal performance, ensure your motherboard has an available PCIe x1 slot and a USB 2.0 header for Bluetooth functionality. The card is compatible with Windows 10 and 11 64-bit systems. Ideal for users wanting to leverage the 6 GHz band for interference-free connectivity.
