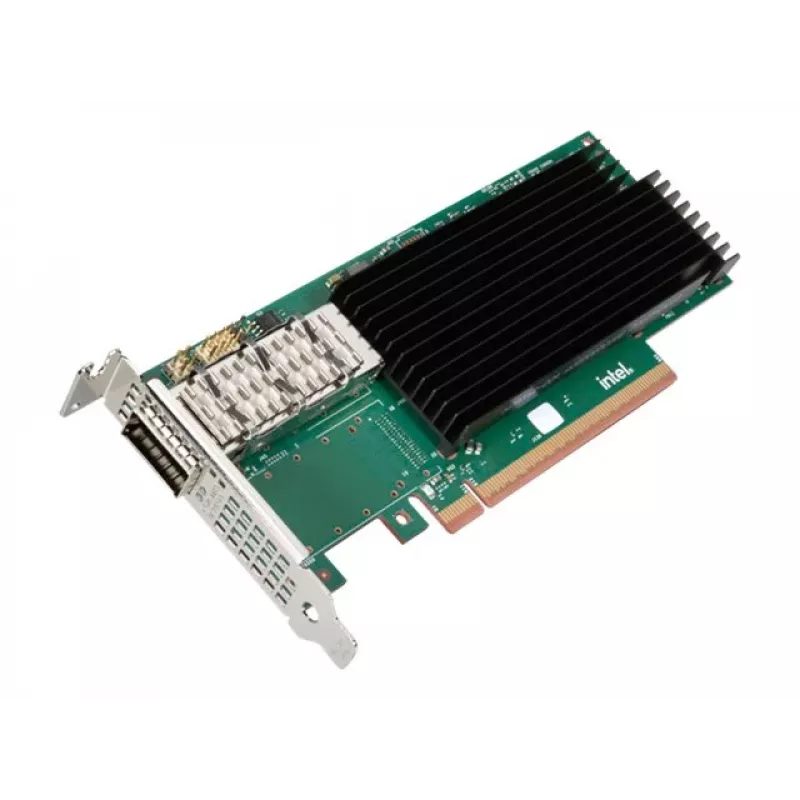

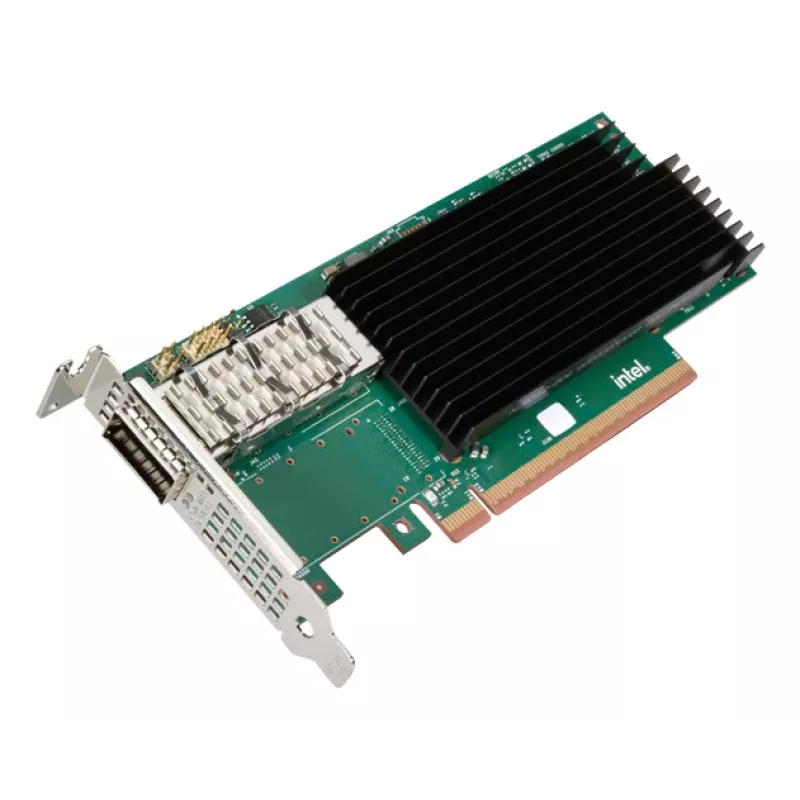

Intel Ethernet Network Adapter E835-CCQDA1 - Network Adapter - PCIe 4.0 x16 / PCIe 5.0 x8 - 200 Gigabit QSFP28 x 1 - Single Pack

The Intel Ethernet Network Adapter E835-CCQDA1 is a high-performance 200 Gigabit Ethernet network adapter designed for demanding data center and enterprise environments. Featuring a single QSFP-DD port and supporting PCI Express 5.0 x8 (backward compatible with PCIe 4.0 x16), this adapter delivers exceptional throughput and low latency for bandwidth-intensive applications such as AI, machine learning, high-performance computing, and large-scale virtualization.

Advantages

Unmatched 200 GbE performance with advanced features like iWARP RDMA, RoCEv2, SR-IOV, and ADQ (Application Device Queues) ensures efficient data processing and reduced CPU overhead. The adapter supports both low-profile and full-height brackets for flexible deployment in various server form factors. Energy Efficient Ethernet (EEE) and Time Sync (PTP) enhance power efficiency and network synchronization.

Suitable for

• Data centers requiring high-speed connectivity for server-to-server and server-to-storage links
• Cloud service providers and enterprise networks needing scalable, low-latency networking
• High-performance computing clusters and AI/ML workloads
• Virtualized environments leveraging SR-IOV and VMDq for efficient resource allocation

Key specifications

• Connectivity Technology: Wired
• Host Interface: PCI Express 5.0 x8 (backward compatible with PCIe 4.0 x16)
• Data Link Protocol: 200 Gigabit Ethernet
• Ports: 1 x QSFP-DD
• Controller Processor: Intel Ethernet Controller E835
• Form Factor: Plug-in Card (Low Profile MD2)
• Network Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3bm, IEEE 802.3cd, IEEE 1588
• Features: iWARP RDMA, RoCEv2, SR-IOV, VMDq, FCoE, iSCSI, PXE Boot, Jumbo Frames (up to 9.5KB), Energy Efficient Ethernet (EEE), Time Sync (PTP), ADQ, DDP, DPDK
• Supported Operating Systems: Windows Server, Linux, VMware ESXi, FreeBSD
• Power Consumption (Typical): 15.5W (max)
• Bracket Type: Low-profile and Full-height brackets included
• Cabling Type: QSFP-DD Direct Attach Copper (DAC) or Active Optical Cables (AOC)
• LED Indicators: Link/Activity LED

Recommendations

For optimal performance, pair this adapter with compatible QSFP-DD transceivers or cables and ensure your server has a PCIe 4.0 or 5.0 slot. The included low-profile bracket allows installation in 1U servers, while the full-height bracket suits standard rack-mount servers.
