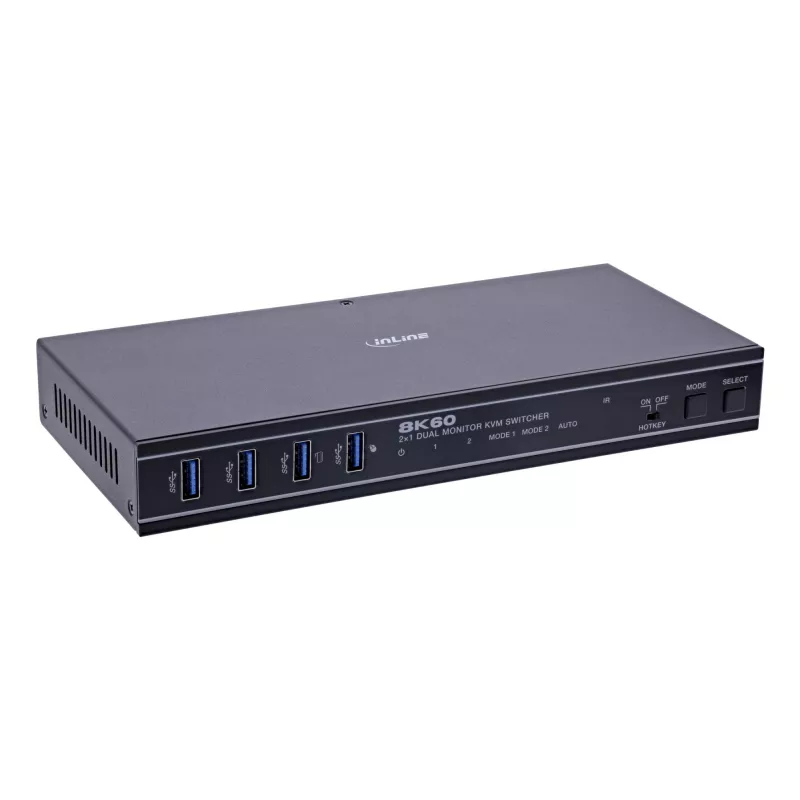

InLine 57885H KVM switch Rack mounting Black

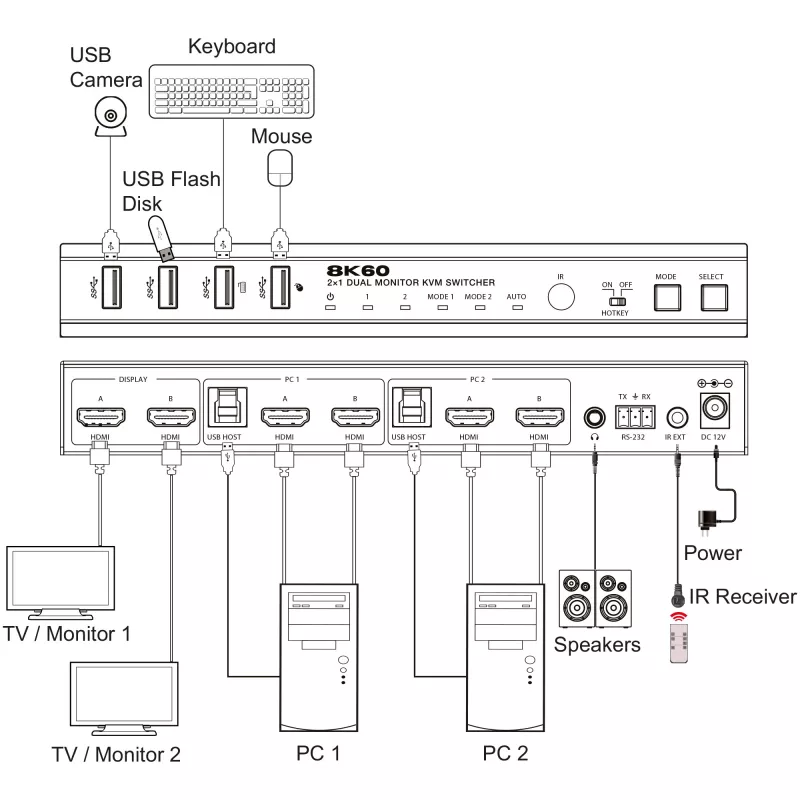

Conveniently control two PCs:Use one workstation with two monitors, one keyboard, one mouse and multiple USB devices for both computers.
Highest resolutions up to 8K@60Hz:Supports HDMI 2.1, HDR10, Dolby Vision and enables crystal-clear images for gaming, image editing or presentations.
Flexible switching without delay:Switch quickly between two PCs via hotkey, button, IR remote control or RS-232 – without reconnecting cables.
Integrated USB 3.2 hub:Four USB ports plus two hotkey USB ports for flexible use of keyboard, mouse and peripherals – ideal for versatile applications.
Robust metal housing and plug & play:Easy installation without drivers, high-quality design – perfect for professional and private use.

The InLine KVM Switch, 2-port, HDMI 2.1, Dual Monitor, 8K60Hz allows you to control two PCs from a single workstation with two monitors, one keyboard, one mouse and multiple USB devices.
Switching between the two computers is convenient via hotkey, button, IR remote control or RS-232 – without time-consuming cable reconnections. Thanks to HDMI 2.1 technology and a maximum resolution of 8K at 60Hz, you benefit from impressive image quality and smooth display.
The KVM switch supports HDR10, Dolby Vision and other modern video and audio formats – ideal for gaming, graphics editing, presentations or control rooms.
With four USB 3.2 Gen.1 ports and two additional hotkey USB ports, you can conveniently use a keyboard, mouse and other peripheral devices. The robust metal housing, high transmission bandwidth of up to 40 Gb/s and simple plug & play installation make the switch a future-proof solution for private and professional users.

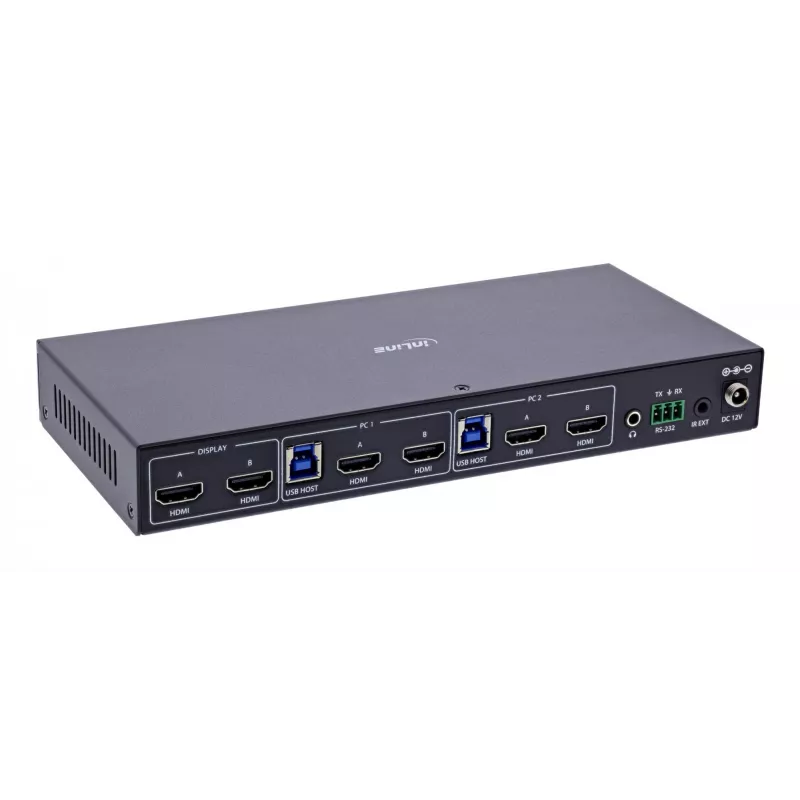

Inputs:
– 4 × HDMI (2 per PC, type A, 19-pin)
– 2 × USB host (USB-B)
Outputs:
– 2 × HDMI (type A, 19-pin)
– 1 × L/R audio output (3.5 mm stereo)
Video resolutions: up to 8K@60Hz, 4K@120Hz/144Hz, 1080p@240Hz
Video bandwidth: up to 40 Gb/s
HDR support: HDR, HDR10, HDR10+, Dolby Vision, HLG
Colour depth: 8 / 10 / 12 bits
Colour spaces: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
HDMI version: HDMI 2.1
HDCP version: HDCP 2.3
Audio formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
Latency: no video or audio delay
CEC support: yes
USB ports:
– 4 × USB 3.2 Gen.1 (USB-A)
– 2 × USB 3.2 Gen.1 (USB-A) with hotkey support (switchable to USB 1.1)
RS-232: 3-pin terminal connection
IR EXT: 3.5 mm jack socket
Housing: metal, black
Dimensions: 220 × 100 × 30 mm
Weight: 626 g
Operating temperature: 0–40 °C
Storage temperature: –20–60 °C
Humidity: 20–90% (non-condensing)
ESD protection: ±8 kV air / ±4 kV contact

Recommended cable lengths

up to 3 m: 8K / 4K@120Hz
up to 5 m: Ultra HDMI 2.1
up to 10 m: 1080p with standard HDMI cable

External power supply (power adapter)

Type: external plug-in power adapter with lock
Input voltage: 100–240 V AC, 50/60 Hz
Output voltage: 12.0 V DC
Output current: max. 1.0 A
Output power: 12.0 W
Average operating efficiency: 85.23%
Efficiency at low load (10%): 78.53%
Power consumption at zero load: 0.09 W

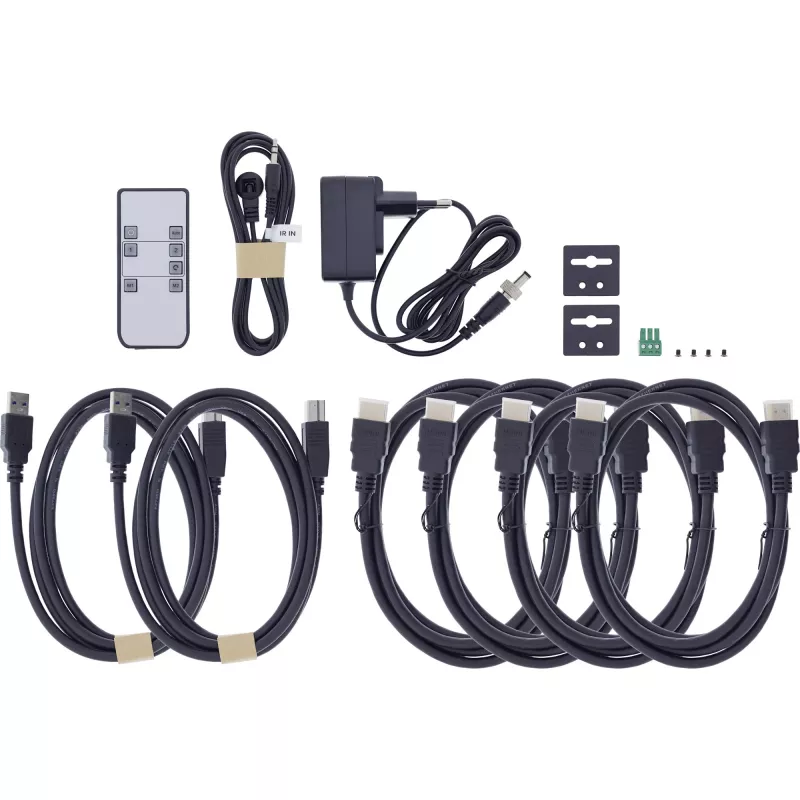

Scope of delivery

1 × InLine® KVM switch, 2-port, HDMI, 8K60Hz, dual monitor
1 × IR remote control
1 × IR receiver cable (1.5 m, 38 kHz)
2 × USB cable (USB 3.2 Gen.1, USB-A to USB-B, 1.8 m)
4 × HDMI cables (1.5 m each, plug/plug)
1 × 12 V/1 A power supply with lock
1 × 3-pin terminal connection plug
2 × mounting brackets
4 × screws (KM3×4)
1 × user manual in German/English

InLine 57885H. Video port type: HDMI, USB connector type: USB Type-A, USB Type-B, Serial port type: RS-232. HD type: 8K Ultra HD, Maximum resolution: 7680 x 4320 pixels, Data transfer rate (max): 40 Gbit/s. Product colour: Black, Housing material: Metal. Power source: DC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Compliance certificates: TÜV mark
