InLine Cable KVM Switch, 2-port, HDMI, 4K, USB, Audio

The InLine 62613I 2-port HDMI KVM Switch lets you control two computers with a single keyboard, mouse and HDMI monitor. It supports 4K Ultra HD output (3840 x 2160) and provides integrated USB connections for keyboard and mouse plus audio and microphone support. The unit includes two fixed cable sets and a wired QuickSwitch button for instant port selection; switching can also be done via keyboard hotkeys or the provided switching client software for Windows and macOS.

Advantages

The KVM switch eliminates cable clutter by supplying two fixed USB+HDMI+Audio cable sets and transparent USB 2.0 hub ports that support advanced keyboard/mouse drivers and other high-speed USB devices. It delivers high-resolution HDMI video up to 4K, supports audio/microphone switching, and offers multiple switching methods (QuickSwitch button, hotkeys, or switching software). Compact, bus-powered via DC and supplied with convenient cable lengths for flexible placement.

Suitable for

• Home offices where a single keyboard/mouse/monitor is shared between two PCs
• Small offices or workstations requiring quick switching between systems
• Multimedia setups needing HDMI 4K output with audio switching
• Environments using advanced USB keyboards, mice or external USB storage devices

Key specifications

• Model: InLine 62613I
• Ports: 2 computers controlled
• Video interface: HDMI, up to 3840 x 2160 (4K)
• Keyboard / Mouse: USB (transparent USB 2.0 hub ports)
• Audio: Audio / Microphone combo support
• Fixed cable length: 1.2 m (device cables)
• Remote switch cable length: 1.5 m (QuickSwitch)
• Power: DC
• Colour: White

How to use

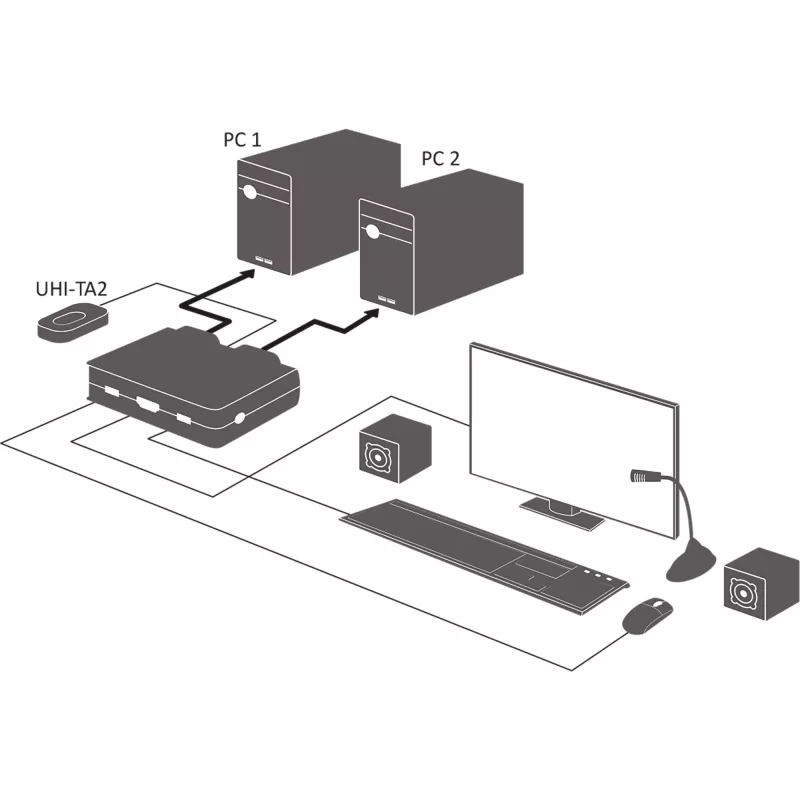

Connect the HDMI, USB and audio/mic cables from the InLine KVM to each computer using the supplied fixed cable sets. Attach your monitor to the HDMI output and plug your keyboard and mouse into the front USB ports. Power the unit via the DC input if required. Switch between connected computers by pressing the wired QuickSwitch button, using keyboard hotkeys or by installing and using the included switching client software on each computer; the software shows the active port in the system tray.

Recommendations

For optimal video performance at 4K resolution use high-quality HDMI cables and ensure both connected computers output the desired resolution. Install the supplied switching client on Windows or macOS systems to enable menu-driven switching and visual active-port indication. Avoid exceeding USB 2.0 bandwidth limits when connecting multiple high-speed USB devices through the KVM.
