InLine KVM Switch, 2-port, USB-C + HDMI to HDMI, 4K, with audio, integr. cable

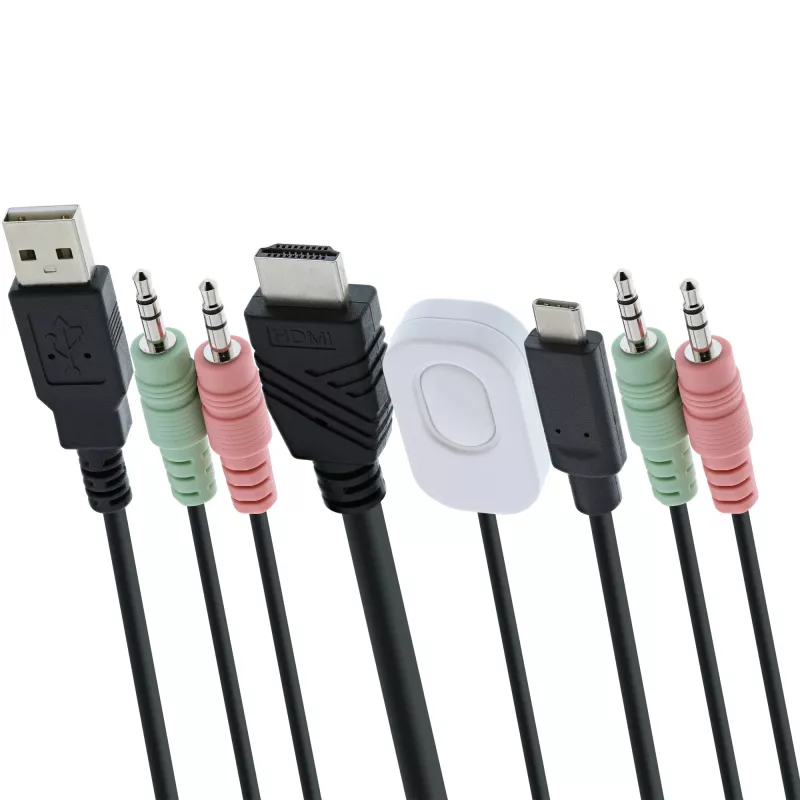

The InLine 62614I KVM Switch is a 2-port switch that lets you control two computers from a single keyboard, mouse and monitor. It provides one fixed HDMI/USB-A/audio/mic cable set and one fixed USB-C/audio/mic combo cable set. The switch supports HDMI video output up to 3840 x 2160 at 60 Hz and converts USB-C DisplayPort Alternate Mode to HDMI when the connected computer supports that mode.

Advantages

The unit includes integrated cables for quick connection and a wired quick-switch button on the console for instant switching between the two computers. Two USB 2.0 ports function as a USB hub with full driver support for advanced keyboard and mouse features and allow connection of other USB 2.0 devices such as external storage. The design is compact and intended for office and home office use where reliable video and audio switching is required.

Suitable for

• Office workstations that need to control two computers from one console
• Home office setups requiring high-resolution HDMI output (up to 4K@60Hz)
• Monitoring or administrative environments with mixed HDMI and USB-C systems

Key specifications

• Brand: InLine, Model: 62614I
• Ports: 2 computer inputs (1×HDMI/USB-A/Audio/Mic, 1×USB-C/Audio/Mic combo), console: HDMI, 2×USB 2.0 (keyboard/mouse hub)
• Supported resolution: up to 3840 x 2160 @ 60 Hz
• USB support: USB 2.0 hub for keyboard, mouse and other USB 2.0 devices
• Notes: USB-C source must support DisplayPort Alternate Mode; switch converts to HDMI

How to use

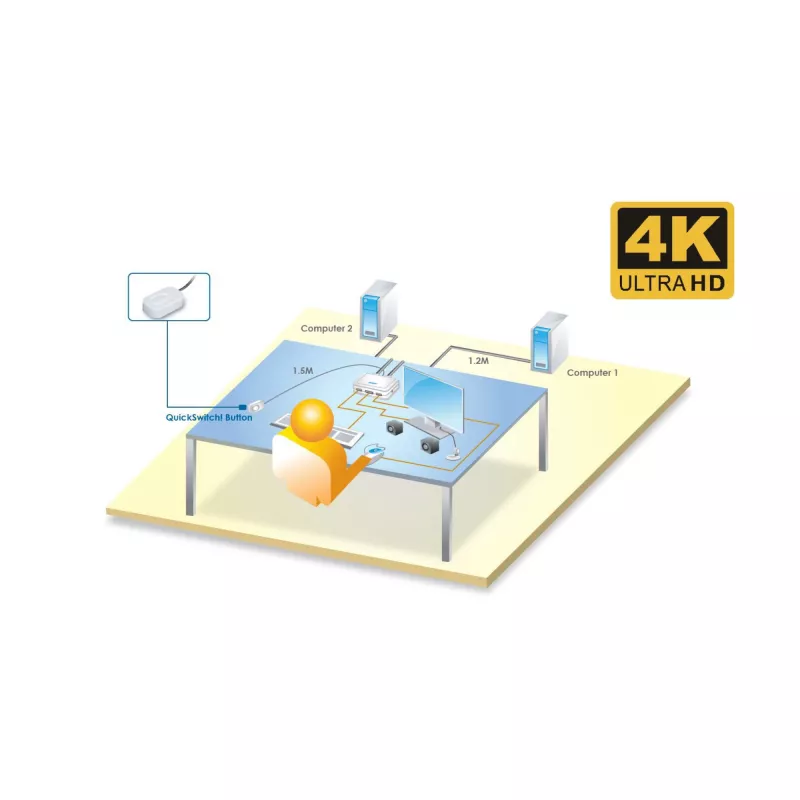

Connect the HDMI/USB-A/audio/mic cable set to the HDMI computer and the USB-C/audio/mic combo cable to the USB-C computer (ensure the USB-C computer supports DisplayPort Alternate Mode). Connect your monitor to the console HDMI port and plug keyboard and mouse into the console USB ports. Use the wired quick-switch button on the console to toggle between the two connected computers. The USB hub ports also accept other USB 2.0 devices if needed.

Recommendations

Designed for office and home office environments and for monitoring multiple computers from one workstation. Not recommended for gaming setups: gaming keyboards or mice with programmable special keys and gaming monitors with refresh rates of 120 Hz or higher are not supported. The hotkey function works only via the designated console USB port; hotkey switching via the hub ports is not available.
