Power plug adapter InLine 69927V — mains adapter for international sockets

Cross distributor for power connections:Quadruple connection for 3-core cables – ideal for structured power distribution outdoors or in damp rooms.
Permanently waterproof:IP68-certified, silicone seal and sturdy nylon housing protect against water, dust, and mechanical stress.
Flexible use:Suitable for cable diameters of 4–14 mm and cable cross-sections of 0.5–6 mm² – rated for up to 500 V and 24 A.
Tool-free installation:Quick screw system with secure hold – ensures a tight, mechanically stable connection without tools.
Ideal for complex installations:Perfect for garden systems, pond pumps, LED systems, or power grids with multiple branches.

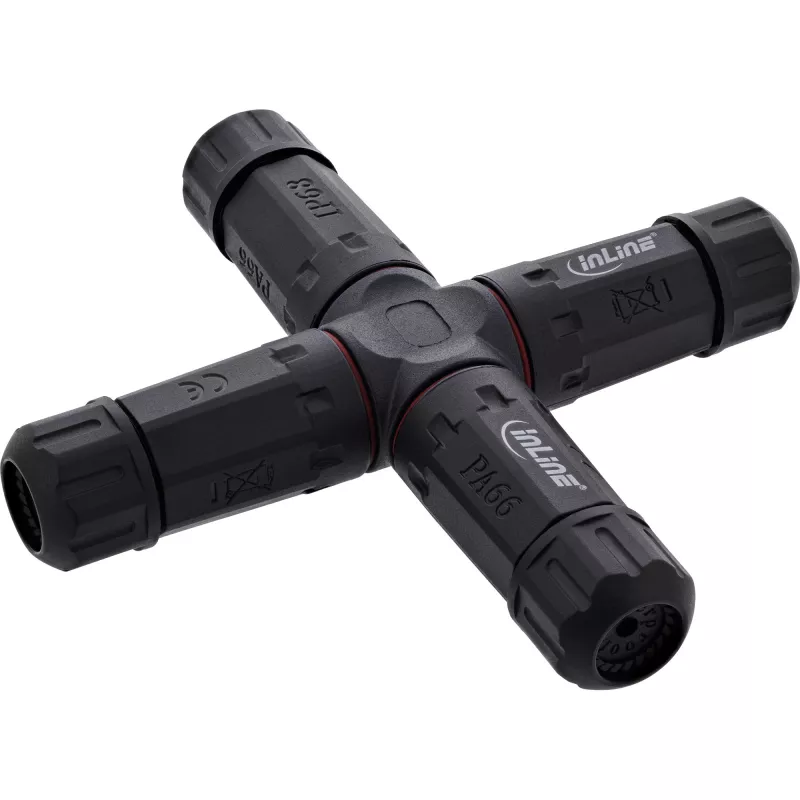

The InLine power cable coupler with 4-way cross distribution is the perfect solution for complex power distribution – whether in private gardens, on construction sites, or in industrial installations. With four separate connection directions for 3-core cables, this coupler is ideal for branched power networks.
The 3-pole connection supports voltages up to 500 V and currents up to 24 A. Thanks to its robust nylon housing (PA66), high-quality copper contacts, and reliable silicone seal, it offers maximum safety and durability – even in adverse weather conditions. The IP68 protection rating ensures permanently tight and weatherproof connections.

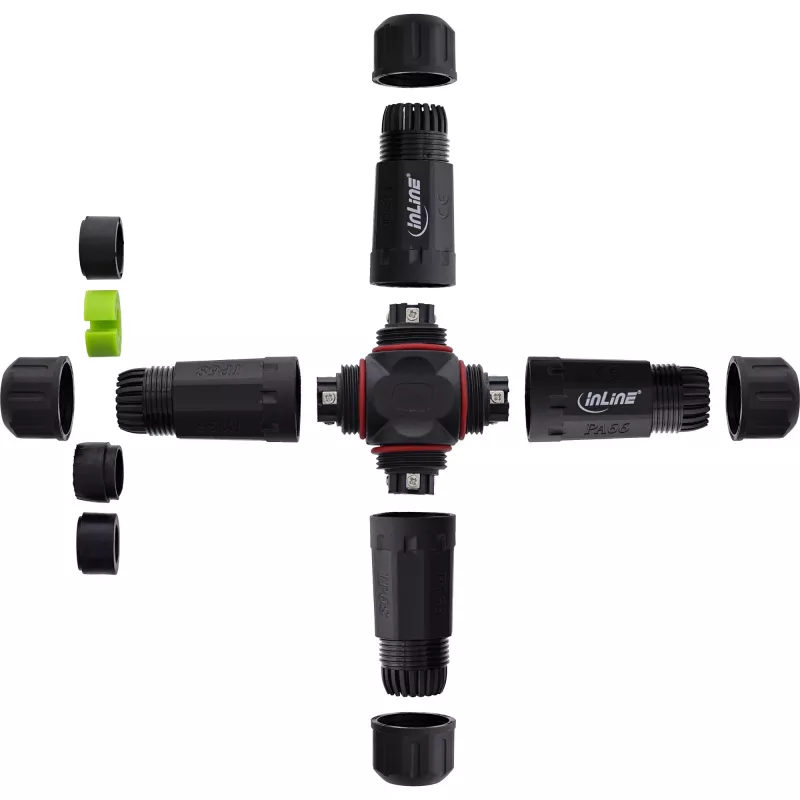

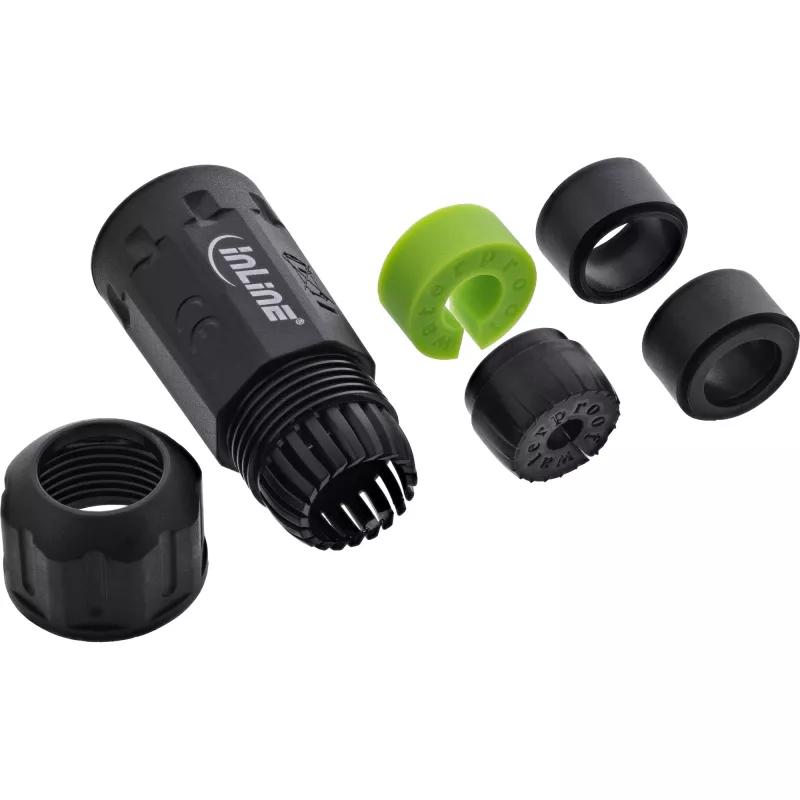

Installation is tool-free thanks to the practical screw cap system. Simply insert the cable, connect it, insert the seal, and tighten the caps – the connection is then mechanically secured and waterproof. The coupling is suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm².
Typical areas of application include garden and outdoor lighting, pond installations, power distribution in workshops, events, or machine parks. The cross shape allows multiple consumers to be supplied with power in a clear and safe manner – ideal for demanding applications.

Material: Nylon (PA66)
Thread size: M20
Contact material: Copper
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 4-way
Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 24 A

InLine 69927V. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark, RoHS. Width: 135 mm, Depth: 135 mm, Height: 25 mm. Quantity per pack: 1 pc(s). Package width: 150 mm, Package depth: 210 mm, Package height: 30 mm

How to use

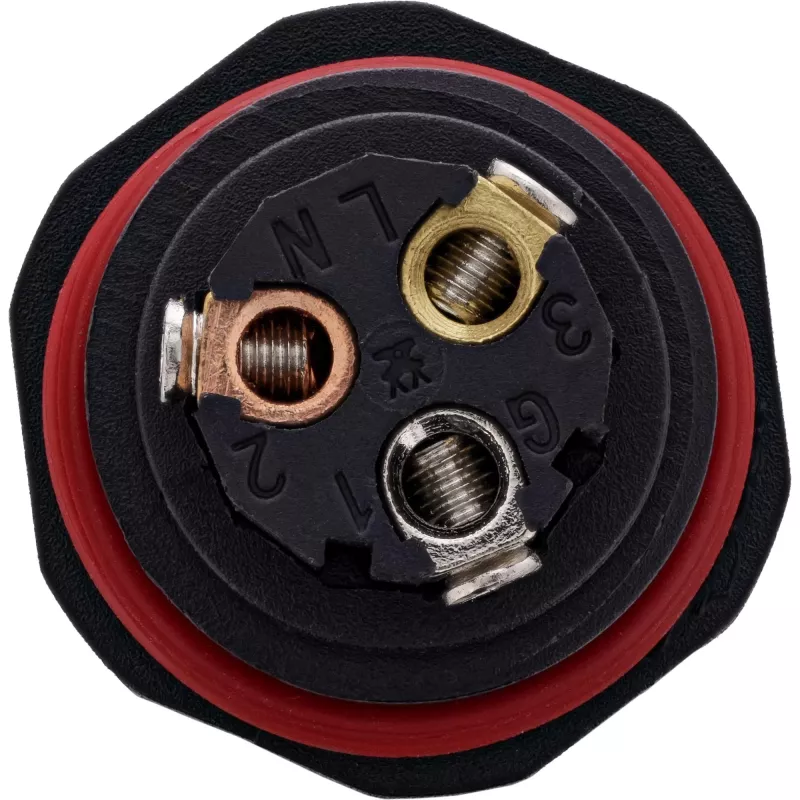

Prepare three-core cables by stripping to the recommended conductor lengths and insert each cable into one of the four distributor directions. Connect conductors to the internal screw terminals, position the silicone seal around the cable, and tighten the screw caps by hand until the connection is mechanically secure and the seal is compressed. Verify that all caps are tightened to ensure the IP68 watertight rating before exposing the connection to water or outdoor conditions.

Recommendations

Ensure cables used match the specified diameter (4–14 mm) and conductor cross-section (0.5–6 mm²). Do not exceed the rated voltage (500 V) or current (24 A). For installations in continuously submerged environments or permanent outdoor use, check seals periodically and ensure screw caps remain tight; perform electrical work only when the power is disconnected.
