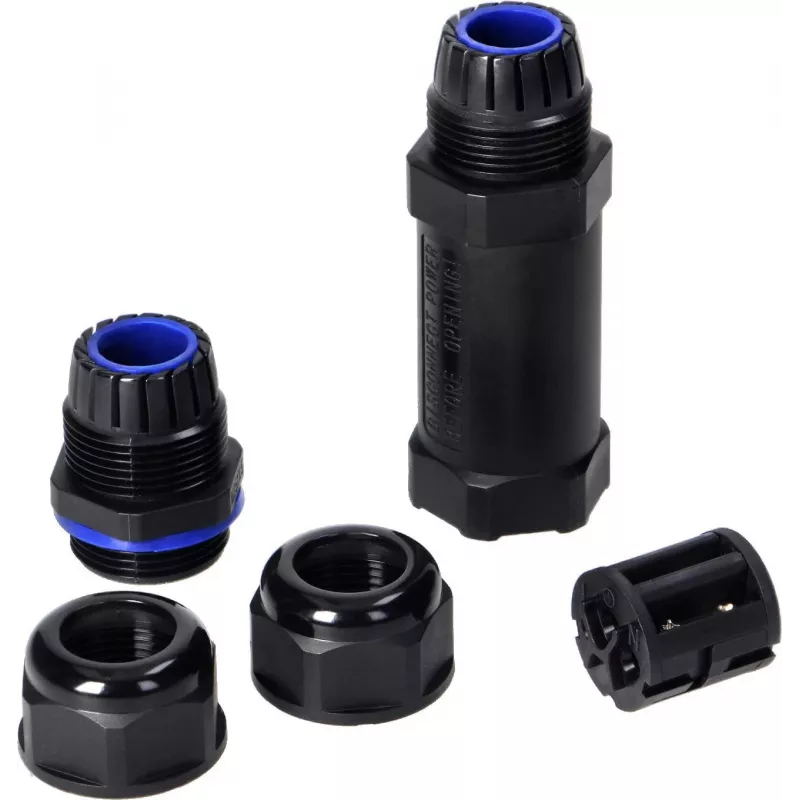

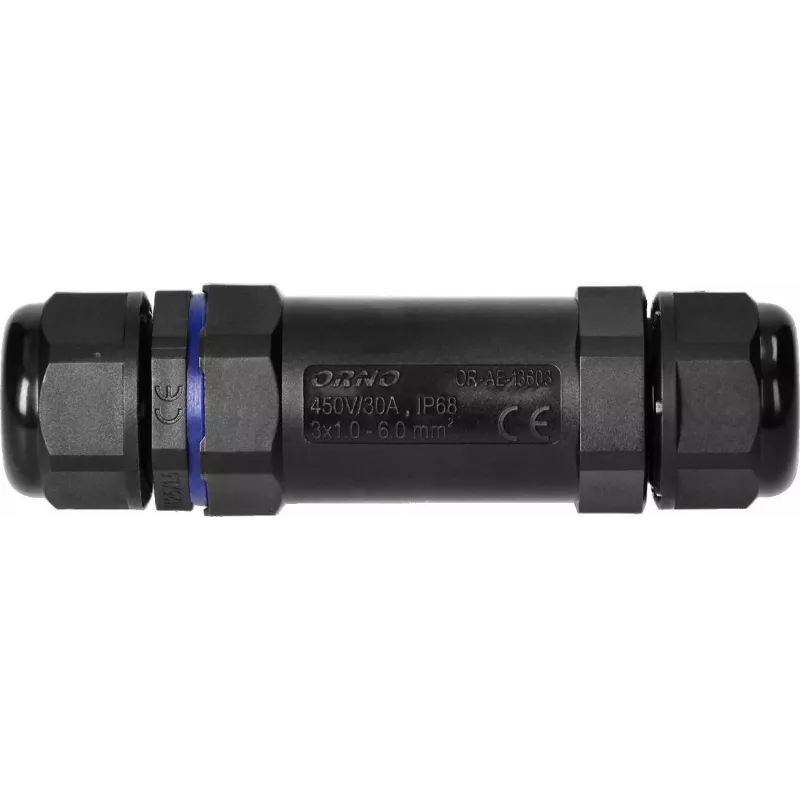

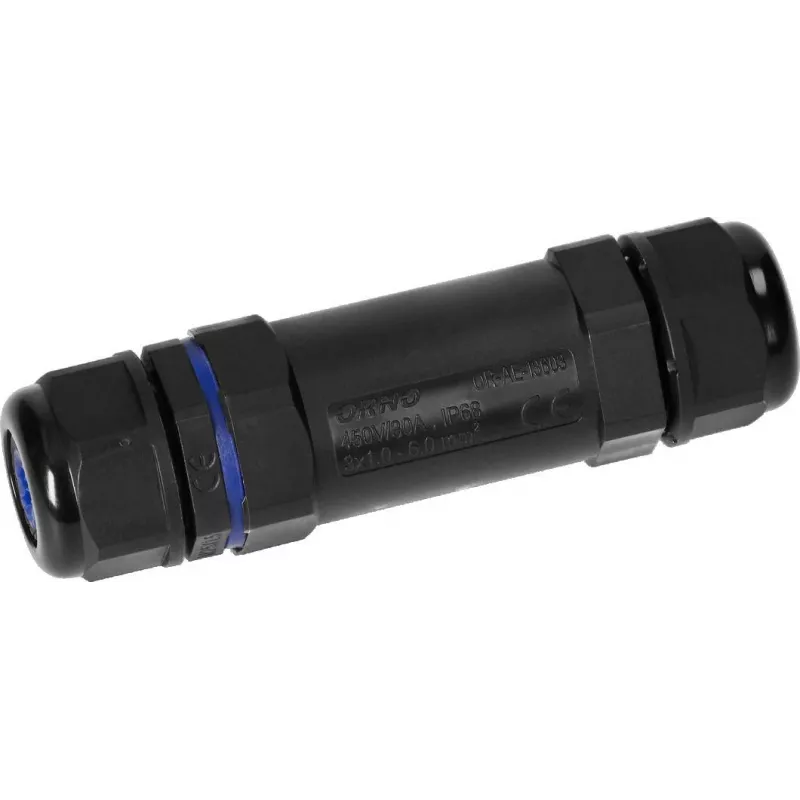

ORNO Straight Cable Joint Connector IP68 M25 3x6mm² 450V/30A OR-AE-13603

The ORNO OR-AE-13603 is a high-quality straight cable joint connector designed for reliable and secure electrical connections in demanding environments. With an IP68 rating, it offers superior protection against dust and water ingress, making it ideal for outdoor, submersible, and harsh industrial applications. This connector accommodates cables up to 6 mm² cross-section and supports a rated voltage of 450V and current of 30A.

Advantages

Engineered for durability and performance, the OR-AE-13603 features a robust PA66 housing that resists UV radiation and mechanical stress. The screw terminal connection ensures a tight and maintenance-free joint, while the M25 thread allows easy integration with standard cable glands. Its compact inline design saves space and simplifies installation.

Suitable for

• Outdoor lighting and power distribution
• Submersible pumps and marine equipment
• Industrial automation and control systems
• Renewable energy installations (solar, wind)
• Underground cable joints and splices

Key specifications

• Product Type: Cable Joint Connector
• Connector Design: Straight
• Ingress Protection: IP68
• Cable Entry Thread: M25
• Number of Poles: 3
• Max Conductor Cross-Section: 6 mm²
• Rated Voltage: 450 V
• Rated Current: 30 A
• Connection Method: Screw Terminal
• Housing Material: PA66 (Polyamide 66)
• Application Environment: Outdoor, Submersible, Harsh Environments
• Resistance: Waterproof, Dustproof, UV Resistant
• Cable Compatibility: Round Cables
• Installation Type: Inline

Recommendations

For optimal performance, ensure cables are properly stripped and inserted fully into the connector before tightening screws. Use appropriate cable glands for sealing. This connector is not suitable for dynamic or vibrating applications without additional strain relief.
