SHELLY Dimmer 0/1-10V PM Gen4

The SHELLY Dimmer 0/1-10V PM Gen4 is a next-generation smart dimmer designed for professional and residential lighting control. Supporting 0-10V dimming protocol, it enables smooth and precise dimming of compatible LED drivers, fluorescent ballasts, and other 0-10V controlled fixtures. With built-in power measurement, Wi-Fi and Bluetooth connectivity, and support for voice assistants like Amazon Alexa and Google Home, this device offers seamless integration into modern smart home and building automation systems. The Gen4 model features an ESP32 processor, 8 MB flash memory, and mJS scripting support for advanced customization.

Advantages

• Universal 0-10V dimming control for a wide range of lighting fixtures
• Real-time power monitoring for energy management
• Dual connectivity: Wi-Fi (2.4 GHz) and Bluetooth for flexible setup
• Voice control compatibility with Amazon Alexa and Google Home

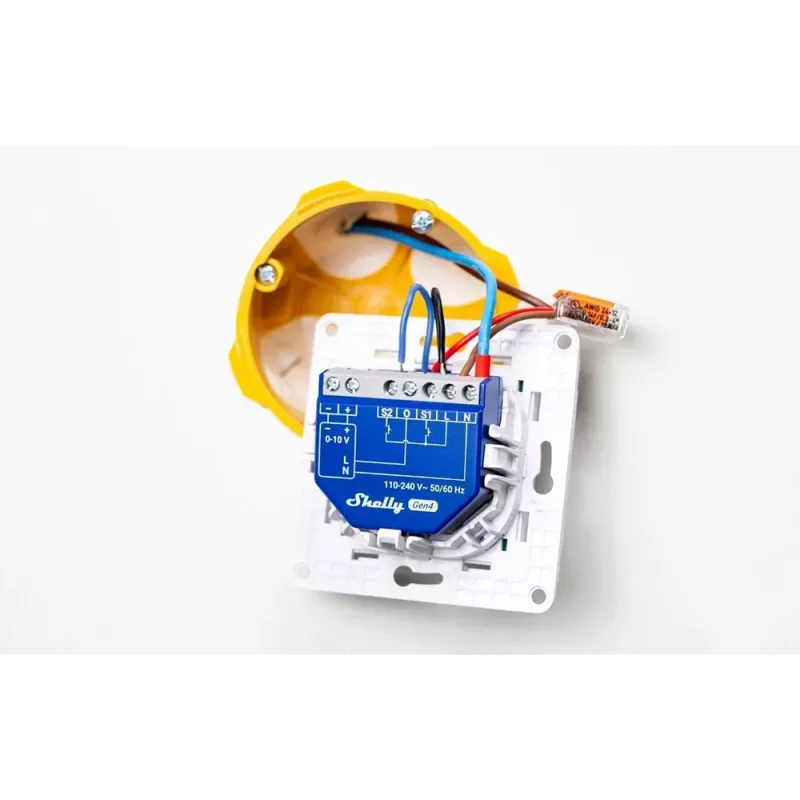

• Compact in-wall design for discreet installation
• Overload and overheating protection for safe operation
• Low power consumption (<1.2 W) for energy efficiency

Suitable for

• Smart home lighting automation
• Commercial building lighting control
• Office and retail space dimming
• Industrial 0-10V lighting systems
• Integration with home automation platforms via MQTT

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth
• Dimming Protocol: 0-10V
• Power Measurement: Yes
• Input Voltage: 110-240V AC or 24V DC
• Max 0-10V Output Current: 100 mA
• Max Switching Current (Relay): 1A @ 24V DC / 1A @ 240V AC
• CPU: ESP32-D0WDQ6
• Flash Memory: 8 MB
• Operating Temperature: -20°C to 40°C
• Mounting: In-wall console / electrical box
• Scripting: mJS
• MQTT Support: Yes
• Voice Assistants: Amazon Alexa, Google Home
• Protection: Overload, Overheating
• Power Consumption: <1.2 W
• Generation: Gen4

Recommendations

For optimal performance, use with 0-10V compatible LED drivers or ballasts. Ensure proper ventilation when installing in enclosed electrical boxes. The device supports firmware updates via the Shelly Smart Control app. For advanced automation, leverage MQTT and scripting capabilities.
