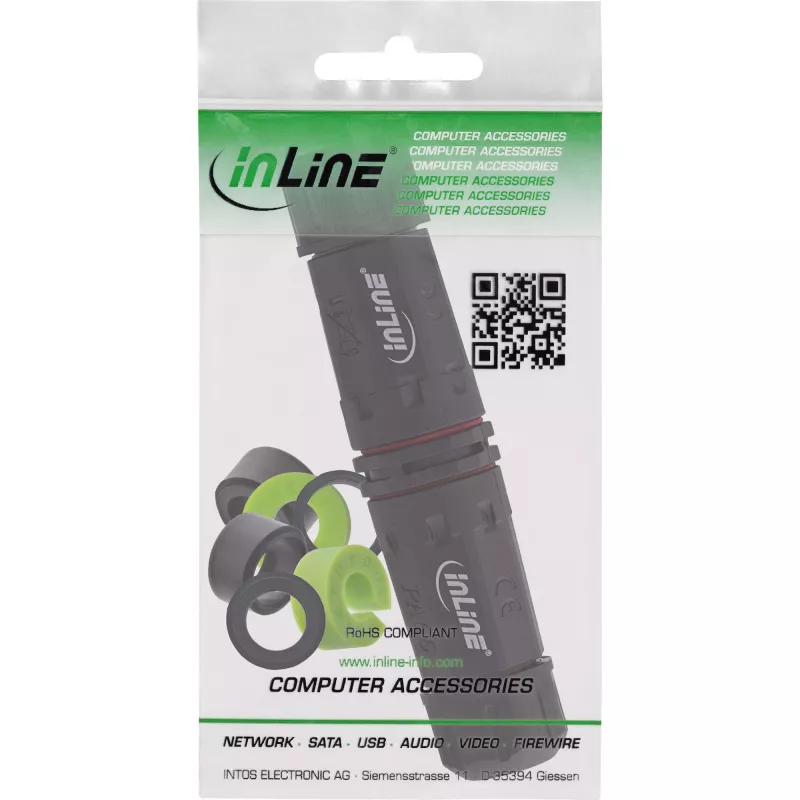

Power plug adapter InLine 69927T for computer accessories — model 69927T

Reliable protection against moisture:IP68-certified connection coupling for permanent outdoor use or in damp environments.
Secure power connection:For 3-core power cables with 500 V and up to 32 A – ideal for devices, lights, or installations with high requirements.
Flexible range of applications:Suitable for cable diameters from 4 to 14 mm and cable cross-sections from 0.5 to 6 mm² – versatile for indoor and outdoor use.
Robust design for professionals:Housing made of durable nylon (PA66), silicone seal, and copper contacts ensure durability and reliable contact.

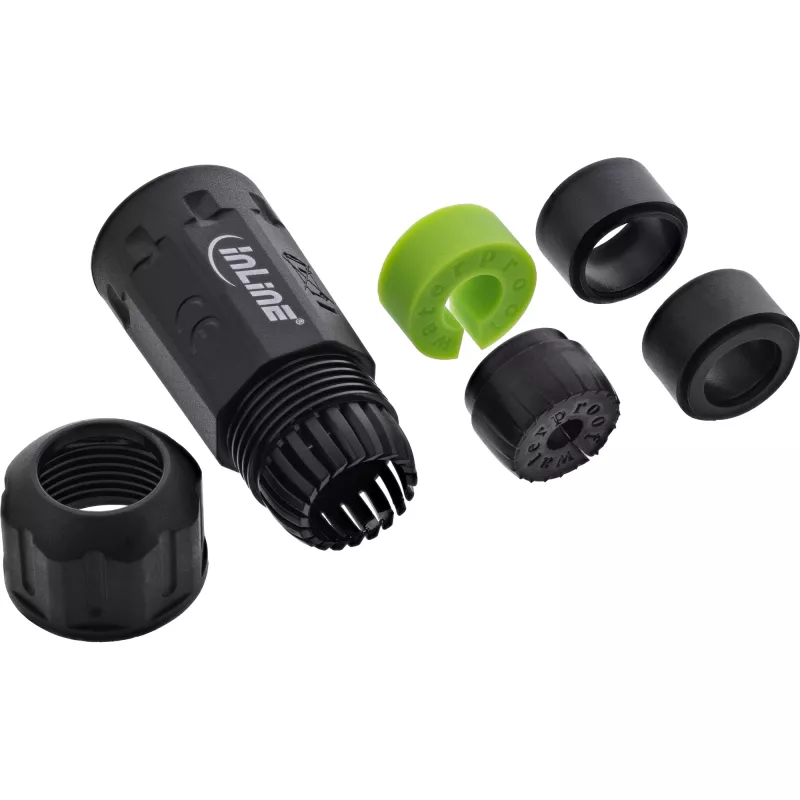

Easy installation without tools:Screw cap system with secure locking mechanism – quick to install, securely connected, ready for immediate use.

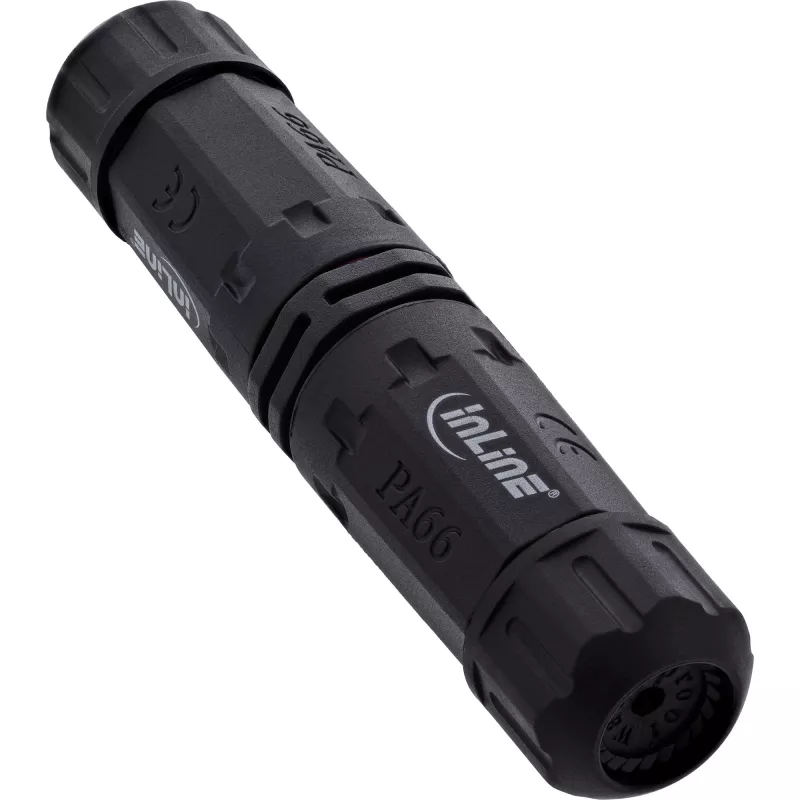

The InLine power cable coupling with IP68 certification is the ideal solution for secure power connections indoors and outdoors. Whether for professional use in electrical installations, in industry, or in private settings, this 2-way coupling impresses with its high protection class and robust design. It is perfect for connecting 3-core power cables with a voltage of 500 V and a current of up to 32 A.
The M20 thread and adaptation to cable diameters from 4 to 14 mm make the connector particularly flexible in use. Thanks to the high-quality silicone seal and the precisely manufactured copper contacts, a secure, durable, and waterproof connection is guaranteed – even under extreme conditions. The housing is made of robust nylon (PA66) and can withstand temperatures from -40 °C to +105 °C.
Installation is tool-free thanks to the screw cap system – simply insert the cable, connect it, and close it securely. The coupling is ideal for outdoor lighting, garden installations, pond pumps, carports, machine connections, or temporary installations at events.
Choose a permanently sealed, mechanically stable, and easy-to-install solution – for greater safety with every electrical connection.

Material: Nylon (PA66)
Thread size: M20

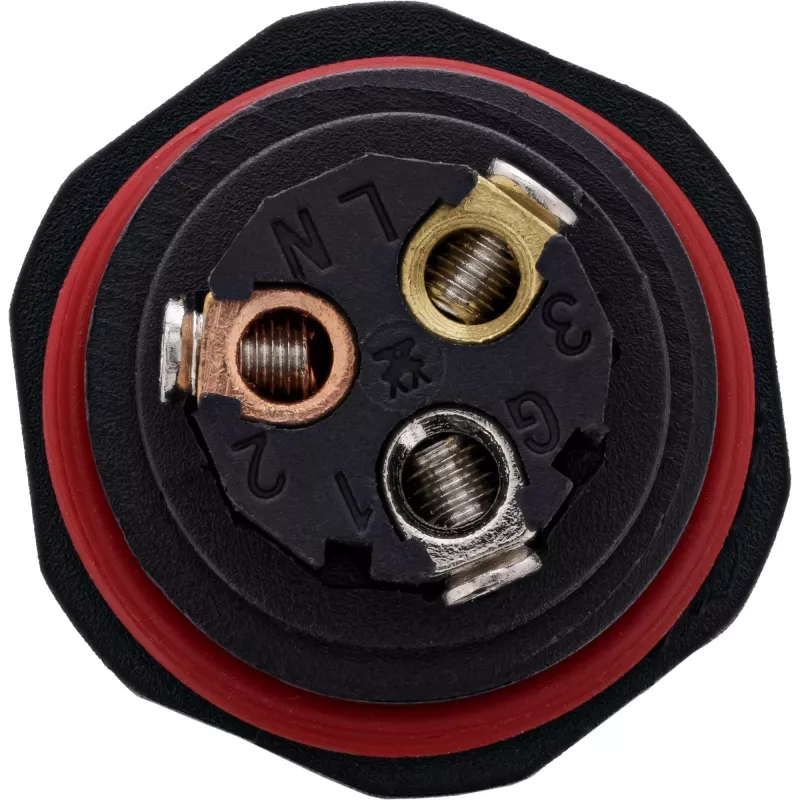

Contact material: Copper
Seal: Silicone
Temperature range: -40 °C to +105 °C
IP protection rating: IP68
Cable diameter: 4–14 mm
Conductor cross-section: 0.5–6 mm²
Design: 2-way
Number of poles: 3-pole
Rated voltage: 500 V
Rated current: 32 A

InLine 69927T. Product type: Cable coupler, Product colour: Black, Material: Polyamide, Silicone. Compliance certificates: TÜV mark, RoHS. Width: 28 mm, Depth: 120 mm, Height: 28 mm. Quantity per pack: 1 pc(s). Package width: 90 mm, Package depth: 140 mm, Package height: 30 mm

How to use

Insert a compatible 3-core cable (4–14 mm diameter, conductor 0.5–6 mm²) through the screw cap, strip the conductors, and connect them to the copper contacts according to the required polarity. Tighten the screw cap until the locking mechanism engages to compress the silicone seal and create a waterproof connection. Ensure the M20 thread is properly engaged and fully tightened for a mechanically stable joint. No additional tools are required for assembly.

Recommendations

Use this IP68-rated coupling for permanent or long-term outdoor and damp-environment installations. Verify cable diameter and conductor cross-section compatibility before installation, and check that the connection is tightened and sealed. Do not exceed the rated voltage (500 V) or current (32 A).
