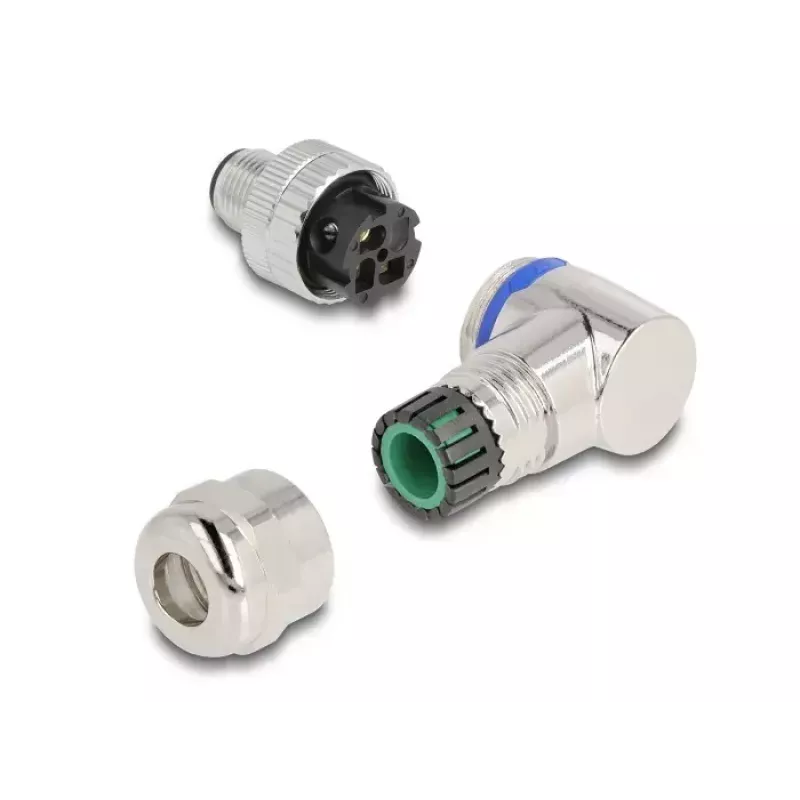

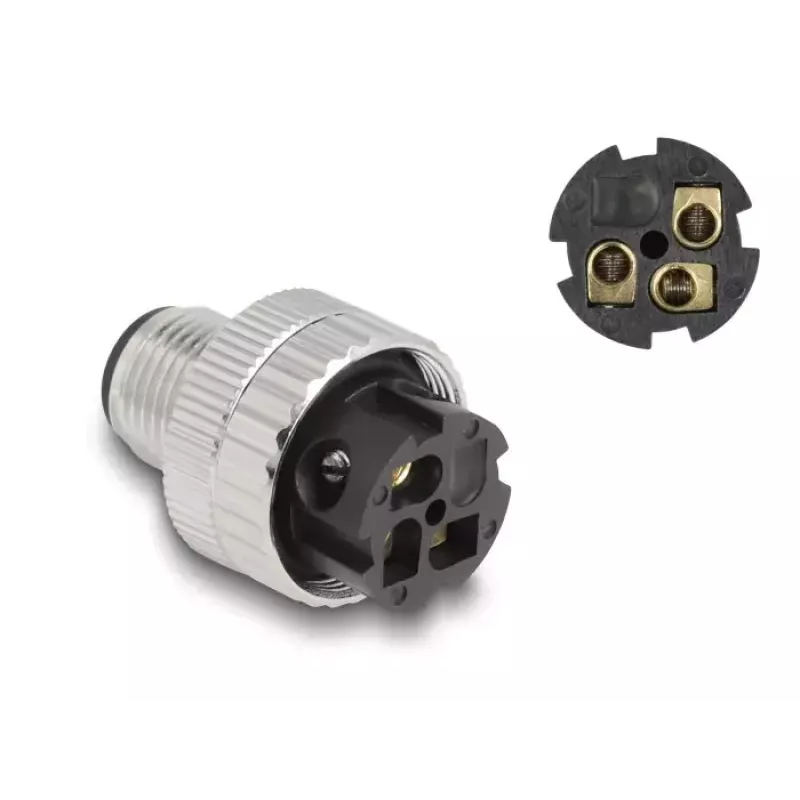

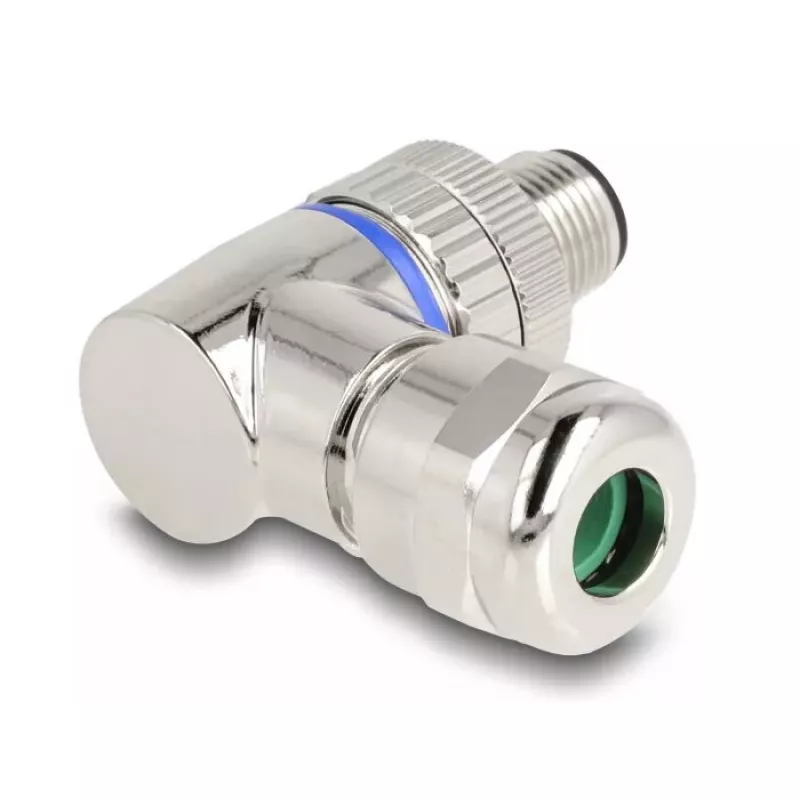

DeLOCK M12 Connector A-coded 3 pin male 90° angled metal

The DeLOCK M12 Connector A-coded 3 pin male 90° angled metal is a compact connector for creating a screw-terminal cable connection with an M12 interface. It is suitable for use in machine control and automation where a robust M12 connection is required. The metal housing and A-coded 3-pin configuration provide a reliable copper contact interface for signal or control wiring.

Advantages

The metal 90° angled housing reduces strain on cables in confined spaces and improves installation flexibility. Screw terminal mounting allows straightforward field wiring without special crimp tools. The compact dimensions (44 mm × 41.3 mm × 20 mm) and durable metal construction deliver a stable mechanical connection and increased longevity compared with plastic housings.

Suitable for

• Machine control wiring
• Industrial automation signals
• Sensor and actuator connections with M12 A-coded interfaces

Key specifications

• Connector type: M12 A-coded, 3 pin, male
• Orientation: 90° angled
• Mounting: screw terminal
• Housing material: metal
• Dimensions: 44 mm (W) × 41.3 mm (D) × 20 mm (H)
• Colour: Black, Silver
• Brand: DELOCK
• MPN: 60539
• EAN: 4043619605392

How to use

Prepare the cable by stripping the conductor ends to the recommended length for the screw terminals. Insert each conductor into the corresponding terminal and secure it with the terminal screws. Align the M12 male connector with the mating female socket and tighten according to the device manufacturer’s instructions to ensure proper contact and sealing. Route the cable to avoid excessive bending at the 90° junction.

Recommendations

For reliable operation, verify pin assignments and secure terminal screws to the specified torque. Use appropriate cable cross-section for the current and signal type, and avoid exposure to corrosive environments unless additional protective measures are applied.
