DeLOCK M12 Connector A-coded 3 pin female 90° angled metal

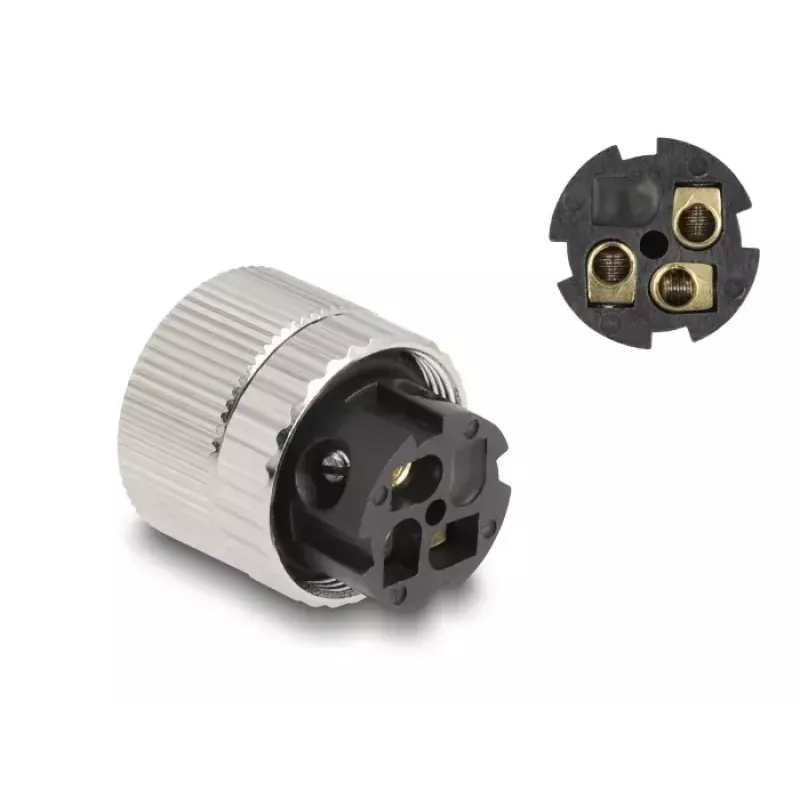

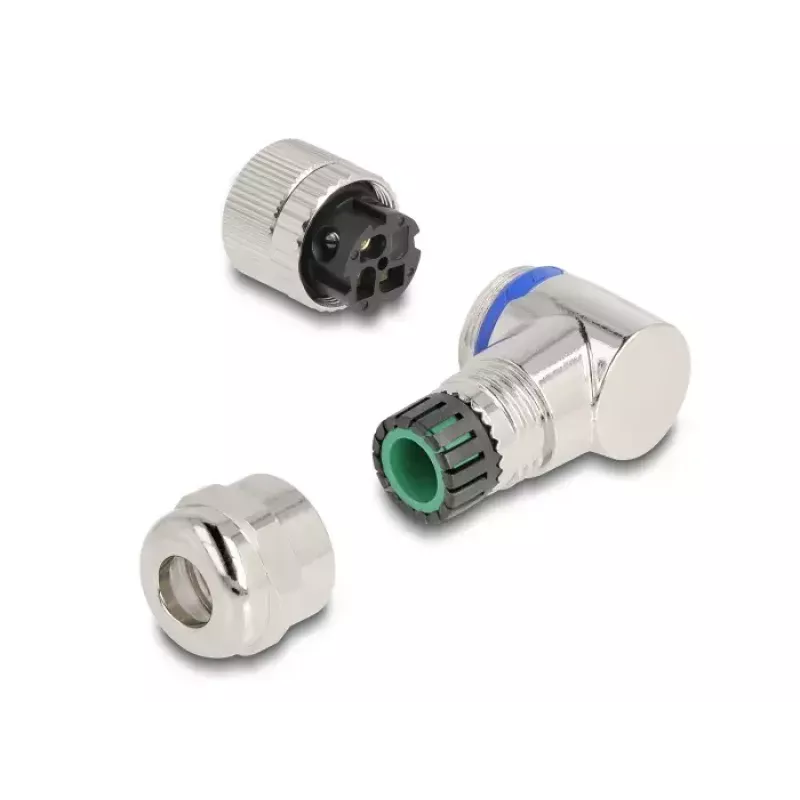

The DeLOCK M12 Connector A-coded 3 pin female 90° angled metal provides a robust connection between an M12 device connector and a screw-terminal wired cable. Constructed from metal with a black and silver finish, the connector combines a compact angled housing with a secure screw terminal for use in machine control, automation and other industrial cable interface applications.

Advantages

This M12 female connector offers a space-saving 90° angled design that facilitates routing of cables in tight installations. The metal housing improves mechanical durability and shielding, while the screw terminal connection enables straightforward, tool-assisted wiring without the need for pre-terminated cables. The product dimensions (44 mm width, 35 mm depth, 20.2 mm height) make it compatible with a range of assemblies where reliable connectivity is required.

Suitable for

• Machine control systems
• Industrial automation and sensors
• Panel and field cable connections
• Situations requiring angled M12 A-coded connections with screw terminals

Key specifications

• Brand: DELOCK
• Model / MPN: 60542
• EAN: 4043619605422
• Connector type: M12 A-coded, 3 pin, female
• Orientation: 90° angled
• Termination: screw terminal
• Housing material: metal
• Colour: Black, Silver
• Dimensions (W×D×H): 44 × 35 × 20.2 mm

How to use

Strip the cable conductors to the recommended length for the screw terminal, insert each conductor into the corresponding terminal and tighten the screws securely. Align and mate the M12 connector to the matching male A-coded M12 socket and fasten according to the device or panel mounting instructions. Verify correct pin assignment and mechanical stability before powering connected equipment.

Recommendations

Use appropriate wire cross-section sizes and tightening torque for the screw terminals, follow the device manufacturer’s pinout and mounting guidance, and ensure the connector is installed in environments compatible with metal housings to avoid corrosion or electrical grounding issues.
