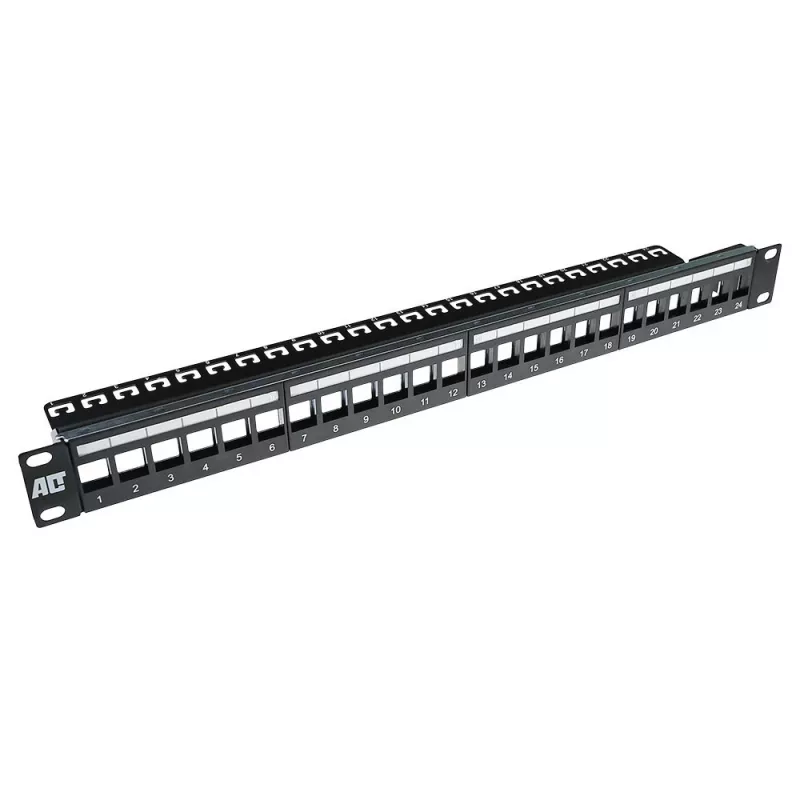

ACT 24 Port Keystone-jack patchpanel without connectors

The ACT 24 Port Keystone-jack patchpanel (model PP1030) provides a 1U rack-mounted solution for organizing and connecting network cables. Constructed from durable ABS and SPCC materials, the panel supports up to 24 keystone jacks and has compact dimensions suitable for standard 19-inch racks: 482.6 mm (W) x 43.6 mm (H) x 92.3 mm (D).

Advantages

This patchpanel offers a space-efficient 1U design and a robust build using ABS and SPCC for reliable long-term use. Its 24-port capacity simplifies cable management by centralizing keystone jacks in a single, rack-friendly unit, helping to maintain a neat and accessible network rack.

Suitable for

• Organizing Ethernet and network cabling in server rooms and comms cabinets
• Mounting keystone jacks for LAN, phone, or modular connectors
• Small to medium business network installations and patching panels

Key specifications

• Brand: ACT
• Model: PP1030
• Type: 24 Port Keystone-jack Patchpanel, unloaded
• Rack size: 1U, fits standard 19-inch racks
• Material: ABS and SPCC
• Dimensions: 482.6 mm (W) x 43.6 mm (H) x 92.3 mm (D)
• MPN: PP1030
• EAN: 8716065286472

How to use

Install the patchpanel into a standard 19-inch rack using appropriate rack screws in the 1U space. Insert up to 24 keystone jacks into the front openings and terminate network cables at the rear according to the chosen wiring scheme (for example T568A or T568B). Label ports as needed to maintain clear identification for patching and troubleshooting.

Recommendations

Mount the panel at a convenient height within the rack to allow easy access to ports. Use proper cable management accessories such as cable ties or horizontal managers to reduce strain on terminated jacks and to keep cables tidy.
