ACT M.2 NVMe/PCIe dual SSD docking clone station, USB-C 3.2 Gen2

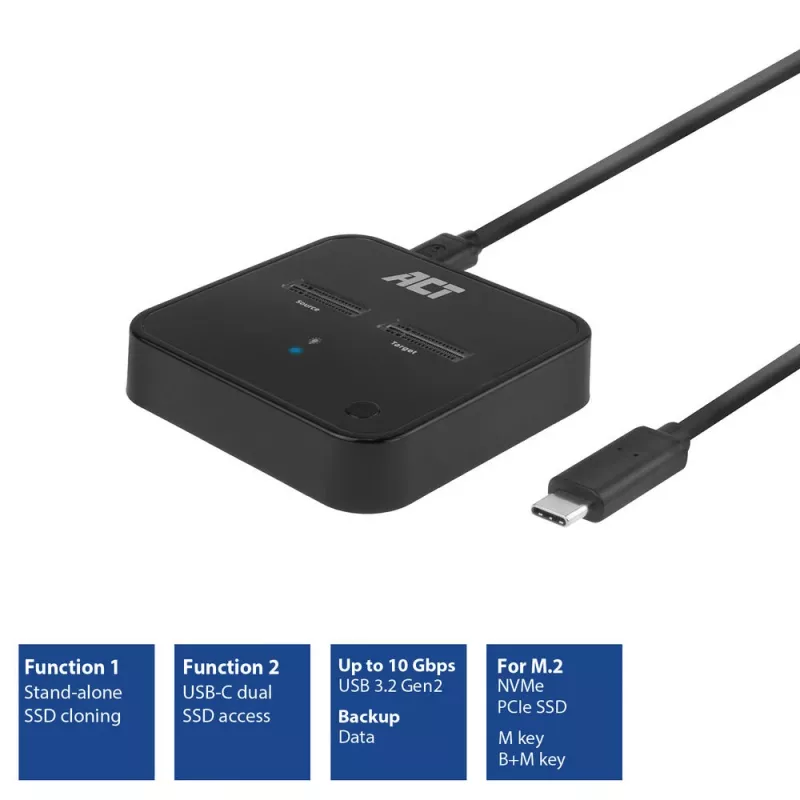

The ACT AC1502 M.2 Dual SSD Clone Station is a USB-C 3.2 Gen2 docking station designed for two M.2 NVMe/PCIe SSDs (M key and B+M key). It supports SSDs with or without heatsinks and enables both offline cloning without a computer and direct connection to a PC or laptop for data access and backup at up to 10 Gbps.

Advantages

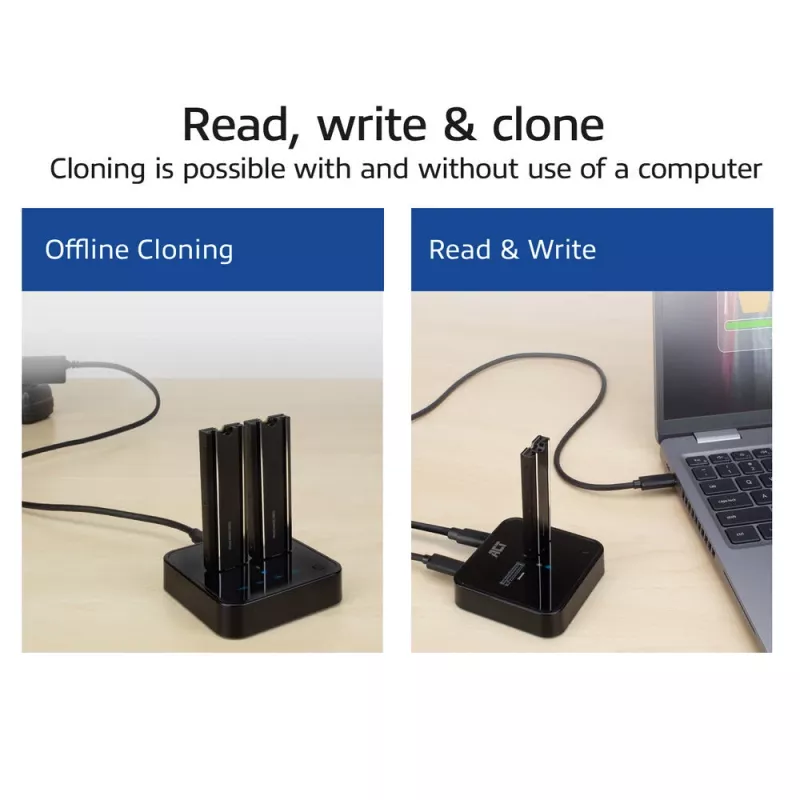

This dual SSD docking clone station supports two M.2 NVMe/PCIe drives simultaneously and accepts M key and B+M key modules, including models with heatsinks. Offline cloning is possible directly on the dock without connecting to a computer; status LEDs indicate cloning progress in 25% increments. When connected to a computer via USB-C 3.2 Gen2 with UASP support, the dock provides fast data transfer and straightforward access to both drives as external storage.

Suitable for

• Cloning an existing M.2 NVMe/PCIe SSD to a larger SSD

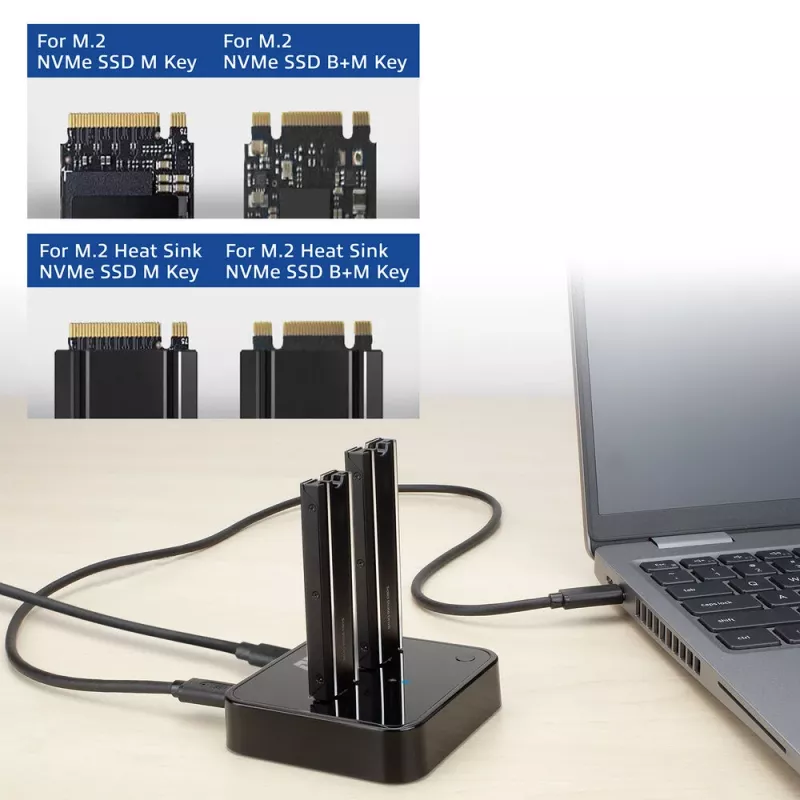

• Backing up or accessing data from two M.2 NVMe/PCIe SSDs via a laptop or PC
• Transferring data between two M.2 SSDs without a host computer (offline cloning)
• Temporary use of M.2 SSDs as external storage

Key specifications

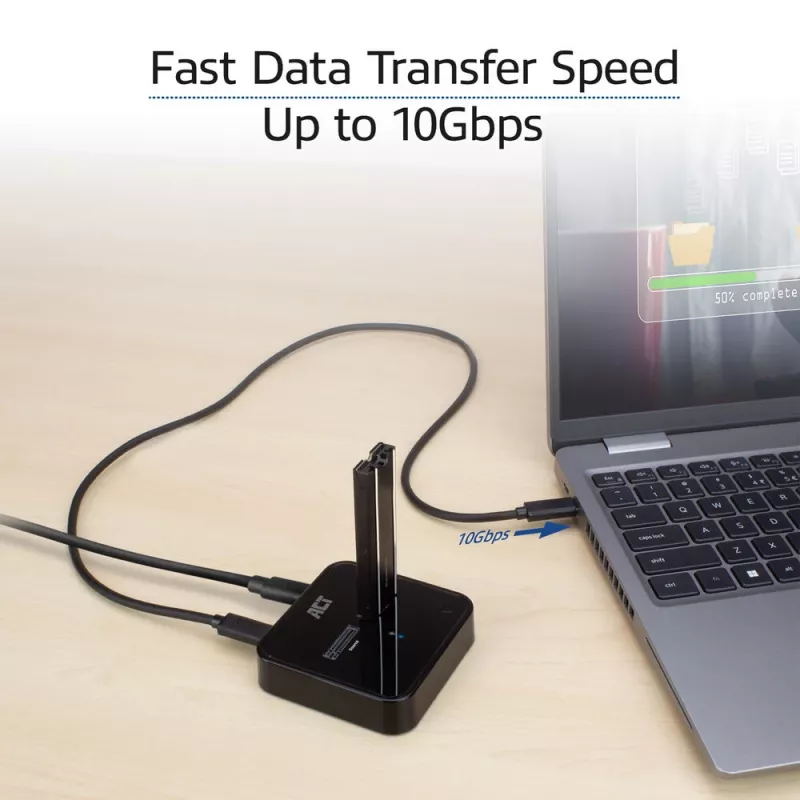

• Interface: USB-C 3.2 Gen2 (10 Gbps)

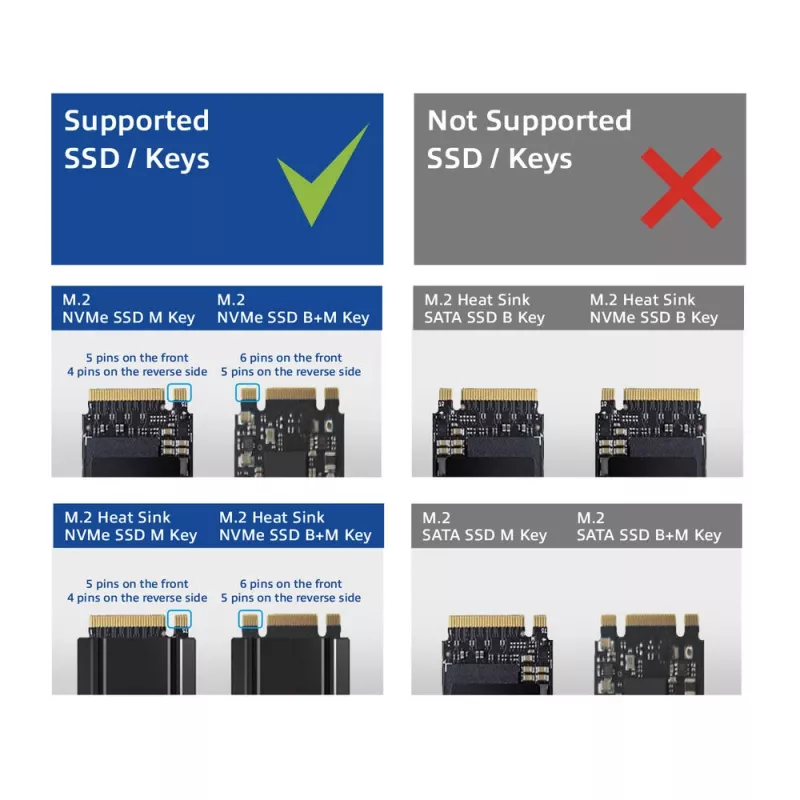

• Supported drives: 2 × M.2 NVMe/PCIe SSDs (M key and B+M key)

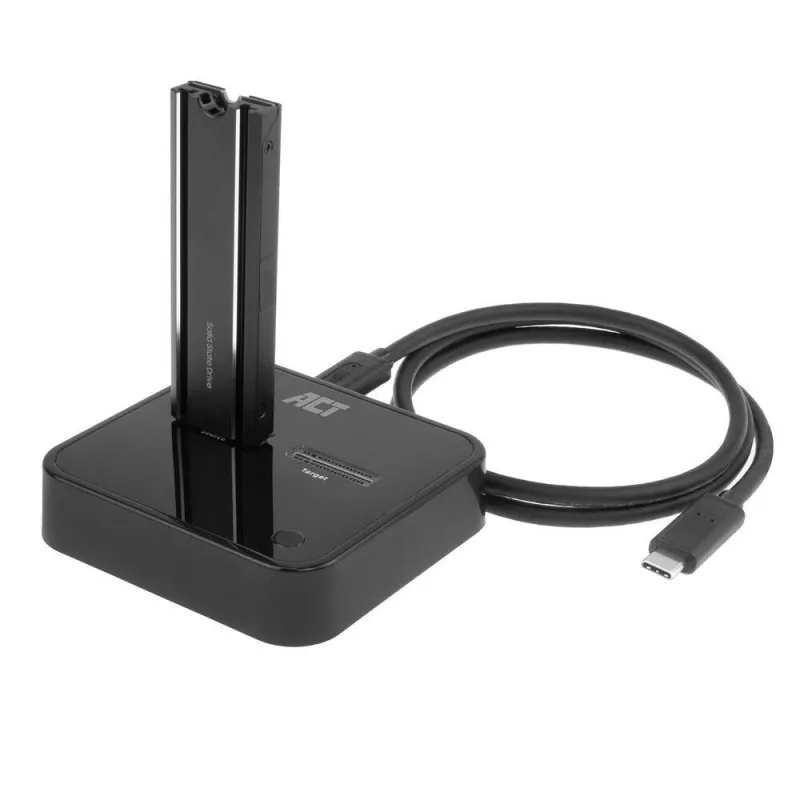

• Supports SSDs with heatsink: Yes
• Cloning: Offline cloning (standalone) with LED progress indicators (25%/50%/75%/100%)

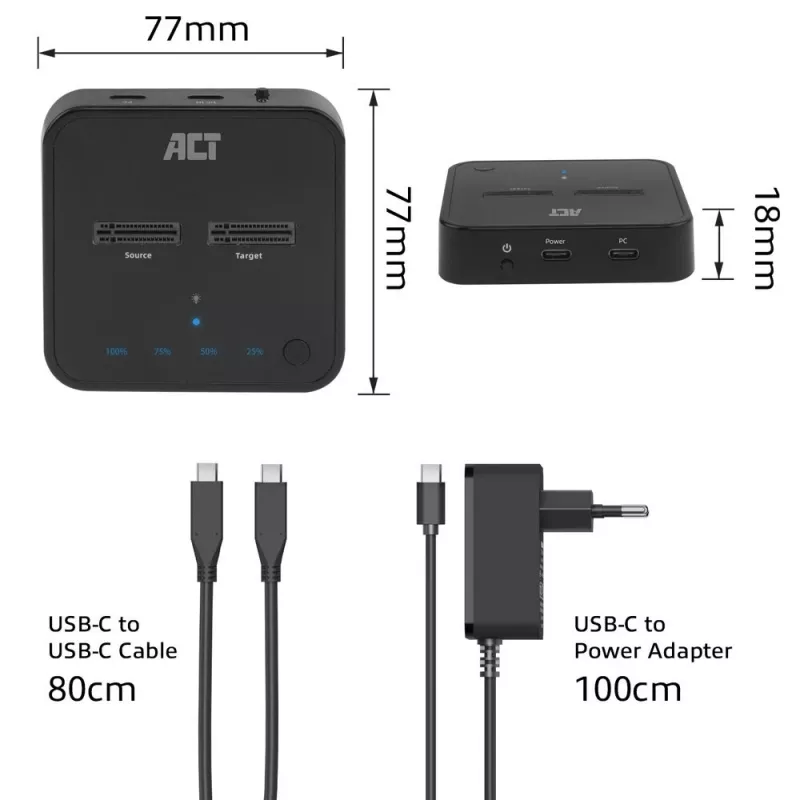

• Physical dimensions: 77 × 77 × 18 mm
• Material and colour: Plastic, black
• Brand / MPN / EAN: ACT / AC1502 / 8716065527216

How to use

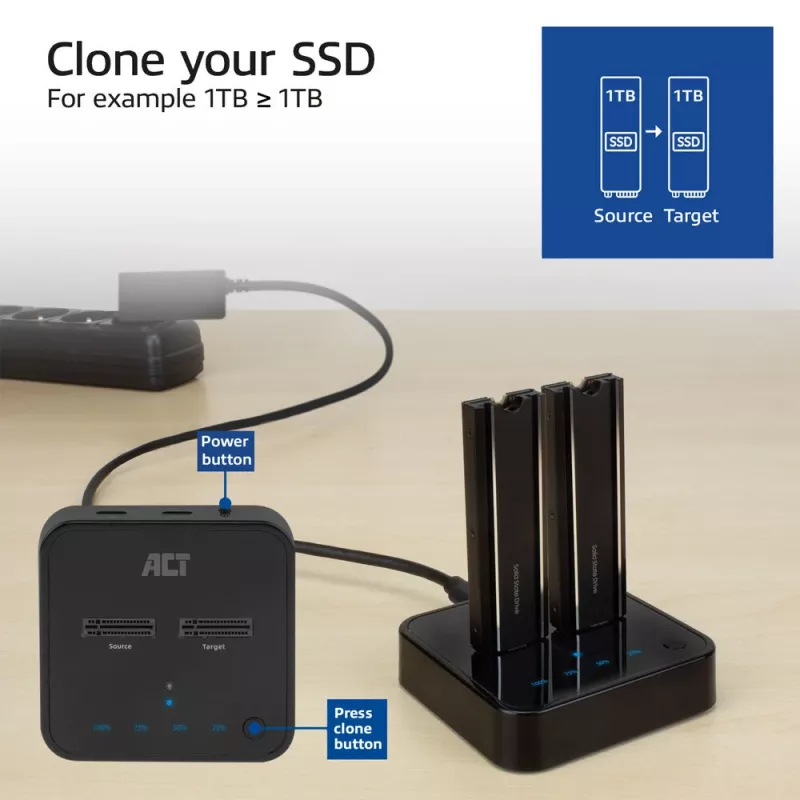

Insert the source and target M.2 NVMe/PCIe SSDs into the two slots, making sure the target drive’s capacity is equal to or greater than the source drive. Connect the supplied power adapter to the dock and press the power button. For offline cloning, press the clone button to start the process; observe the LED indicators to track progress. To access or back up data from the SSDs, connect the dock to your computer using a USB-C cable; the drives will appear as external storage and can be used with standard file management tools.

Recommendations

Ensure the target SSD has equal or greater capacity than the source SSD before cloning. Use the supplied power adapter and a USB-C 3.2 Gen2 connection for optimal performance. If your SSDs have heatsinks, verify they fit within the dock before insertion.
