Fiber panel high density ACT FA2101 96 connections 192 fibers LC singlemode OS2

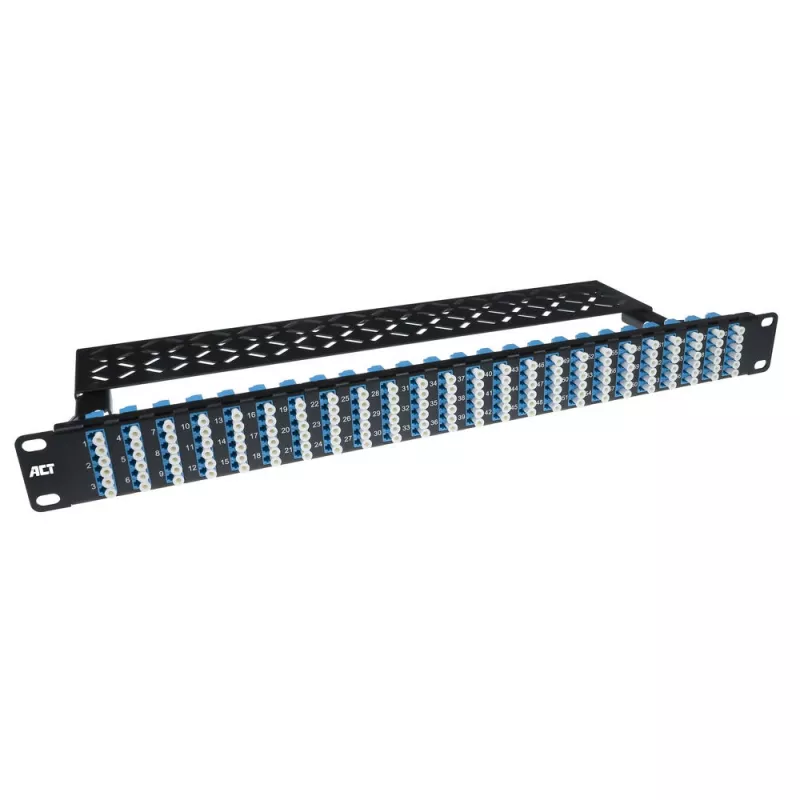

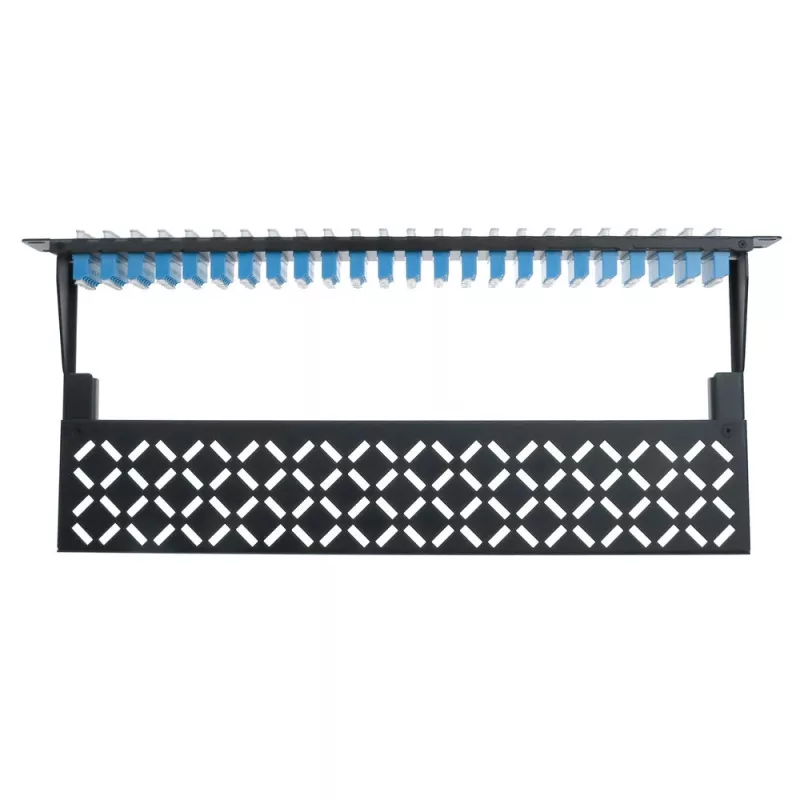

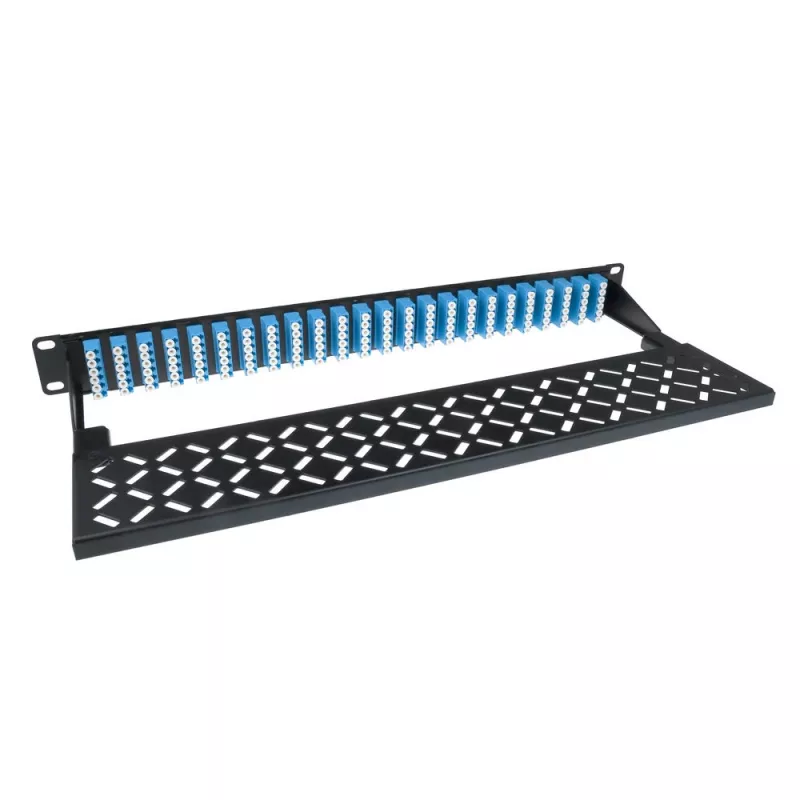

The ACT Fiber Panel FA2101 is a high-density fiber distribution panel designed for compact rack installations. It provides 96 front-facing connections and supports up to 192 fibers with LC singlemode OS2 duplex connectors, delivering organized fiber management in a 1U metal housing. The panel is intended for use in data centers, telecom rooms and enterprise network cabinets where space efficiency and reliable fiber interconnection are required.

Advantages

This panel offers a compact 1U footprint that maximizes rack space while accommodating a large number of fiber connections. Constructed from durable metal, it provides mechanical protection and long-term stability for fiber adapters and patching. The use of LC singlemode OS2 connectivity ensures low-loss optical performance suitable for long-distance transmission. Front-access design and clearly arranged adapter positions support straightforward cable routing and easier maintenance.

Suitable for

Key specifications

How to use

Install the fiber panel into a standard 19-inch rack using the supplied mounting points in a 1U allocated space. Fit LC duplex adapters and connect fiber patch cords to the front-facing ports, ensuring proper alignment and secure engagement of LC connectors. Route incoming trunk fibers to the rear of the panel and splice or prepare pigtails as required to terminate into the LC adapters. Label ports as needed for identification and document the port mapping for future maintenance.

Recommendations

Use appropriate bend-radius protectors and cable ties to avoid excessive stress on fibers. Maintain a clean environment when connecting or disconnecting LC connectors to prevent contamination. For long-term installations, periodically inspect adapter alignment and patch cord condition to ensure consistent optical performance.
