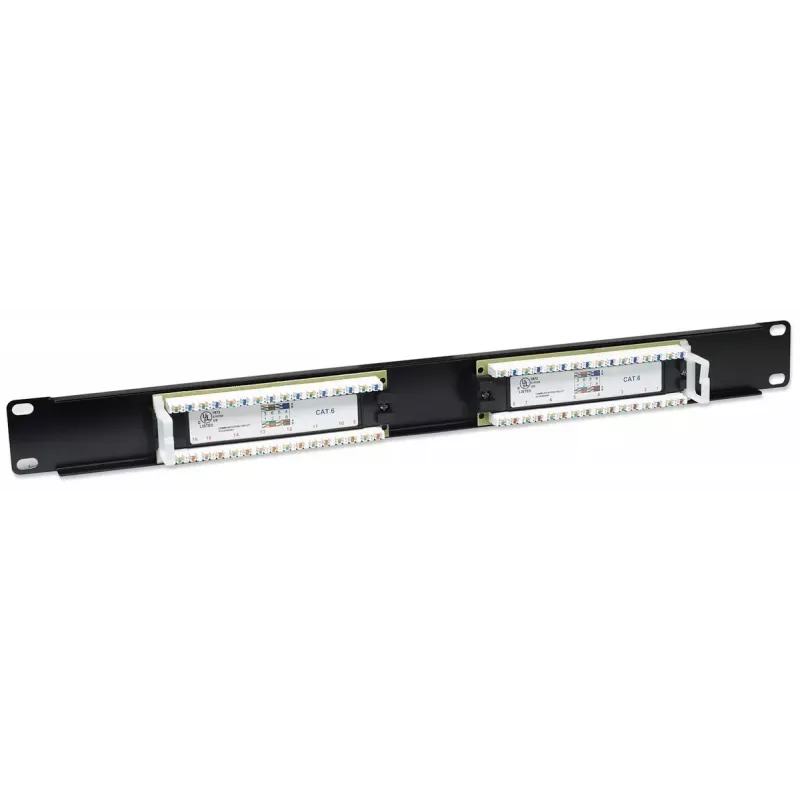

Intellinet Patch Panel, Cat6, UTP, 16-Port, 1U, Black

The Intellinet Patch Panel Cat6 UTP 16-Port 1U in black is a rack-mountable network panel designed to organise and centralise copper Ethernet connections. It supports IEEE 802.3 standards for Fast and Gigabit Ethernet and provides sixteen RJ-45 ports in a 1U, 19"-compatible form factor. The panel is RoHS compliant and UL certified, offering a compact solution for structured cabling with dimensions 482 mm depth, 43 mm width and 48 mm height.

Advantages

This Cat6 UTP patch panel enables quick reassignment of equipment ports and tidy cable management in server rooms and network racks. Its 1U size conserves rack space while the 16-port layout accommodates small to medium installations. Compliance with IEEE 802.3, RoHS and UL standards ensures interoperability, safety and regulatory conformance. The black finish and standard 19" mounting simplify integration into existing rack systems.

Suitable for

• Small and medium office network racks
• Server rooms with structured copper cabling
• Fast Ethernet and Gigabit Ethernet installations
• Patch and cross-connect panels in comms cabinets

Key specifications

• Brand: INTELLINET
• Model / MPN: 519526
• Ports: 16 × RJ-45 (Cat6 UTP)
• Form factor: 1U, 19" rack compatible
• Standards: IEEE 802.3 (Fast/Gigabit Ethernet)
• Certifications: RoHS compliant, UL certified
• Colour: Black
• Dimensions (W×H×D): 43 mm × 48 mm × 482 mm
• Weight: 0.71 kg

How to use

Mount the patch panel into a standard 19" rack occupying 1U of rack space. Terminate Cat6 UTP cables onto the corresponding IDC or punch-down connectors on the rear of the panel following T568A or T568B wiring standards. Plug devices or patch cords into the front RJ-45 ports to connect equipment to your network. Label ports as required to maintain clear documentation of connections.

Recommendations

For best performance, use Cat6-rated patch cords and maintain appropriate bend radii and cable separation from electrical noise sources. Verify wiring scheme consistency (T568A or T568B) across the installation and test each port with a certified cable tester after termination.
