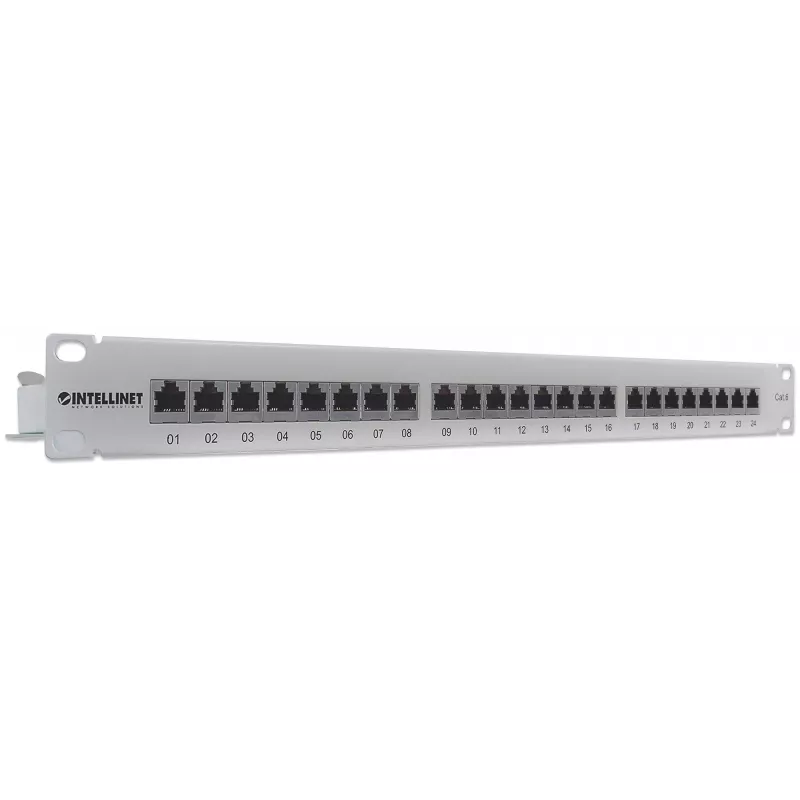

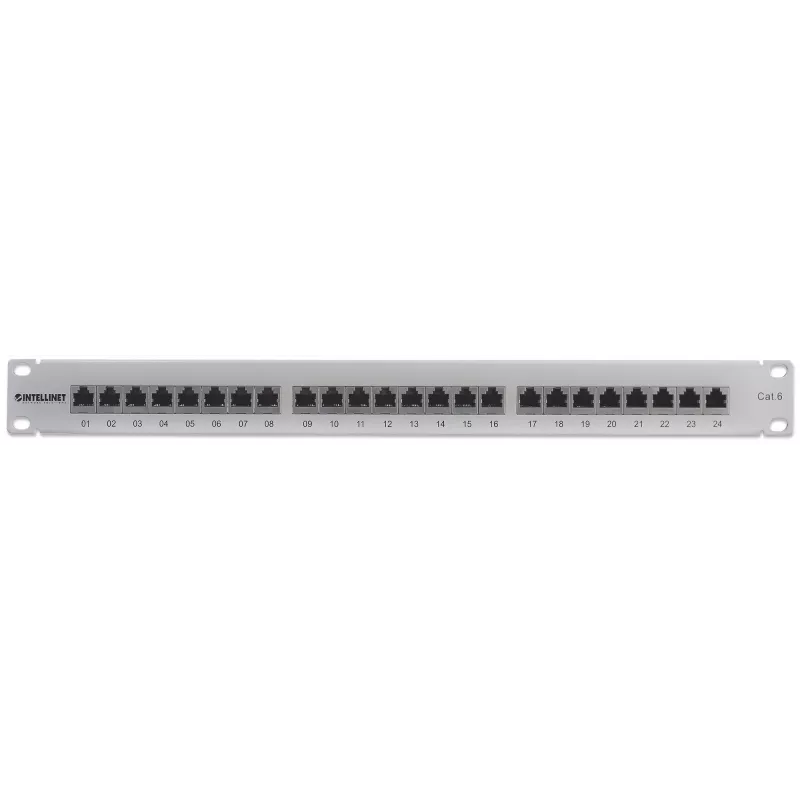

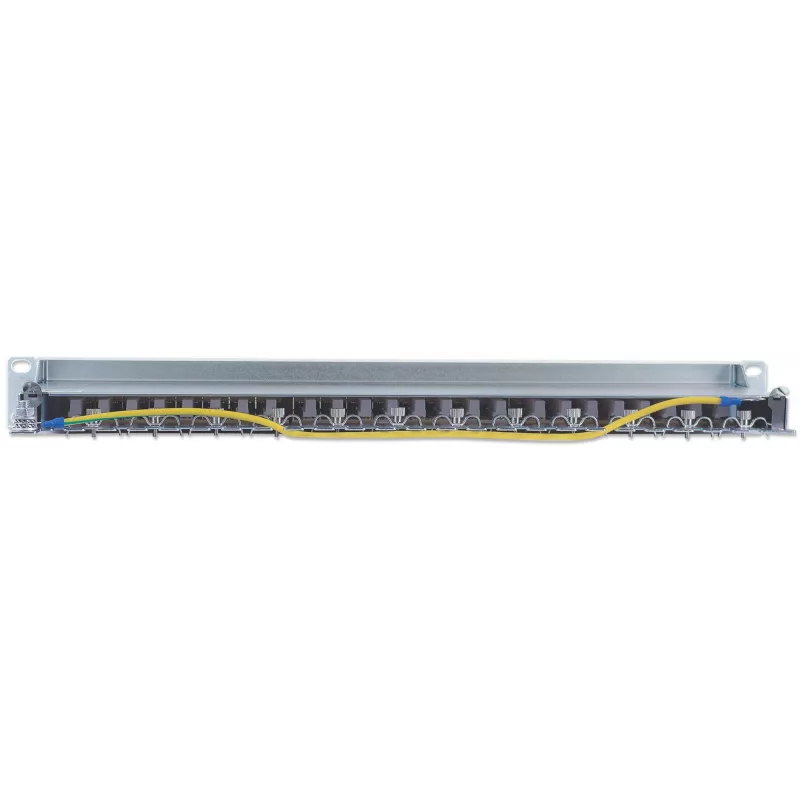

Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey

Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey
R1,582
The backbone of your network is central to your organisation's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Ou... Read More
Stock Out Of StockNo Stock Code 2409038 Brand Intellinet Model 720014 Warranty 2 Years

Shipping & Returns

The backbone of your network is central to your organisation's success. Trust Intellinet Network Solutions to provide Patch Panels that maintain the integrity of your data. The Patch Panel enables you to quickly change the port assignment of any piece of equipment that's attached to your network. Our range of Patch Panels feature varying port densities across a complete range of specifications from Cat5e to Cat6a in both Unshielded and Shielded varieties. All Patch Panels comply with current industry standards and are 19"-rack compliant.

Intellinet Patch Panel, Cat6, FTP, 24-Port, 1U, Shielded, 90° Top-Entry Punch-Down Blocks, Grey. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Connector(s): RJ-45. Mounting: Rack mounting, Rack capacity: 1U, Product colour: Grey. Compliance certificates: CE, RoHS, UL, Certification: CE, UL. Width: 44 mm, Height: 110 mm, Depth: 482 mm

Key Highlights
  • Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts
  • Top-entry punch-down blocks simplify installation
  • Compatible with Krone punch-down tools
  • Supports 24 to 26 AWG stranded and solid wire
  • For use with fully shielded twisted pair (FTP) Cat6 network cable
  • Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications
  • Meets 19" rackmount standards
  • Lifetime Warranty
  • IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
  • Ports quantity: 24
  • Cat6
  • 1U
  • Grey
Specifications
Cable shielding
F/UTP (FTP)
Cable types supported
Cat6
Certification
CE, UL
Compliance certificates
CE, RoHS, UL
Connector contacts plating
Gold
Connector(s)
RJ-45
Depth
482 mm
Ethernet interface type
Fast Ethernet, Gigabit Ethernet
Harmonized System (HS) code
85371098
Height
110 mm
Mounting
Rack mounting
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operating temperature (T-T)
-40 - 70 °C
Ports quantity
24
Product colour
Grey
Rack capacity
1U
Weight
2.16 kg
Width
44 mm

Leaflet

Open Leaflet
