DIGITUS DN-91624S 24-Port Cat6 Shielded Patch Panel, 1U 19 inch Rack Mount, Black

For structured cabling that must handle high-density Gigabit traffic without interference, the DIGITUS DN-91624S stands out with its fully shielded 24-port design and rugged 1.5 mm steel housing. Unlike unshielded panels that leave signals exposed, this Class E panel grounds every port to the chassis, cutting alien crosstalk and EMI in server rooms, industrial floors, and PoE-heavy deployments.

Highlights

• 24 shielded RJ45 ports in a compact 1U 19" form factor, ideal for space-constrained racks
• CAT 6 / Class E performance verified up to 250 MHz, compliant with EN 50173 and ISO/IEC 11801

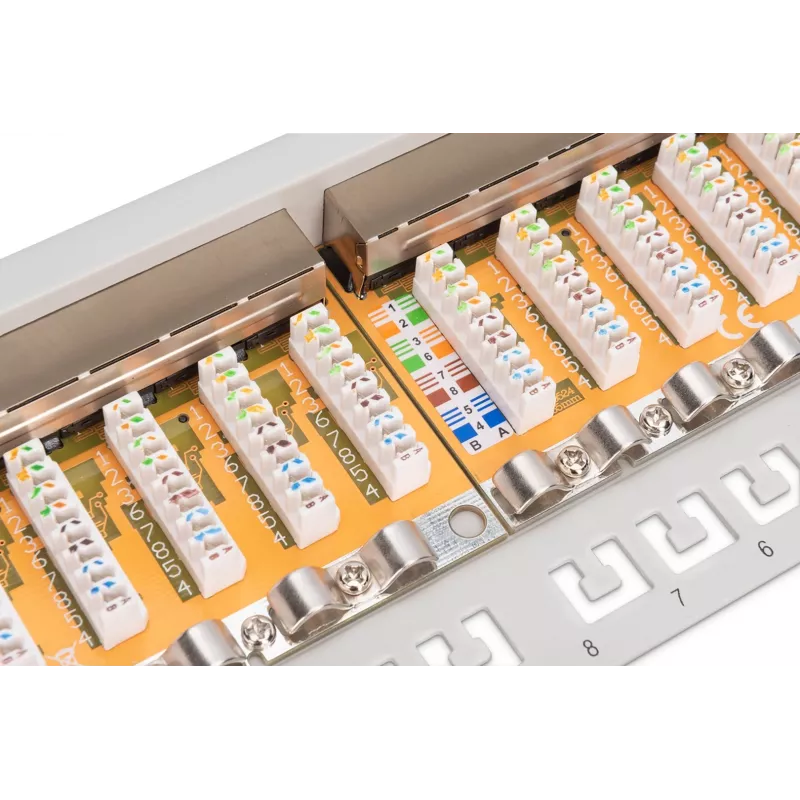

• Color-coded LSA termination strips speed up installation and reduce wiring errors
• Supports IEEE 802.3af and 802.3at PoE, delivering up to 30 W per port for access points and IP cameras
• Gold-plated contacts (3 µm) and phosphor bronze IDC terminals ensure long-term signal integrity
• Central grounding point and shielded metal enclosure provide optimized EMI protection

In daily use

Mount the panel in any standard 19" rack and terminate incoming Cat6 cables on the rear LSA strips using the T568A or T568B color codes. The integrated cable tie shelf keeps bundles tidy, while the robust cold-rolled steel frame withstands repeated insertions—rated for over 750 RJ45 mating cycles. Whether powering VoIP phones or aggregating backbone links, the DN-91624S maintains stable performance from -20 °C to +70 °C.

Full specifications

• Model: DN-91624S
• Category: CAT 6 (Class E), up to 250 MHz
• Ports: 24 × shielded RJ45, front; 24 × LSA IDC, rear
• Form factor: 19" rack mount, 1U height
• Standards: EN 50173, ISO/IEC 11801, TIA/EIA 568 A & B
• PoE support: IEEE 802.3af (PoE) and 802.3at (PoE+)
• Housing material: SPCC 1.5 mm galvanized cold-rolled steel, black (RAL 9005)
• Contact plating: Gold, 3 µm
• Insertion cycles: >750 (RJ45), >200 (LSA)
• Operating temperature: -20 °C to +70 °C
• Dimensions (W × D × H): 482 × 109 × 44 mm
• Weight: 1.56 kg

Final note

A dependable, standards-compliant patch panel that combines shielded performance with installer-friendly features—backed by DIGITUS quality for demanding network environments.
