DIGITUS Patch Panel CAT6 8-ports Shielded Black

DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
DIGITUS Patch Panel CAT6 8-ports Shielded Black
R517
Use in SOHO applications- Simple cable installation possible thanks to color-coded LSA strips- Shielding ensures optimized performance- Robust patch panel with metal housing- Desktop patch panel for the smart home officeThe Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applicati... Read More
Stock 1 Code 116891 Brand DIGITUS Model DN-91608SD Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Use in SOHO applications

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized performance
- Robust patch panel with metal housing
- Desktop patch panel for the smart home office

The Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applications (Smart Office Home Office) The fully shielded RJ45 sockets offer optimum support for your cables with the best performance.

Key Highlights
  • Application areas: Up to 250 MHz, 1GBase-T
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for surface-mounted installations
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Specifications
Cable types supported
Cat6
Connector(s)
RJ-45
Country of origin
China
Harmonized System (HS) code
85371098
Package depth
55 mm
Package volume
2351.25 cm³
Package weight
778 g
Package width
285 mm
Ports quantity
8
Product colour
Black
UK Trade Tariff code
85369010

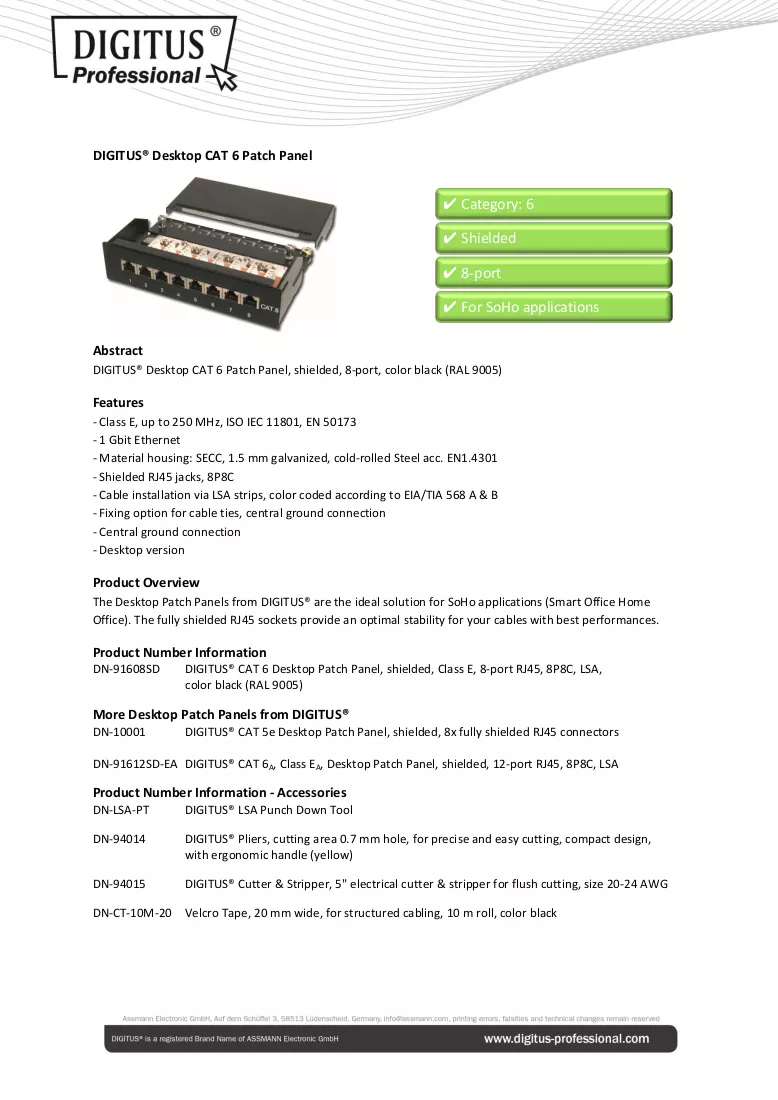

Leaflet

Open Leaflet
