DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035

DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
DIGITUS Patch panel CAT6A EA shielded, 24-port RJ45 dust cover, 8P8C, 0.5U, grey RAL 7035
R1,670
Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network- Slim installation height of only 0.5 U- Up to 48 ports per U possible (2 x 24 port panels)- Dust protection flaps on the RJ45 sockets- 360° shield contacting- Cable clamp for ... Read More
Stock 3 Code 116896 Brand DIGITUS Model DN-91624S-SL-EA-G Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Very space-saving (only 0.5U) - With dust protection caps - Future-oriented standards and high-end quality for your network

- Slim installation height of only 0.5 U
- Up to 48 ports per U possible (2 x 24 port panels)
- Dust protection flaps on the RJ45 sockets
- 360° shield contacting
- Cable clamp for fixing and routing, reclosable
- Quick-release fastener to secure the housing cover

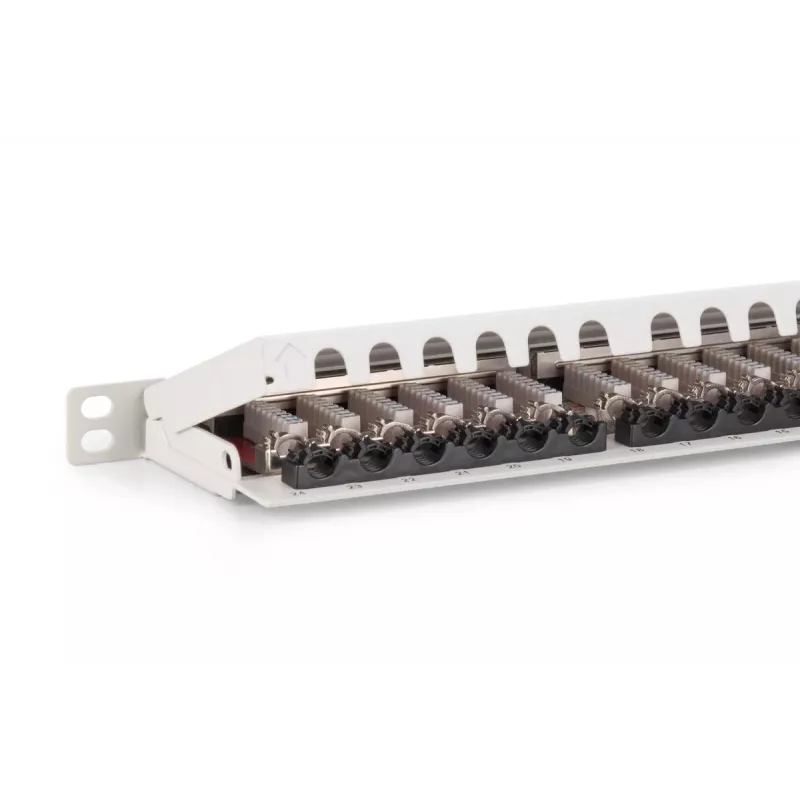

The DIGITUS® 24-port patch panel offers a very high packing density with only 0.5 U. This means that up to 48 ports can be implemented on 1 U with two 0.5 U panels. The patch panel is shielded and equipped with dust protection caps on the RJ45 sockets. The 360° shield contact of the cables ensures the best performance characteristics. The quick-release fastener on the housing ensures easy and tool-free access to the LSA cutting terminals.

Key Highlights
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C

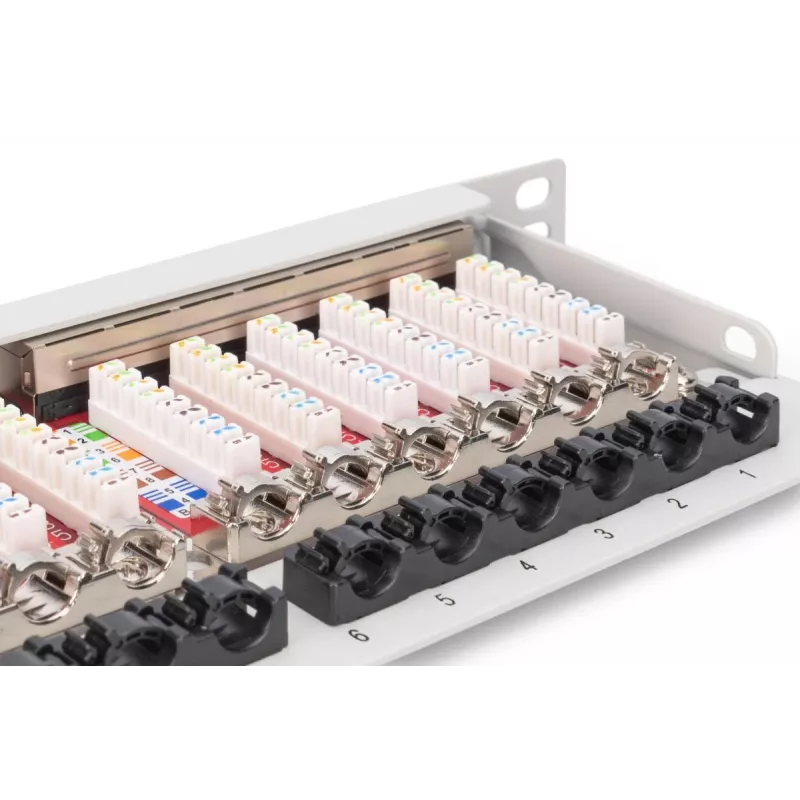

  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Integrated dust protection flap
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
  • HE: 0.5
Specifications
Anti-dust plug
Yes
Cable types supported
Cat6a
Connector contacts plating
Gold
Country of origin
China
Harmonized System (HS) code
85371098
Material
Steel
Mounting
Rack mounting
Operating temperature (T-T)
-20 - 70 °C
Package depth
130 mm
Package volume
2343.25 cm³
Package weight
980 g
Package width
515 mm
Plug/connector retention force
30 N
Ports quantity
24
Product colour
Grey
Rack capacity
0.5U
UK Trade Tariff code
85369010
