DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483

DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
DIGITUS Patch Panel, CAT6A shielded, 1U, 24-port, 8P8C, bl RAL 9005, 483
R1,744
Future-oriented standards and high-end quality for your network.- Sturdy patch panel with metal housing- Complete shielding of housing and shield contact- Cable installation by IDC-strips- Central grounding connector- Dielectric strength up to 1500 VDC (contact/ground)- Metal-coated (electrically co... Read More
Stock 3 Code 116799 Brand DIGITUS Model DN-91624S-EA Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network.

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
- Metal-coated (electrically conductive) cable fixation for grounding the cable shield

The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.

Key Highlights
  • Transmission characteristics: Category 6A, Class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting
  • RJ45 sockets, 8P8C

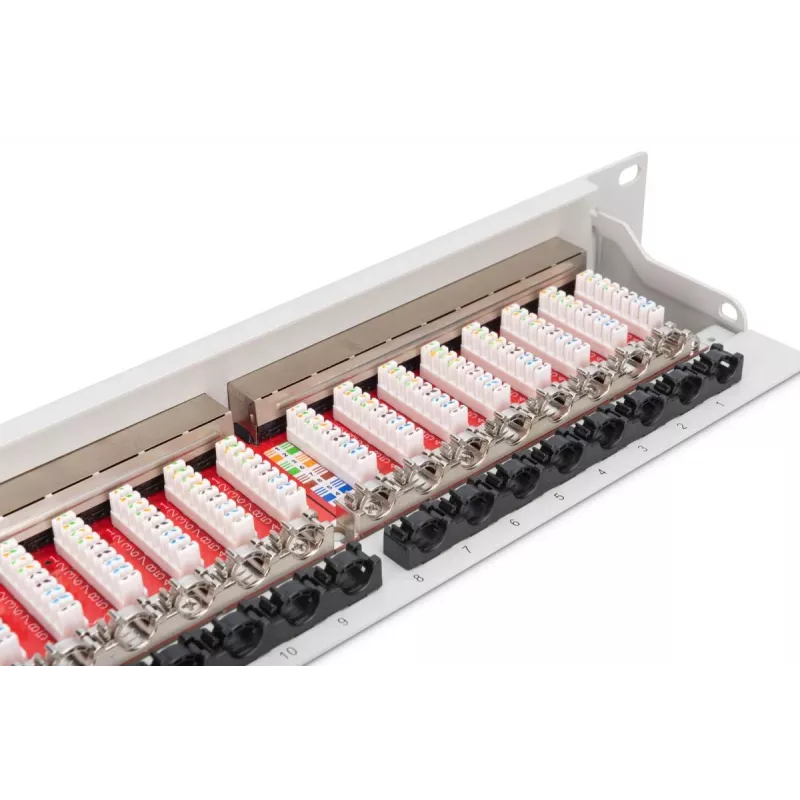

  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixation by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Integrated dust protection flaps
  • Plastic labeling field
  • CAT 6A Class EA for up to 500 MHz
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Specifications
Cable types supported
Cat6a
Country of origin
China
Depth
1.5 mm
Ethernet interface type
Gigabit Ethernet
Harmonized System (HS) code
85371098
Mounting
Rack mounting
Package depth
80 mm
Package volume
6944 cm³
Package weight
1.81 kg
Package width
560 mm
Ports quantity
24
Product colour
Grey
Rack capacity
1U
UK Trade Tariff code
85369010
