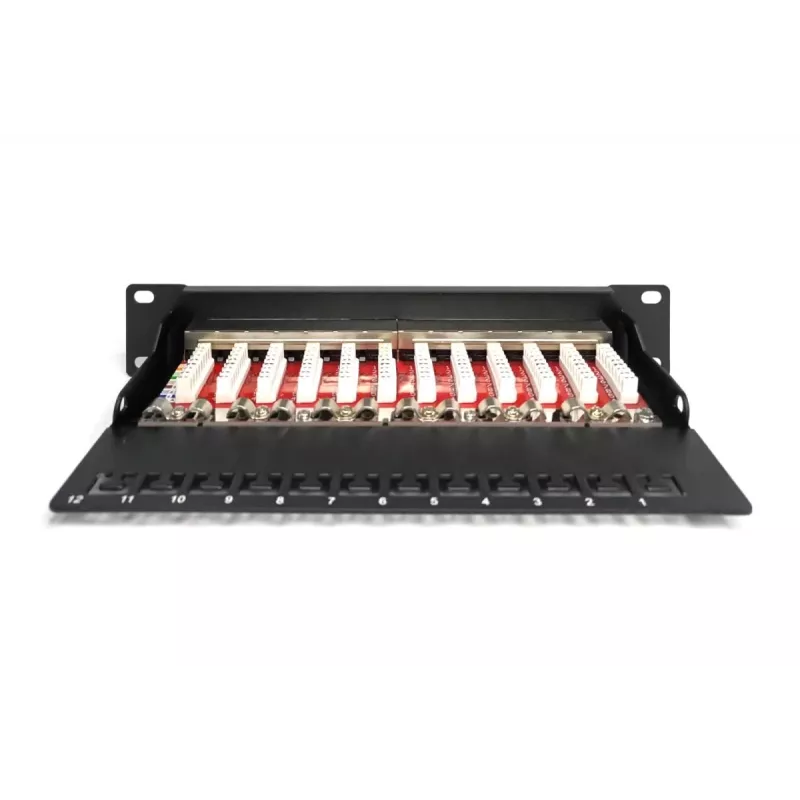

DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005

DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
DIGITUS CAT6A Patch Panel, shielded,12-Port label field, 1U, 10in rack mount, black RAL 9005
R760
Future-orientated standards and high-end quality for your network.- Sturdy patch panel with metal housing- Complete shielding of housing and shield contact- Cable installation by IDC-strips- Central grounding connector- Dielectric strength up to 1500 VDC (contact/ground)The CAT 6A patch panel is ava... Read More
Stock 29 Code 116897 Brand DIGITUS Model DN-91612S-EA Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 1
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-orientated standards and high-end quality for your network.

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact

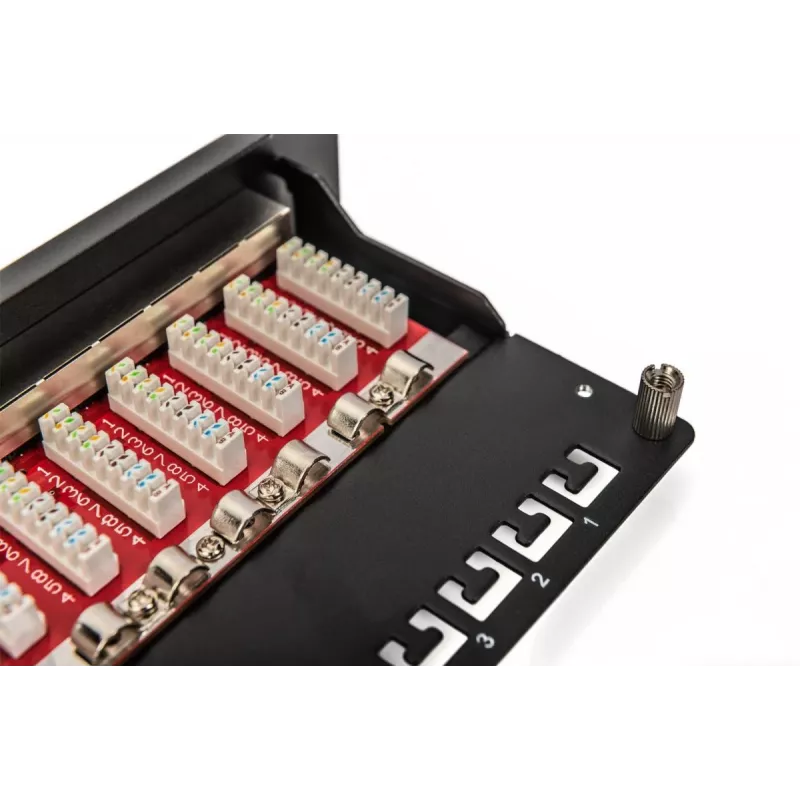

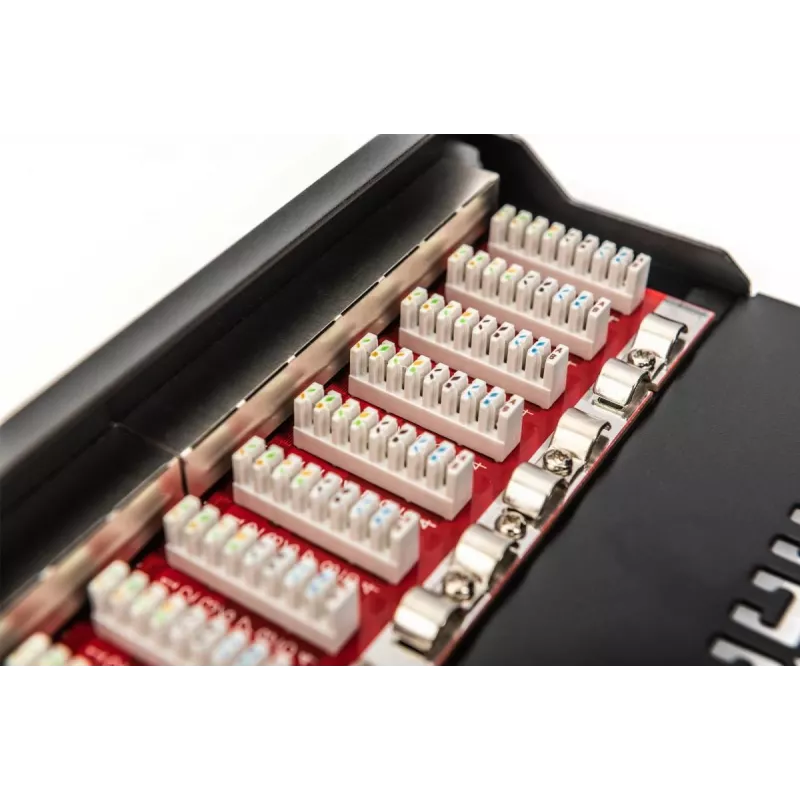

- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)

The CAT 6A patch panel is available in this 12 port version. It offers sturdy design by its 1.5mm galvanic cold rolled steel. Perfect for 10" cabinet mounting. The fully shielded RJ45 sockets provide an optimal stability for your cables with best performances. The patch panel applies to (IEEE 802.3at/af) PoE+ standard. It is shielded electromagnetically and offers lost and interruption free forwarding of your data in your network. The 360 degree shielding at the contact points makes sure every single point of consilidation is shielded perfectly.

Key Highlights
  • Transmission properties: Category 6A, Class EA
  • Area of application: Up to 500 MHz, 10GBase-T
  • Norms: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • Suitable for surface mount installation
  • RJ45 female, 12P12C
  • Cable installation by IDC
  • Cable fixing with cable ties
  • Central ground connection
  • 360° shield coverage
  • Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 female material: ABS UL 94V-0
  • RJ45 female contact: Tinned phosphor bronze, 0.5 μ gold-plated contact
  • RJ45 shielding: Tinned bronze
  • IDC termination clamp: Krone IDC+, UL 94V-2, zinc plated phosphor bronze
  • Conductor plate: FR4, UL 94V-0
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Retention strength: 7.7 kg between jack and plug
  • Operation temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • IDC wire size: 22 – 26 AWG solid and stranded conductor
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 MilliOhm
  • Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
  • Ground wire: Not included
Specifications
AWG wire size
22/26
Cable types supported
Cat6a
Connector(s)
RJ-45
Country of origin
China
Ethernet interface type
10 Gigabit Ethernet
Harmonized System (HS) code
85371098
Material
Metal
Mounting
Rack mounting
Package depth
260 mm
Package volume
1872 cm³
Package weight
890 g
Package width
60 mm
Ports quantity
12
Product colour
Black
Rack capacity
1U
UK Trade Tariff code
85369010
