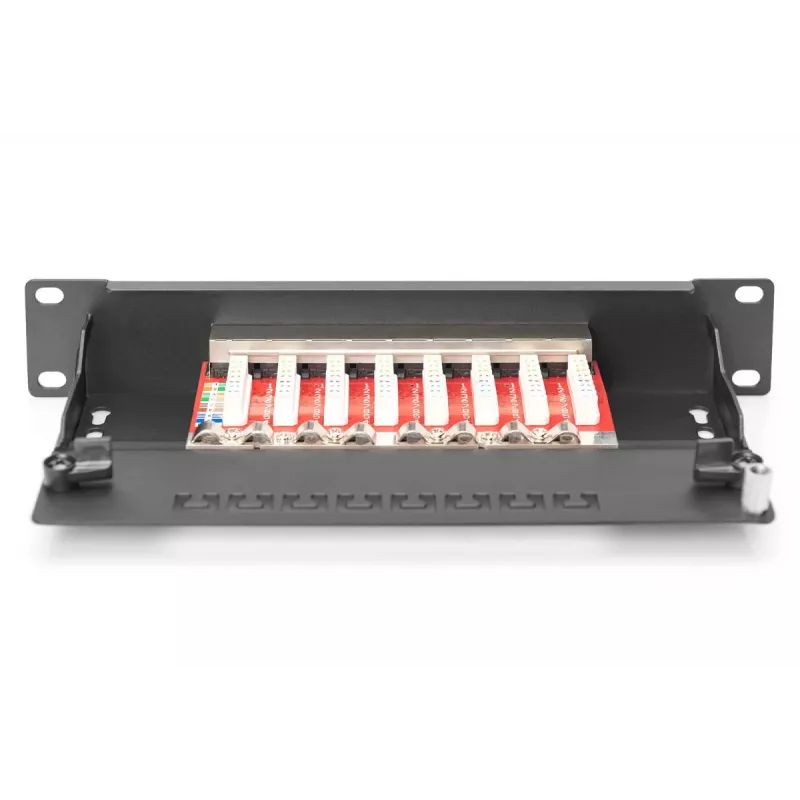

DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005

DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
DIGITUS Patch Panel CAT6A shielded,8-Port 1U, 10in rack mount, black RAL 9005
R777
Future-oriented standards and high-end quality for your network- Simple cable installation possible thanks to color-coded LSA strips- Shielding ensures optimized measured power values- Compact 10" design with 8x RJ45 sockets- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+- Wall mounting p... Read More
Stock 21 Code 114291 Brand DIGITUS Model DN-91608S-EA Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Future-oriented standards and high-end quality for your network

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized measured power values
- Compact 10" design with 8x RJ45 sockets
- PoE-capable according to: IEEE 802.3af, IEEE 802.3at PoE+
- Wall mounting possible

The CAT 6A patch panels for 254 mm (10") rack mounting from DIGITUS® are manufactured according to Link Performance Class E, for up to 500 MHz, ISO/IEC 11801 and EN 50173. Cables are installed via the LSA strips, which are color-coded according to EIA/TIA 568B. The housing is made of galvanized cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110. It complies with the 802.3at PoE+ and the 802.3af PoE standard.

Key Highlights
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
  • General properties:
  • Suitable for 254 mm (10") cabinet mounting
  • RJ45 sockets, 8P8C
  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B
  • Cable fixing by means of screw fastening
  • Central earthing connection
  • 360° shield contacting
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting terminal: LSA+, UL 94V-2, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors
  • Insulation resistance: > 500 Mohm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
Specifications
AWG wire size
22/26
Cable types supported
Cat6a
Cabling technology
10GBase-T
Certification
UL
Connector(s)
RJ-45
Country of origin
China
Ethernet interface type
10 Gigabit Ethernet
Harmonized System (HS) code
85371098
Maximum data transfer rate
10000 Mbit/s
Mounting
Rack mounting
Operating temperature (T-T)
-20 - 70 °C
Package depth
260 mm
Package height
120 mm
Package type
Box
Package volume
1872 cm³
Package weight
890 g
Package width
60 mm
Ports quantity
8
Product colour
Black
Rack capacity
1U
UK Trade Tariff code
85369010
Weight
820 g

Leaflet

Open Leaflet
