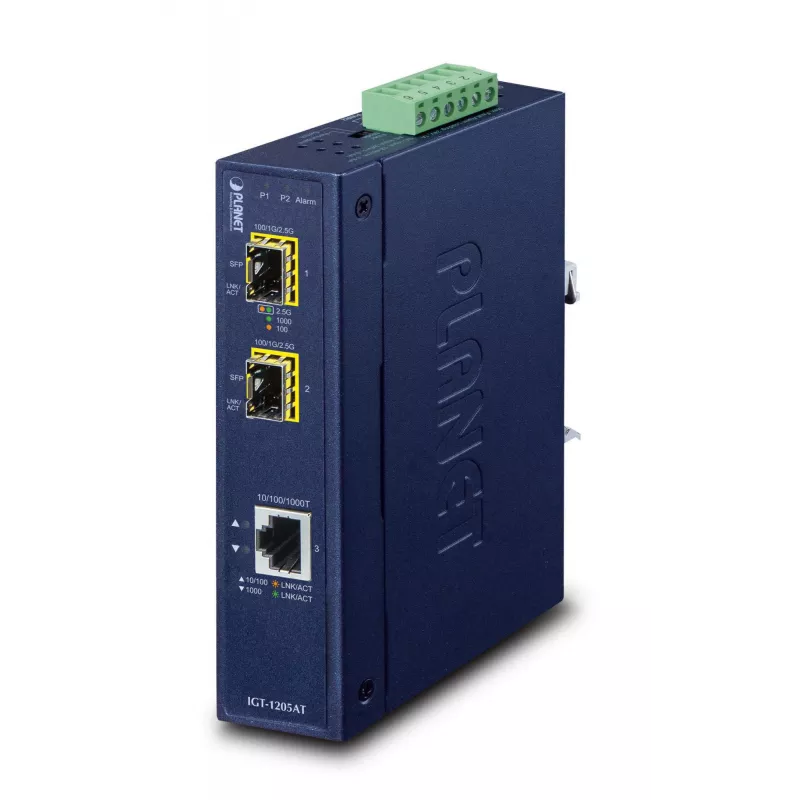

Network media converter PLANET IGT-1205AT — Gigabit SFP 2-fiber, 1x RJ-45, 10/100/1000 Mbps, 12–48V, DIN-rail, IP30

PLANET IGT-1205AT is an industrial Gigabit media converter designed for extending Ethernet networks over fiber in harsh environments. The device offers one 10/100/1000BASE-T RJ45 copper port and two SFP fiber interfaces supporting 100/1000/2500BASE-X transceivers, housed in an IP30 metal case with redundant power inputs and operating temperature range from -40 to 75 °C.

Advantages

The IGT-1205AT delivers non-blocking, wire-speed performance and flexible fiber uplink options that extend link distance from short-reach multimode links up to tens of kilometers on single-mode fiber. Its dual SFP ports can be configured for either a 3-port switch operation or 2-port fiber redundant mode, providing store-and-forward switching or rapid fiber redundancy. The rugged IP30 case, wide operating temperature and multiple mounting options support deployment in industrial, roadside and surveillance installations. Dual power inputs and wide voltage support increase reliability in critical applications.

Suitable for

• Industrial Ethernet extension between buildings and control rooms
• IP surveillance system backbone links
• Factory automation and process-control networks
• Roadside cabinets and traffic control systems
• Any space-limited installations requiring DIN-rail or wall mounting

Key specifications

• Ports: 1 × 10/100/1000BASE-T RJ45, 2 × SFP (100/1000/2500BASE-X compatible)
• Maximum data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Fiber distance: multimode up to 300 m (Fast/Gigabit dependent), single-mode up to 20/40/80/120 km depending on transceiver
• Operating temperature: -40 to 75 °C
• Power: dual DC inputs, wide voltage support (12–48 V DC or 24 V AC), typical power 4.8 W
• Case: IP30 metal housing; weight approx. 0.412 kg

How to use

Install the IGT-1205AT on a DIN rail or mount it to a wall in a ventilated enclosure. Insert appropriate SFP transceivers into the two fiber slots according to the required distance and fiber type, then connect the copper RJ45 port to the local Ethernet device. Use the built-in DIP switch to select either Ethernet switch mode (store-and-forward) or 2-port fiber redundant mode for automatic failover. Connect redundant power inputs to separate power sources to ensure continuous operation.

Recommendations

For reliable long-distance links, choose single-mode SFPs matched to the required span and verify link budget. In critical applications enable the fiber redundant mode and use separate power sources for the two DC inputs. Ensure proper grounding and install the device in a location within its specified temperature range.
