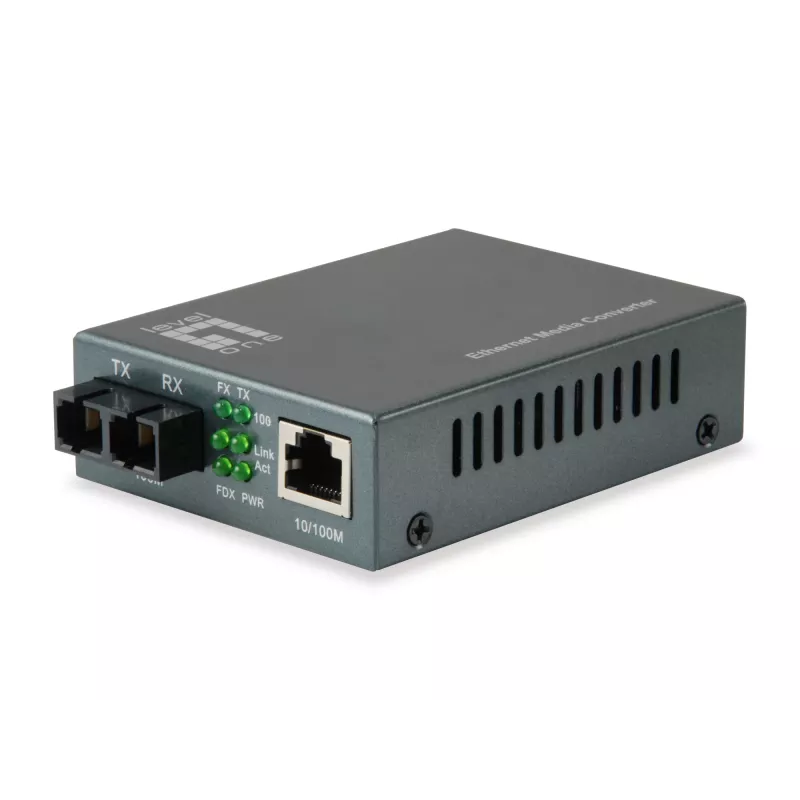

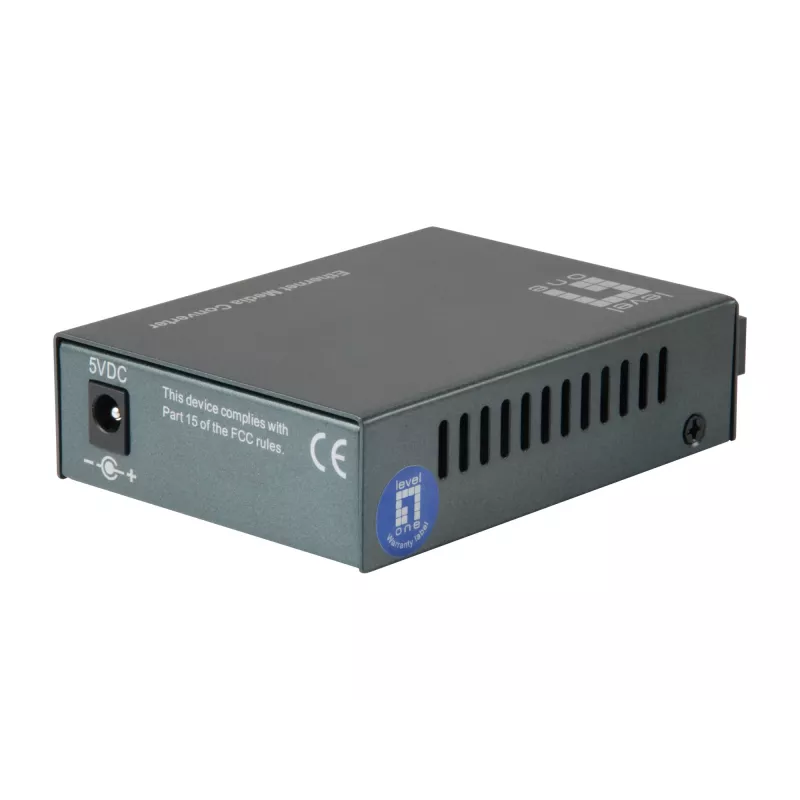

LevelOne RJ45 to SC Fast Ethernet Media Converter, Single-Mode Fiber, 1550nm, 80km

The FVT-1105 SMF SC media converter converts network signals between copper and single-mode fiber-optic networks. It features a 10/100Base-TX RJ-45 port with auto-sensing for 10Base-T and 100Base-TX and supports both full-duplex and half-duplex operation. When used with single-mode fiber cabling, the converter enables link extension up to 80 km. The unit can operate standalone or as a slide-in module for the CHV-2000 19” converter chassis, which holds up to 14 modules for centralized installation.

Advantages

The FVT-1105 provides seamless copper-to-fiber conversion with automatic speed negotiation and duplex support, allowing integration of existing Ethernet equipment into long-distance fiber links. Single-mode support and an 80 km reach make it suitable for extended backbone or campus connections. Compatibility with the CHV-2000 chassis simplifies rack-mounted deployment and cable management in a network closet.

Key specifications

• Media: copper (RJ-45) and single-mode fiber (SC)
• Ethernet port: 10/100Base-TX RJ-45
• Auto-sensing: 10Base-T and 100Base-TX
• Duplex: full-duplex and half-duplex support
• Maximum fiber reach: up to 80 km (single-mode)
• Mounting: standalone or slide-in module for CHV-2000 19” chassis (up to 14 units)

How to use

Connect the RJ-45 port to the copper Ethernet device and the SC connector to single-mode fiber. Ensure fiber transceivers and cable meet single-mode specifications for long-distance links. Configure connected switches or devices to match speed and duplex if required, or allow the converter to auto-negotiate. For rack installation, slide the module into an available slot in the CHV-2000 chassis and secure according to the chassis instructions.
