DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km

DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
DIGITUS Multi/Singlemode Media Converter Gigabit Wavel: 850nm 1310nm 20km
R1,475
The perfect converter solution for optical data transmission- Easy conversion between multimode and singlemode fiber optic- Fast migration for long distances- Range of up to 20kmThe media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now o... Read More
Stock 80 Code 114255 Brand DIGITUS Model DN-82124 Warranty 2 Years

Shipping & Returns

Estimated delivery Thursday, October 8
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The perfect converter solution for optical data transmission

- Easy conversion between multimode and singlemode fiber optic
- Fast migration for long distances
- Range of up to 20km

The media converters from DIGITUS® are an optimal solution for the migration of copper and fiber optic signals. From now on, you can access the fiber optic technology and transmit fiber optic signals over several kilometers without having to replace your entire network cabling. With our comprehensive range of products, you can respond to your individual needs. The intuitive operation guarantees a quick and easy installation. Many years of experience and a diverse range of services make DIGITUS® a reliable partner for your network technology.

Key Highlights
  • Converts between single & multimode fiber optic
  • 1000Base-SX SC connector, multimode dual fiber
  • 1000Base-SX SC connector, singlemode dual fiber
  • Wavelength: 850nm (multimode), 1310nm (singlemode)
  • Multimode range of up to 0.5km
  • Singlemode range of up to 20km

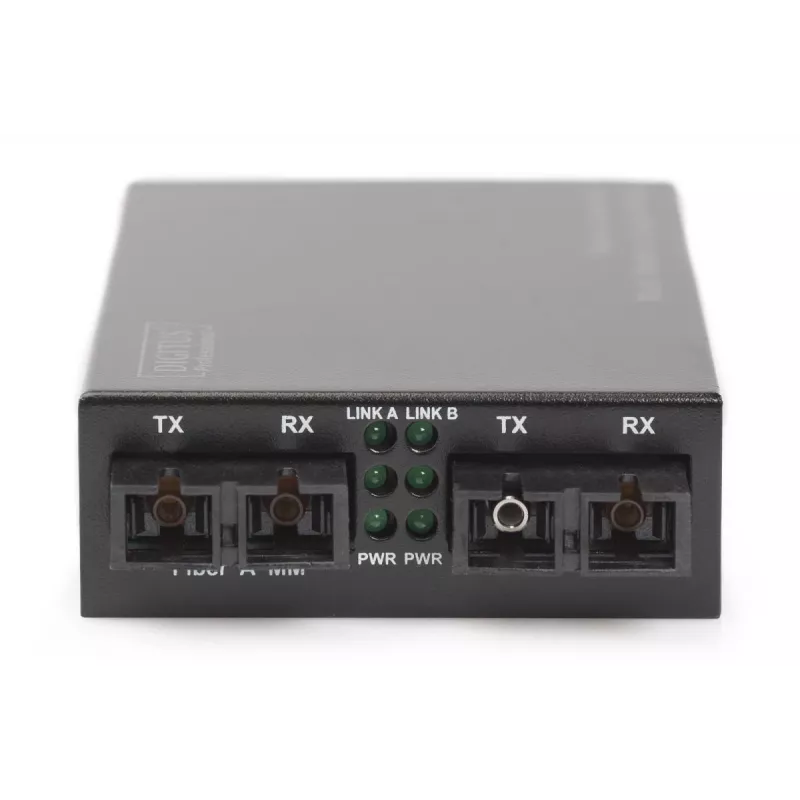

  • Diagnostic LEDs for status and activity monitoring
  • Suitable for 50/125μm, 62.5/125μm, and 100/140μm fiber optic cables (multimode)
  • Suitable for 8.3/125µm, 8.7/125µm, 9/125µm, and 10/125µm fiber optic cables (singlemode)
  • Operating temperature: -10 ~ 55 °C
  • Standalone converter with external power supply unit
  • Input voltage: 5V DC
  • Max. current consumption: 1 A
  • Power consumption: 3.5W
  • Dimensions (L x W x H): 95mm x 70mm x 26mm
Specifications
AC adapter included
Yes
Connectivity technology
Wired
Converter input interface
1000Base-SX
Converter output interface
1000Base-SX
Country of origin
China
Data transfer rate
1000 Mbit/s
DC-in jack
Yes
Depth
40 mm
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
1000 Mbit/s
External power adapter
Yes
Fiber cable diameters supported (core/cladding)
8.3/125,8.7/125,9/125,10/125,50/125,62.5/125,100/140 µm
Fiber ethernet cabling technology
1000BASE-SX
Fiber mode structure
Single-mode, Multi-mode
Fiber optic connector
SC
Fiber ports quantity
2
Harmonized System (HS) code
85176990
Height
26 mm
Input current
1 A
Input voltage
5 V
Internal
No
LED indicators
Activity, Link, Power, Status
Master (outer) case gross weight
7 kg
Master (outer) case height
254 mm
Master (outer) case length
550 mm
Master (outer) case volume
55041.8 cm³
Master (outer) case width
394 mm
Maximum data transfer rate
1000 Mbit/s
Maximum transfer distance
20000 m
Operating temperature (T-T)
-10 - 55 °C
Package depth
250 mm
Package height
55 mm
Package volume
1787.5 cm³
Package weight
350 g
Package width
130 mm
Power consumption (typical)
3.5 W
Power over Ethernet (PoE)
No
Product colour
Black
Products per master (outer) case
20 pc(s)
Quick installation guide
Yes
UK Trade Tariff code
85176200
Wavelength
1310 nm
Weight
300 g
Width
95 mm

Leaflet

Open Leaflet

Document

Open Document
