DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km

DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
DIGITUS Media Converter, Multimode 10/100Base-TX to 100Base-FX, Incl. PSU SC connector, Up to 2km
R861
The perfect converter solution for various fiber media- Distance up to 2km- Sends data in high quality and additionally provides excellent reliability- Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standardsThe Media Converters from DIGITUS are the ideal solution for the migration ... Read More
Stock 28 Code 350437 Brand DIGITUS Model DN-82020-1 Warranty 2 Years

Shipping & Returns

Estimated delivery Friday, October 2
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The perfect converter solution for various fiber media

- Distance up to 2km
- Sends data in high quality and additionally provides excellent reliability
- Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards

The Media Converters from DIGITUS are the ideal solution for the migration of Copper and Fiber Network Signals. From now on, you are able to access the Fiber Technology and transfer network signals over several kilometers without renewing your whole Network Infrastructure. The huge variety of Products fulfil your individual needs. The intiutive operation guarantees a quick and easy Installation. The Link Fault Pass Through function offers a no-fear-networking. Your Network Administrator will be able to find and solve Network problems easily. Years of Experience and a wide range of products lets DIGITUS become a reliable Partner for your Network.

Key Highlights
  • Transforms wire based network media to fiber optic
  • High quality and excellent reliability
  • 10/100Base-TX to 100Base-FX
  • Connectors: 1x RJ45, 1x SC duplex
  • Distance: up to 2km
  • Wavelength: 1310nm
  • Multimode dual fiber
  • Automatic cable detection - auto MDI / MDI-X function
  • Auto-negotiation of full- and half-duplex

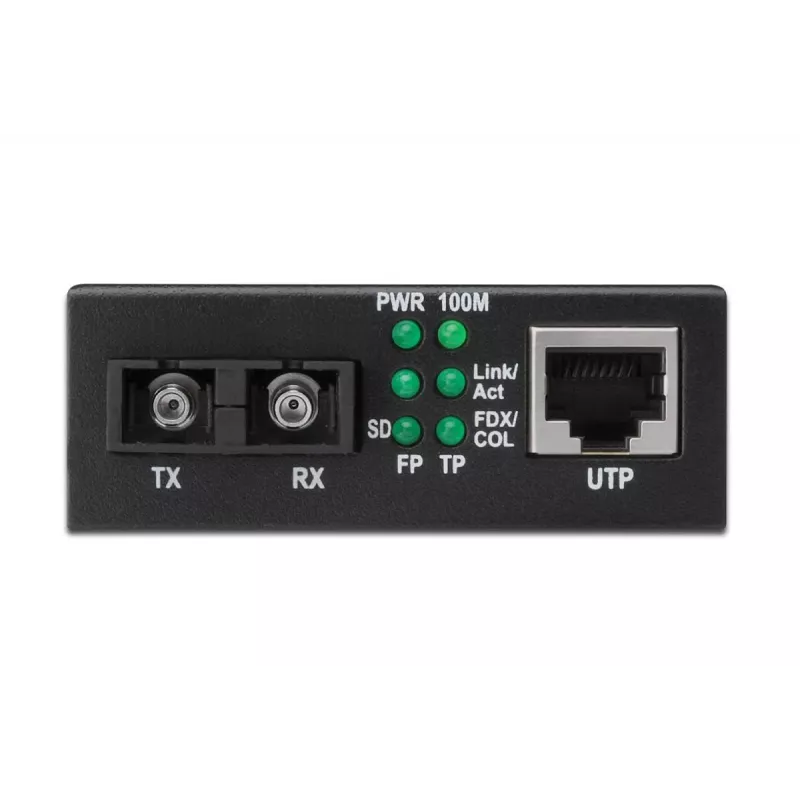

  • Diagnostic and monitoring LEDs for the status of power, link and act of the ports
  • Link Fault Pass Through (LFP) function for easier network maintenance
  • Suitable for 50/125µm and 62.5/125µm Fiber Cables
  • Transmission power: minimum -22 dBm, maximum -12 dBm
  • Sensitivity receiving power: minimum -30 dBm
  • Supported Standards: IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet
  • 128kB data buffer
  • Operating temperature: 0 to 55°C
  • Dimensions (L x W x H): 95mm x 70mm x 26mm
  • Weight: 200g
  • Standalone Converter with external power supply
  • Input Supply Voltage: 5V DC
  • Max. Current: 800mA
  • Power Consumption: 2.5W
  • Extending LAN segments over multi-mode fiber up to 2000 m
  • Connecting copper Ethernet devices to fiber backbone links
  • Small office or branch installations requiring 100 Mbit/s links
  • Network maintenance and fault isolation using LFPT
  • Model: Digitus DN-82020-1
  • Maximum data transfer rate: 100 Mbit/s (Fast Ethernet)
  • Ethernet port: 1 × 100Base-TX (RJ-45), supports 10/100 Mbit/s
  • Fiber port: 1 × 100Base-FX (SC connector), multi-mode, 1310 nm
  • Maximum transfer distance: 2000 m
  • Power input: 5 V, power consumption: 2.5 W
  • LEDs: activity, link, status
  • Colour: Black; Weight: 0.2 kg
Specifications
Auto MDI/MDI-X
Yes
Buffer size
128 KB
Certification
FCC, CE.
Connectivity technology
Wired
Converter input interface
100Base-TX
Converter output interface
100Base-FX
Country of origin
China
DC-in jack
Yes
Depth
70 mm
Duplex system
Full, Half
Ethernet interface type
Fast Ethernet
Ethernet LAN (RJ-45) ports
1
Ethernet LAN data rates
10,100 Mbit/s
External power adapter
Yes
Fiber cable diameters supported (core/cladding)
50/125,62.5/125 µm
Fiber mode structure
Multi-mode
Fiber optic connector
SC
Fiber ports quantity
1
Harmonized System (HS) code
85176990
Height
26 mm
Input current
0.8 A
Input voltage
5 V
Internal
No
LED indicators
Activity, Link, Status
Maximum data transfer rate
100 Mbit/s
Maximum transfer distance
2000 m
Networking standards
IEEE 802.3, IEEE 802.3u
Operating temperature (T-T)
0 - 55 °C
Package depth
60 mm
Package volume
2086.56 cm³
Package weight
485 g
Package width
216 mm
Power consumption (typical)
2.5 W
Power over Ethernet (PoE)
No
Product colour
Black
Rx power (min)
-30 dBmW
Transmission distance (max)
2 km
Tx power (max)
-12 dBmW
Tx power (min)
-22 dBmW
UK Trade Tariff code
85176200
Wavelength
1310 nm
Weight
200 g
Width
95 mm
